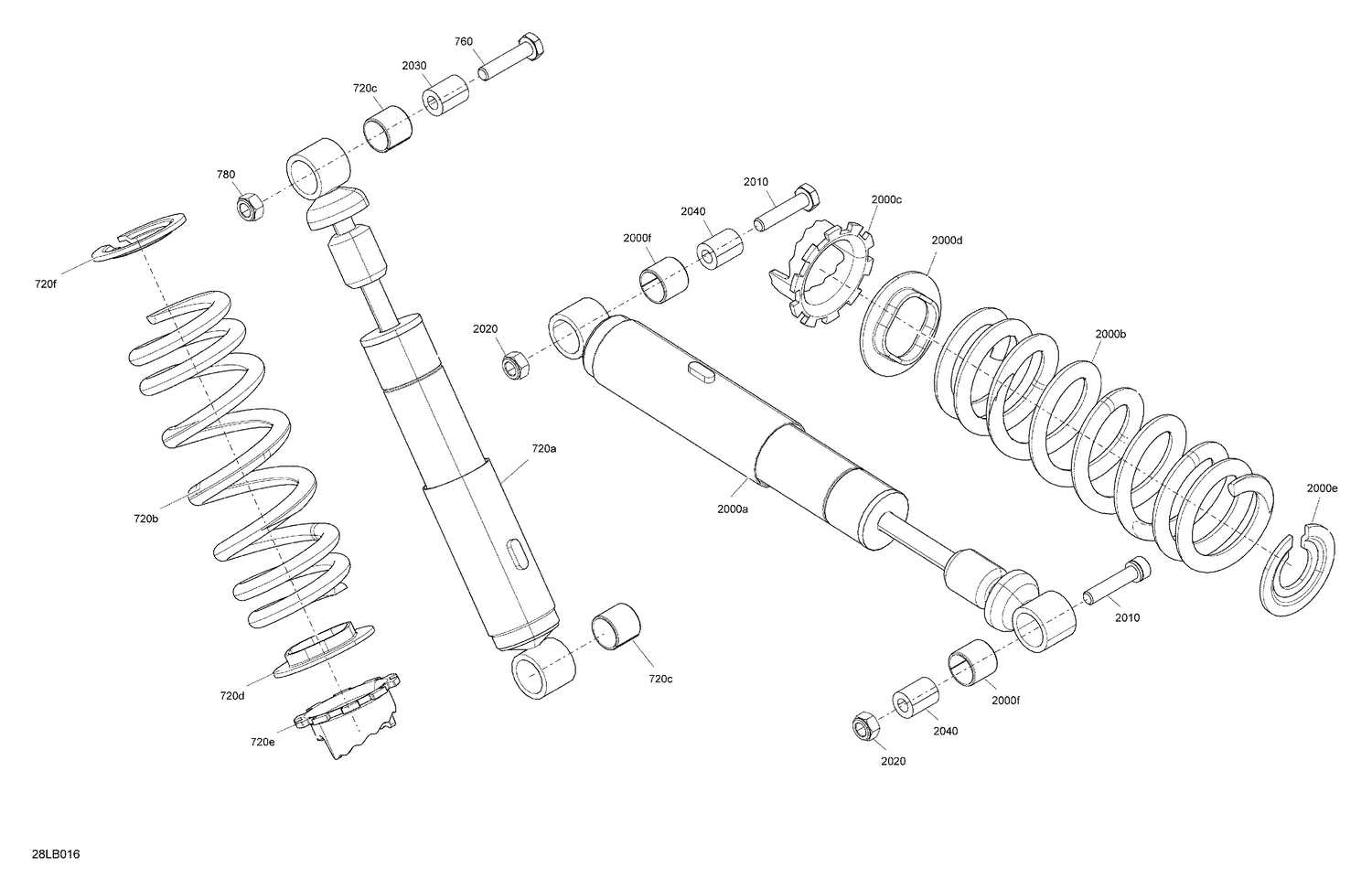

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 720a | 503195569 | Center Shock |
| 720b | 503193294 | Spring 220 MM-40 N/MM |
| 720c | 503195134 | Glide Bearing |
| 720d | 503195685 | Spacer |
| 720e | 230078 | Adjusting Cam |
| 720f | 503196528 | Stopper Spring This part replaces 503194922. |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 2000a | 503195571 | Rear Shock |
| 2000b | 503195567 | Black, Spring 280 MM-45 N/MM |
| 2000c | 230078 | Adjusting Cam |
| 2000d | 503195685 | Spacer |
| 2000e | 503196528 | Stopper Spring This part replaces 503194922. |
| 2000f | 503195134 | Glide Bearing |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
