Parts Catalog

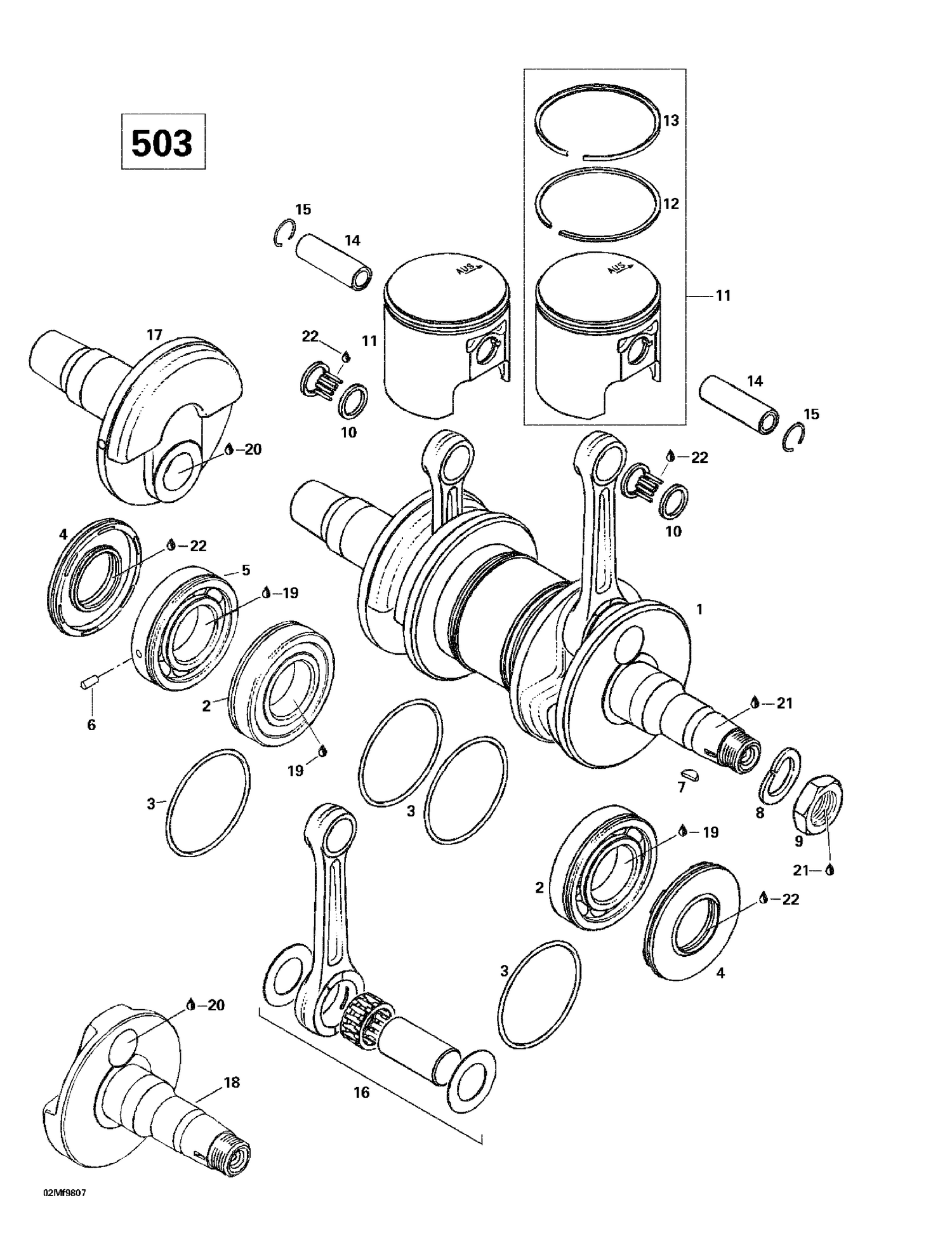

01- Crankshaft And Pistons (503)

Parts (24)

Ref	Part Number	Description
2	420832584	Bearing_Ball This part replaces 420832231.
3	293300022	O-Ring, 64 mm X 2 mm This part replaces 420250165.
4	420831952	Oil Seal This part replaces 420831950.
6	420929972	Dowel Pin
7	420246055	Woodruff Key
8	420945759	Lock Washer, 22 mm
9	420842239	Hex. Nut, M22 X 1.5 This part replaces 420842230.
10	420832320	Needle Bearing
12	420915850	RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
13	420215235	Semi-Trapez Ring 72.00 mm
14	420916186	GUDGEON PIN - Call your local BRP dealership
15	420945735	Piston Circlip
16	420994564	Crankshaft Repair Kit
17	420818242	Half Crankshaft PTO
18	420819020	CRANKSHAFT HALF MAG - Call your local BRP dealership This part replaces 420818269.
19	219704461	LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
20	219703000	Sealant Loctite 648 This part replaces 293800039.
21	293800060	Loctite 243, 10 ml This part replaces 413703000.
420215236	Semi-Trapez	Ring 72.25 mm 420215236
420215237	Semi-Trapez	Ring 72.50 mm 420215237
420915851	RECTANGULAR	RING 72.25 MM, 1ST - Call your local BRP dealership 420915851
420915851	Segment	Rectangulaire 72.25 mm, 1er - Appelez votre concessionnaire BRP local 420915851
420915852	RECTANGULAR	RING 72.5 MM, 2ND - Call your local BRP dealership 420915852
420915852	Segment	Rectangulaire 72.5 mm, 2e - Appelez votre concessionnaire BRP local 420915852
