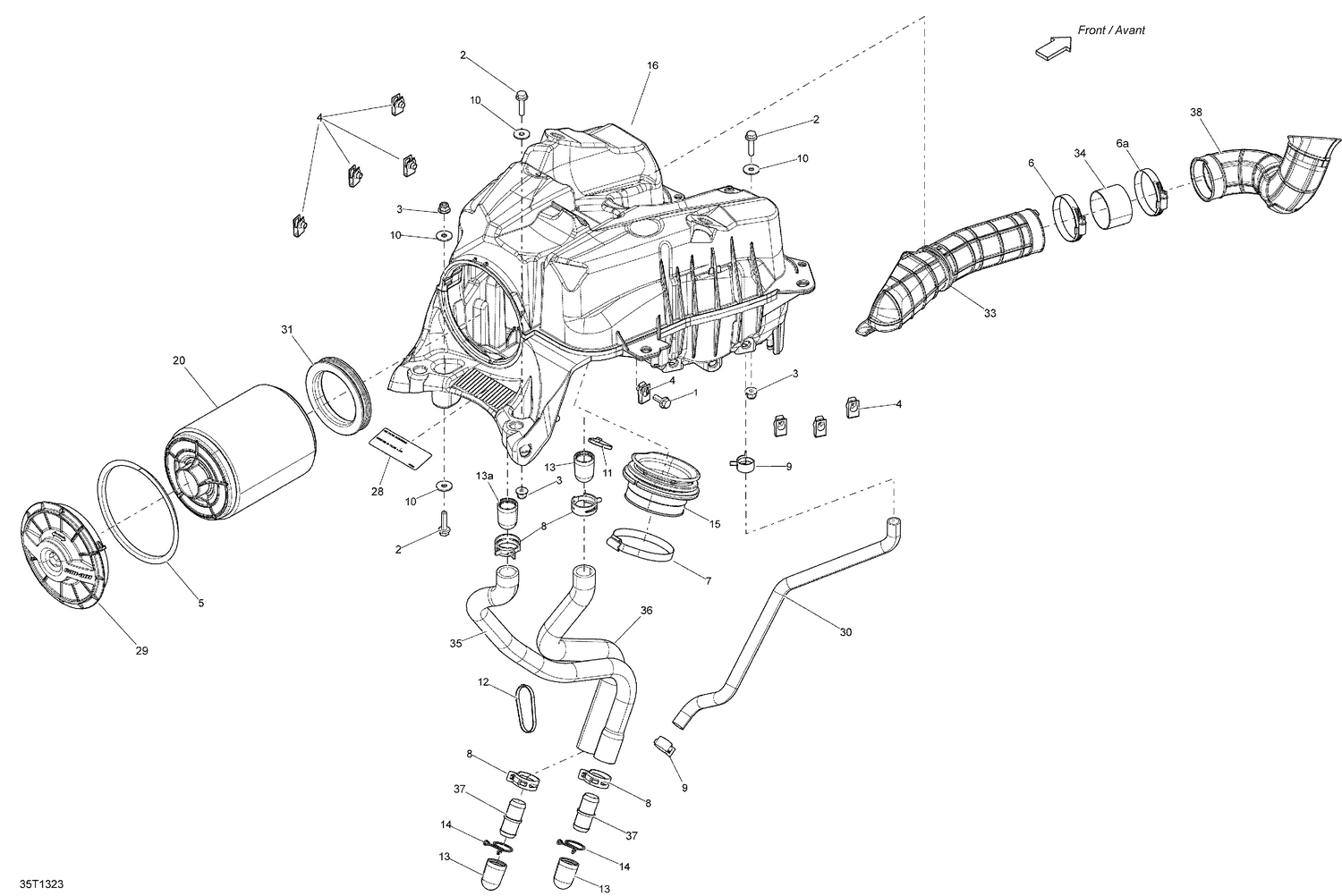

02- Air Intake
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662534 | Hex. Flange Screw M6 X 25 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 5 | 293300175 | Gasket |
| 6 | 293650077 | Norma Clamp This part replaces 293650230. |
| 7 | 293650091 | Norma Clamp |
| 8 | 293650109 | Norma Spring Clamp |
| 9 | 293650110 | Norma Clamp |
| 10 | 250200082 | Flat Washer |
| 11 | 414115200 | Tie-Rap 180 mm |
| 13 | 707800080 | Drain Tube |
| 13a | 707801178 | Drain Valve This part replaces 707800404. |
| 14 | 707800278 | Retainer Clip |
| 15 | 707800333 | Intake Adaptor |
| 16 | 707800531 | Intake Silencer |
| 20 | 707800371 | Air Filter |
| 28 | 707800373 | Air Filter Maintenance Decal |
| 29 | 715002174 | Intake Silencer Cap Ass'y This part replaces 707800518. |
| 30 | 707800453 | Vent Hose |
| 31 | 707800470 | Air Filter Adaptor |
| 33 | 707800501 | Air Intake Hose |
| 34 | 707800504 | Ring |
| 35 | 707800510 | Formed Hose |
| 36 | 707800511 | Formed Hose |
| 37 | 270001073 | Straight Fitting This part replaces 707800512. |
| 38 | 707800528 | Air Intake Front |
