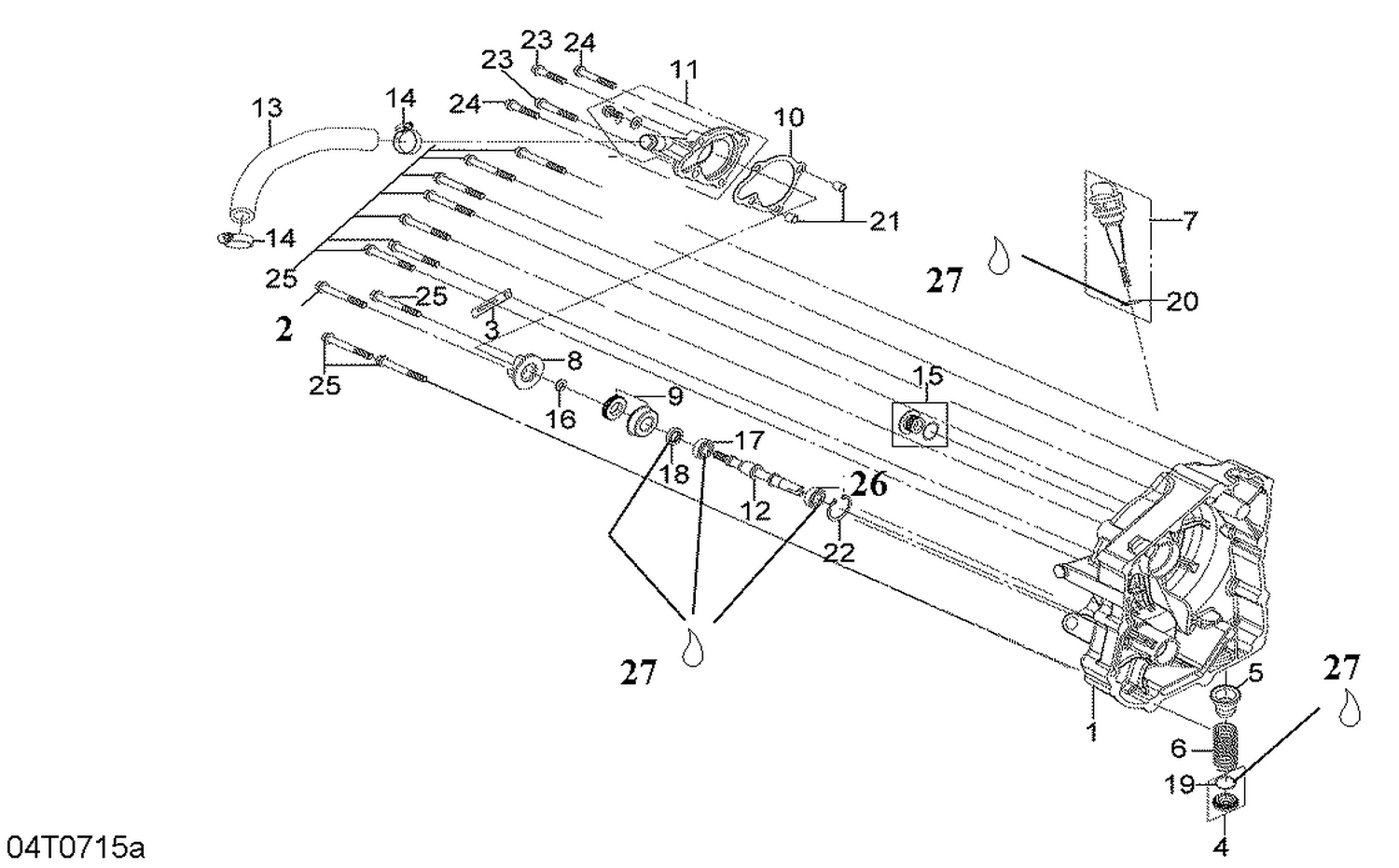

03- Magneto Cover and Water Pump
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S11330RB1000 | Crankcase |
| 2 | S960010607000 | Hex. Flange Screw M6 X 70 |
| 3 | S12342X01000 | Clamp |
| 4 | S1236AV02000 | Cap Ass'y |
| 5 | S15421M9Q000 | OIL FILTER SCREEN - Call your local BRP dealership |
| 6 | S15426M9Q000 | Oil Filter Screw Spring |
| 7 | S1565ARCA001 | Oil Level Gauge Ass'Y This part replaces S1565ARCA000. |
| 8 | S19215HLA000 | Water Pump Impeller |
| 9 | S19217H9A300 | Mechanical Seal |
| 10 | S19229H9A002 | Gasket This part replaces S19229H9A000. |
| 11 | S1922AHLA000 | Water Pump Cover |
| 12 | S19231HMA000 | Water Pump Shaft |
| 13 | S19502RB1000 | Hose |
| 14 | S19505KS6700 | Clamp |
| 15 | S9008AH9A000 | Cap And Seal Ass'y |
| 16 | S90423KJ9000 | Washer |
| 17 | S91001KJ9005 | Ball Bearing |
| 18 | S91205KF0003 | Oil Seal |
| 19 | NASP/NDPR | Not Available As Spare Parts |
| 20 | NASP/NDPR | Not Available As Spare Parts |
| 21 | S9430108140 | Dowel Pin |
| 22 | S9452026000 | Circlip |
| 23 | S960010602200 | Flanged Bolt M6 X 22 |
| 24 | S960010603200 | Flanged Bolt M6 X 32 |
| 25 | S960010604500 | Flanged Bolt M6 X 45 |
