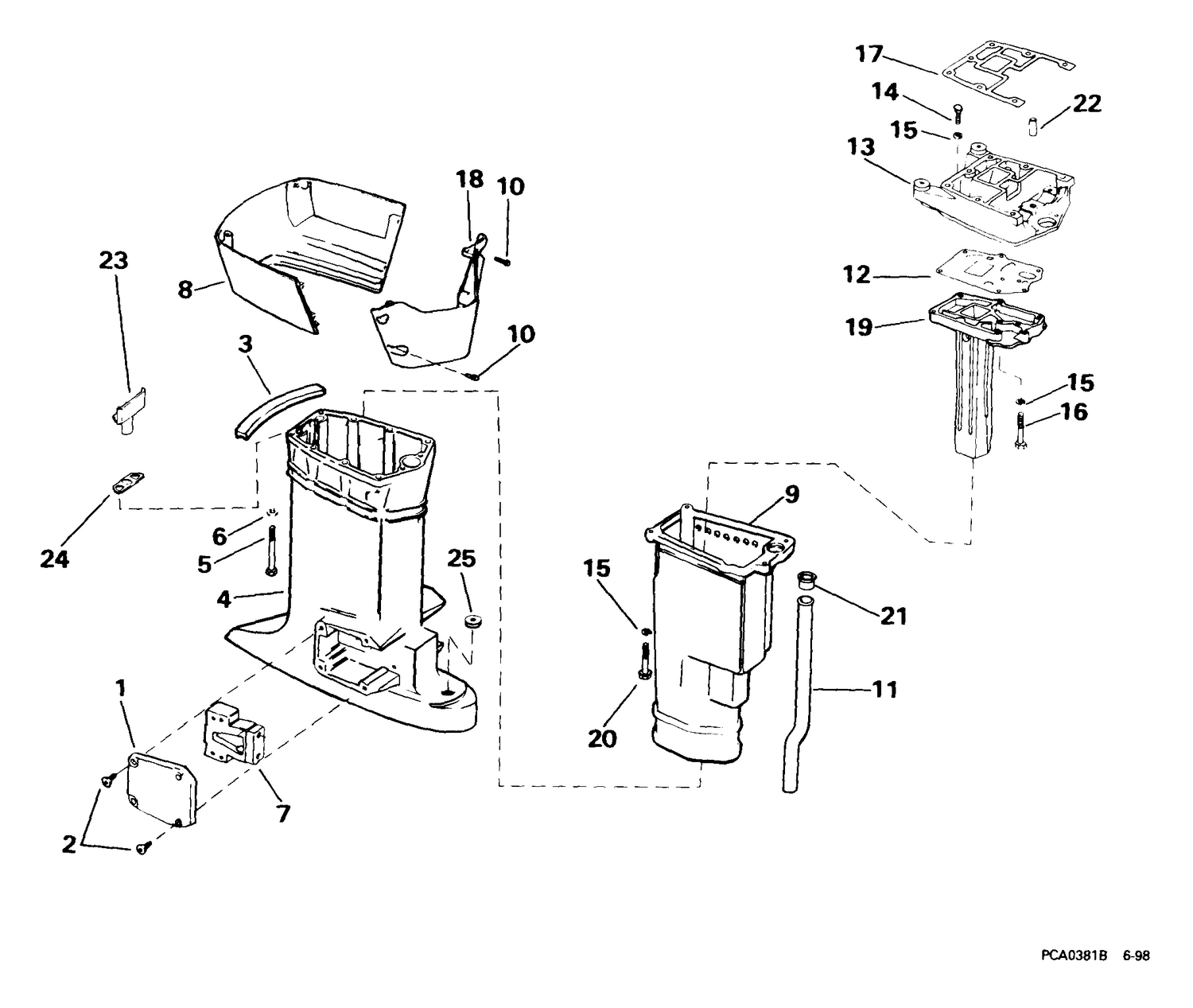

| Ref | Part Number | Description |
|---|
| 1 |
0321673 |
COVER, Mount bracket lower |
| 2 |
0329894 |
SCREW |
| 3 |
0314024 |
SEAL HOUSING, Outer |
| 4 |
0340772 |
EXHAUST HOUSING, Outer |
| 4 |
0342868 |
EXHAUST HOUSING, Outer |
| 5 |
0326900 |
SCREW, Exhaust housing |
| 6 |
0307708 |
RONDELLE GROWER |
| 7 |
0434331 |
RUBBER MOUNT, Lower |
| 8 |
0340777 |
COVER, Housing, rear |
| 9 |
0337023 |
EXHAUST HOUSING |
| 11 |
0319281 |
WASHER TUBE |
| 12 |
0336308 |
GASKET |
| 13 |
0344363 |
ADAPTER, Exhaust housing |
| 14 |
0329894 |
SCREW |
| 17 |
0329828 |
GASKET, Adapter to powerhead |
| 18 |
0340778 |
COVER, Exhaust housing, front |
| 19 |
0337024 |
MEGAPHONE |
| 20 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 21 |
0319043 |
SEAL, Water tube upper |
| 22 |
0331019 |
DOWEL, Adapter to upper mount |
| 23 |
0336448 |
BAFFLE, Exhaust housing |
| 24 |
0336418 |
GASKET, Baffle |
