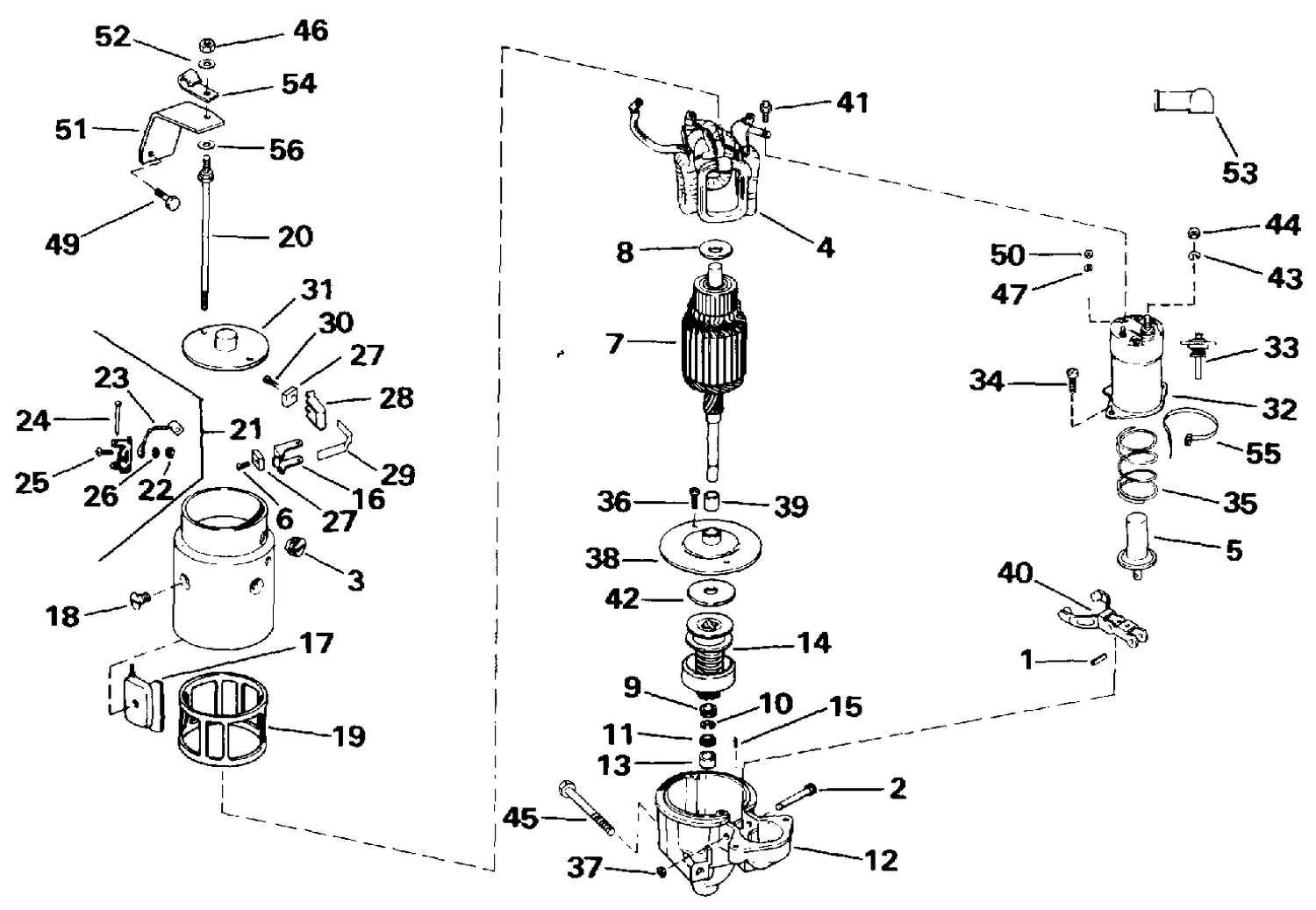

| Ref | Part Number | Description |
|---|
| 1 |
3853185 |
PIN, Plunger attaching |
| 2 |
3853188 |
STUD, Shift lever |
| 3 |
3852716 |
GROMMET, Field frame |
| 4 |
3853999 |
FIELD COIL |
| 5 |
3853186 |
PLUNGER |
| 6 |
0327953 |
SCREW ,Ground brush This part replaces 3852180. |
| 7 |
3853875 |
ARMATURE |
| 8 |
3852727 |
WASHER, Drive stop |
| 9 |
3852725 |
COLLAR, Pinion stop |
| 10 |
3852726 |
COLLAR STOP |
| 11 |
3852724 |
COLLAR THRUST |
| 12 |
3853182 |
DRIVE HSG (incl bushing) |
| 13 |
3852723 |
BUSHING, Drive end |
| 14 |
3853874 |
DRIVE ASSY |
| 15 |
3853183 |
DOWEL PIN, Drive end |
| 16 |
3853873 |
BRUSH HOLDER, Grounded |
| 17 |
3853191 |
POLE SHOE |
| 18 |
3853192 |
SCREW, Pole shoe |
| 19 |
3853235 |
INSULATOR, Field coil |
| 20 |
3852722 |
THRU BOLT |
| 20 |
3853872 |
THRU BOLT & STUD |
| 21 |
3853871 |
SUPPORT PACKAGE |
| 23 |
3853190 |
LEAD, Brush ground |
| 24 |
3853184 |
PIN, Support |
| 25 |
0303394 |
SCREW, Support This part replaces 3852047. |
| 27 |
3852721 |
BRUSH |
| 28 |
3853867 |
BRUSH HOLDER, Insulated |
| 29 |
3852720 |
SPRING, Brush |
| 31 |
3853870 |
CONNECTOR, Oil filter |
| 32 |
3853869 |
SOLENOID SWITCH |
| 33 |
3852719 |
CONTACT ASSY., Switch |
| 34 |
3852459 |
SCREW, Switch |
| 35 |
3852718 |
SPRING, Plunger return |
| 36 |
3853959 |
SCREW |
| 37 |
3853187 |
RETAINING RING |
| 38 |
3853868 |
PLATE & BUSHING |
| 39 |
3852717 |
BUSHING, Center |
| 40 |
3853189 |
LEVER, Shift |
| 41 |
0319614 |
SCREW, Bar clamp This part replaces 3852157. |
| 42 |
3852715 |
THRUST WASHER |
| 43 |
3852521 |
LOCK WASHER, Metric |
| 44 |
3852519 |
NUT, Starter solenoid, metric |
| 45 |
0315782 |
SCREW, Starter This part replaces 3852138. |
| 45 |
0315783 |
SCREW, Starter to cylinder This part replaces 3852139. |
| 47 |
3852520 |
LOCK WASHER, Ground |
| 49 |
3853398 |
SCREW, Clamp to cylinder head |
| 50 |
3852518 |
NUT, Solenoid, metric |
| 51 |
3852482 |
BRACKET |
| 52 |
0306407 |
LOCCKWASHER,Cover latch This part replaces 3852059. |
| 53 |
3852487 |
BOOT, Battery cable |
| 54 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 3852199. |
| 3850526 |
3855882 |
Kit This part replaces 3850526. |
