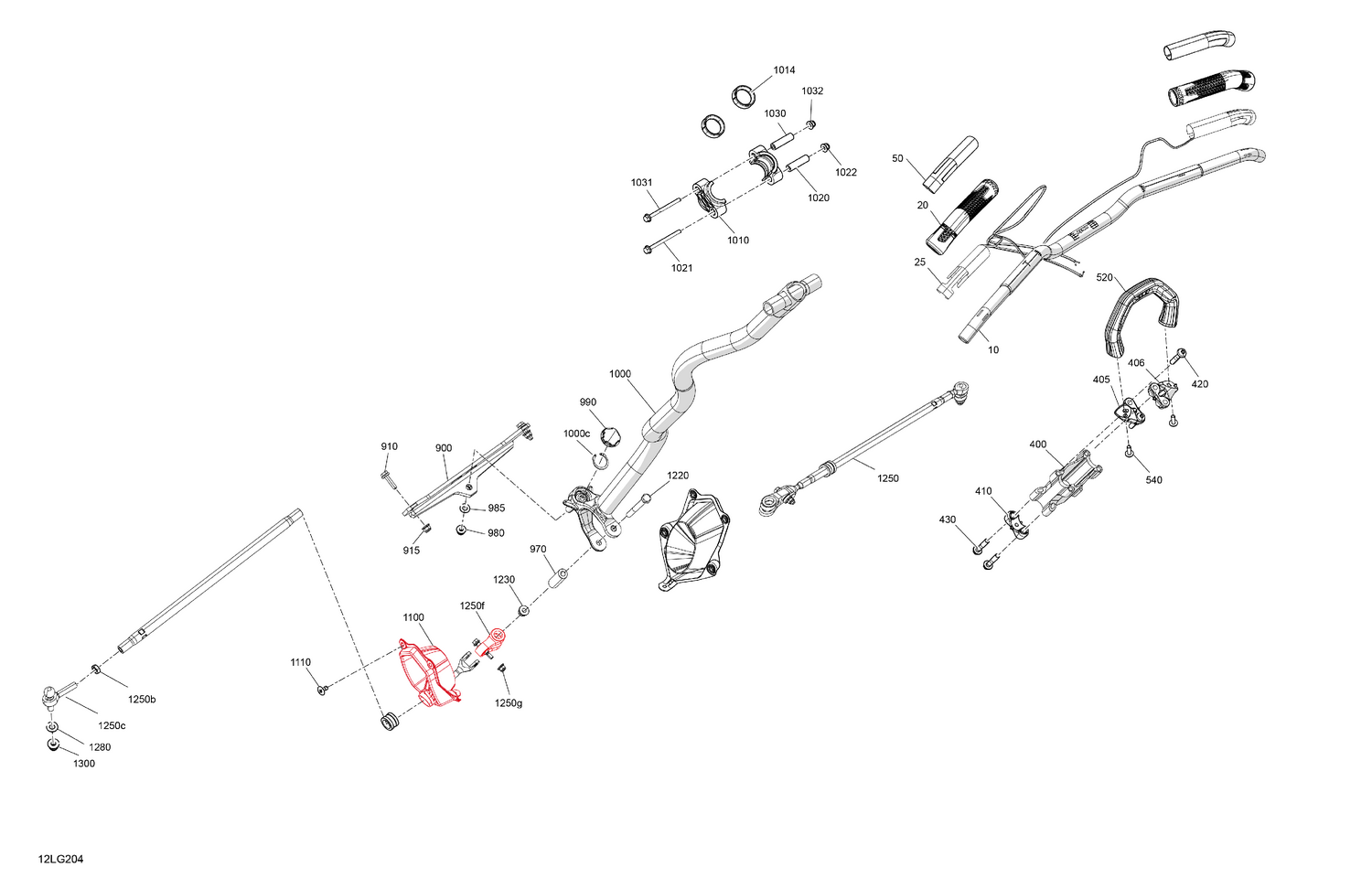

03- Mechanic - Steering
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506153172 | Black, Handle Bar |
| 20 | 506153352 | Grip |
| 25 | 506153487 | Heating Element 28W |
| 50 | 506153177 | Thermal Insulation |
| 400 | 506153255 | Deep Black, Handlebar Riser Block 90MM |
| 405 | 506152867 | LH Handlebar Support |
| 406 | 506152928 | RH Handlebar Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hexagonal Flange Screw M8 X 1.25 x 60 |
| 520 | 506153144 | Moulding Strap Ass'y |
| 540 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 900 | 506153385 | Steering Column Support |
| 910 | 207662544 | Hex. Flange Screw M6 X 25 |
| 915 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 970 | 506153334 | Pin |
| 980 | 250100246 | Hex. Flanged Elastic Nut M10 |
| 985 | 506152582 | Washer |
| 990 | 506153415 | Cap |
| 1000c | 293370114 | Circlip Int. |
| 1010 | 506152219 | Upper Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 250001114 | Hex Flange Screw M6 x 75 |
| 1022 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 250001114 | Hex Flange Screw M6 x 75 |
| 1032 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1100 | 506153294 | Cap |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1220 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 1230 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1250b | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1250c | 506152684 | RH Thread Ball Joint |
| 1250f | 506153332 | Universal Joint |
| 1250g | 233261466 | Hex. Flanged Elastic Nut M6 |
| 1280 | 506152582 | Washer |
