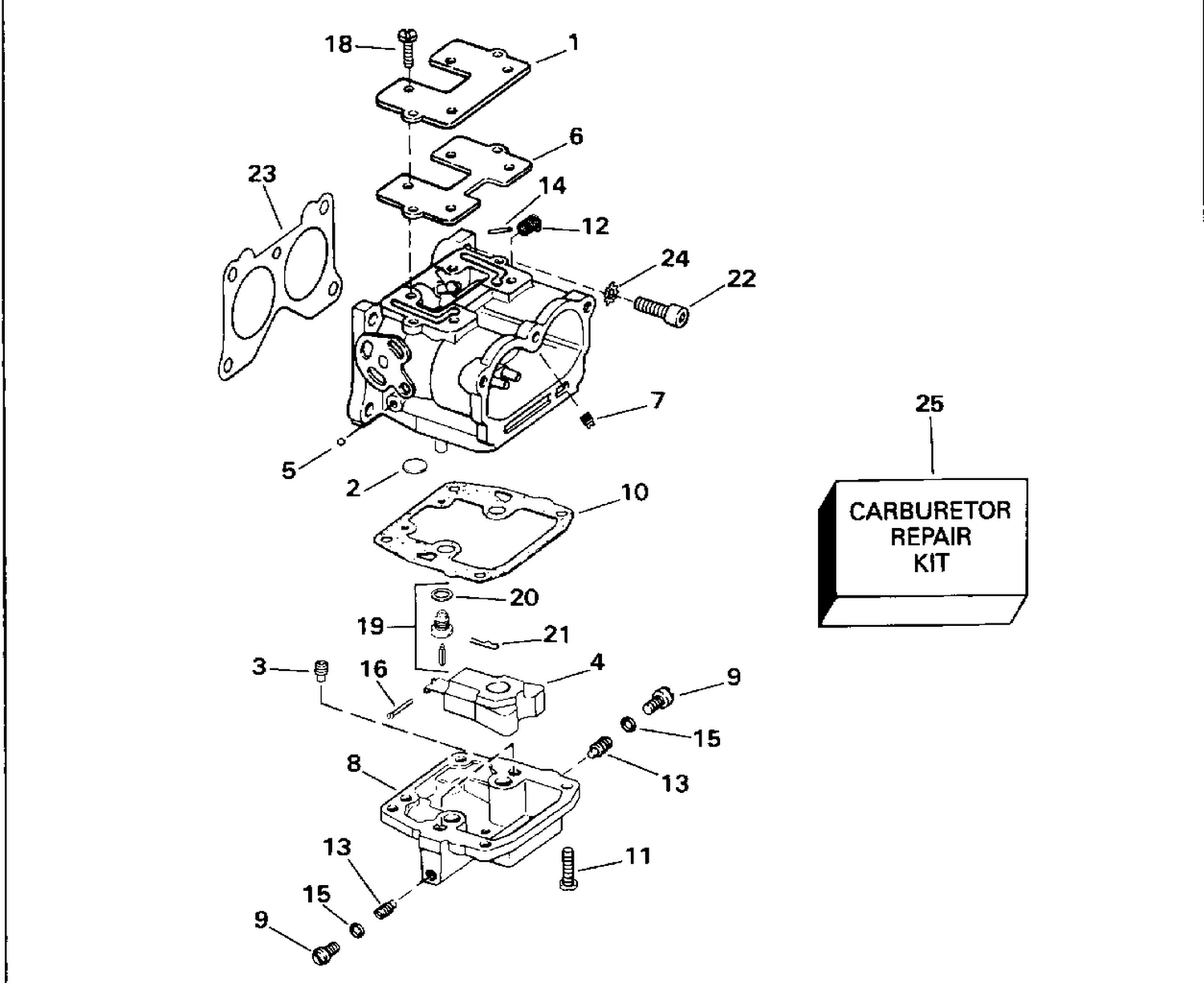

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel |
| 3 |
0333458 |
ORIFICE, #25C, 112 models |
| 3 |
0333459 |
ORIFICE, #25C, 110 models |
| 4 |
0383437 |
FLOAT ASSEMBLY |
| 6 |
0334353 |
GASKET, Cover |
| 8 |
0435733 |
FLOAT CHAMBER ASSY. |
| 10 |
0338884 |
GASKET, Float bowl |
| 13 |
0317183 |
ORIFICE PLUG |
| 18 |
0333750 |
SCREW, Cover |
| 21 |
0336842 |
CLIP, SPRING |
| 22 |
0203023 |
SCREW, Bracket to upper carb. |
| 23 |
0327707 |
GASKET, Air silencer |
| 0433807 |
0439728 |
CARBURETOR ASSY., 115 models This part replaces 0433807. |
| 0433811 |
0439727 |
CARBURETOR ASSY., 90 models This part replaces 0433811. |
