Parts Catalog

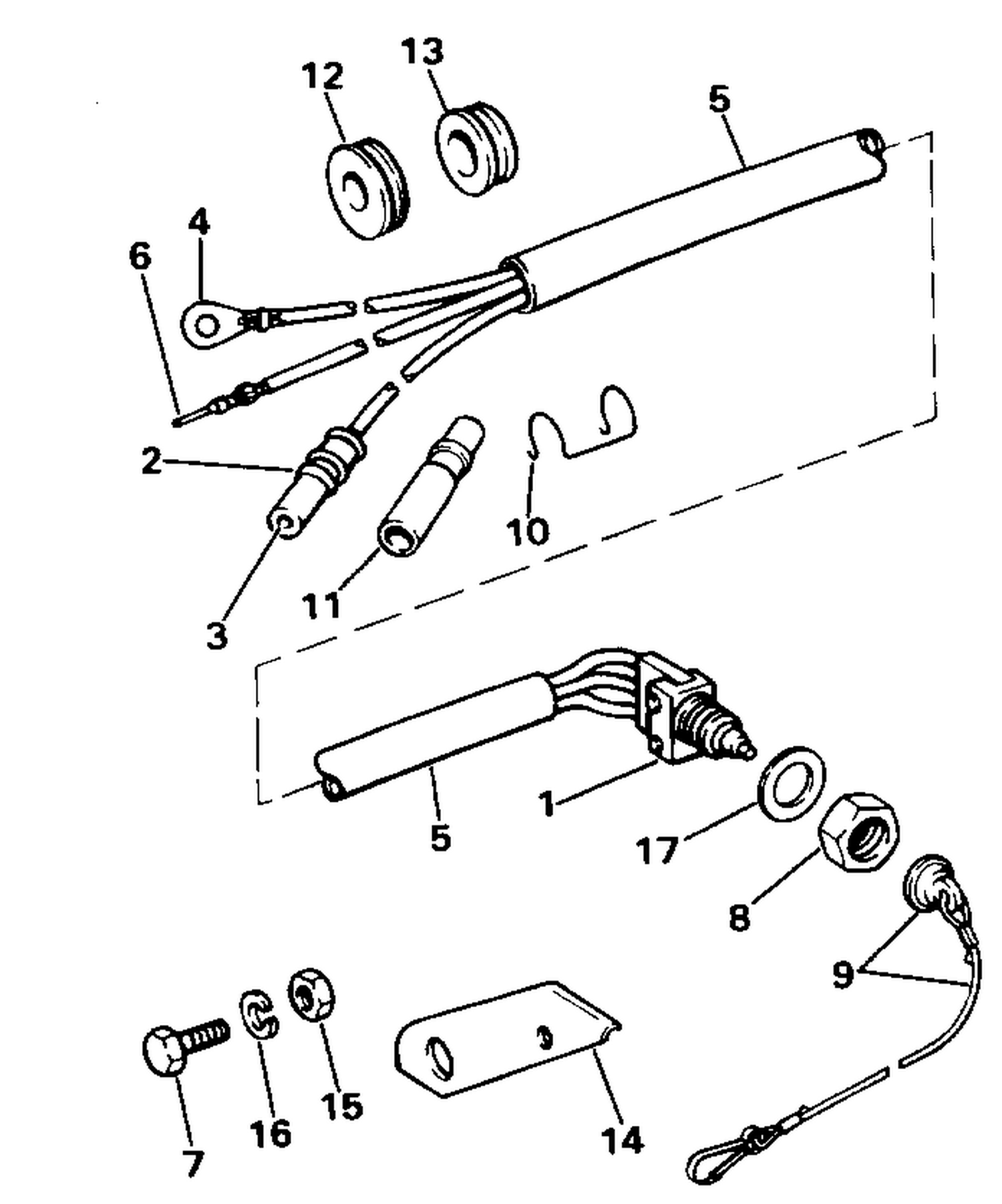

EMERGENCY IGN. CUT-OFF SWITCH-ENGINE MOUNTED 4.5-35 ROPE MDL

Parts (9)

Ref	Part Number	Description
1	0393134	CUT-OFF SWITCH ASSY.
2	0123404	CONNECTOR, 1-socket plug
5	0511149	TUBING
7	0800177	SCREW
11	0123405	CONNECTOR
14	0328016	BRACKET
15	0306932	NUT
16	0306799	L'WASHER,Bracket to hsg.
0174477	0174477	EMERGENCY IGNITION CUT-OFF SWITCH KIT
