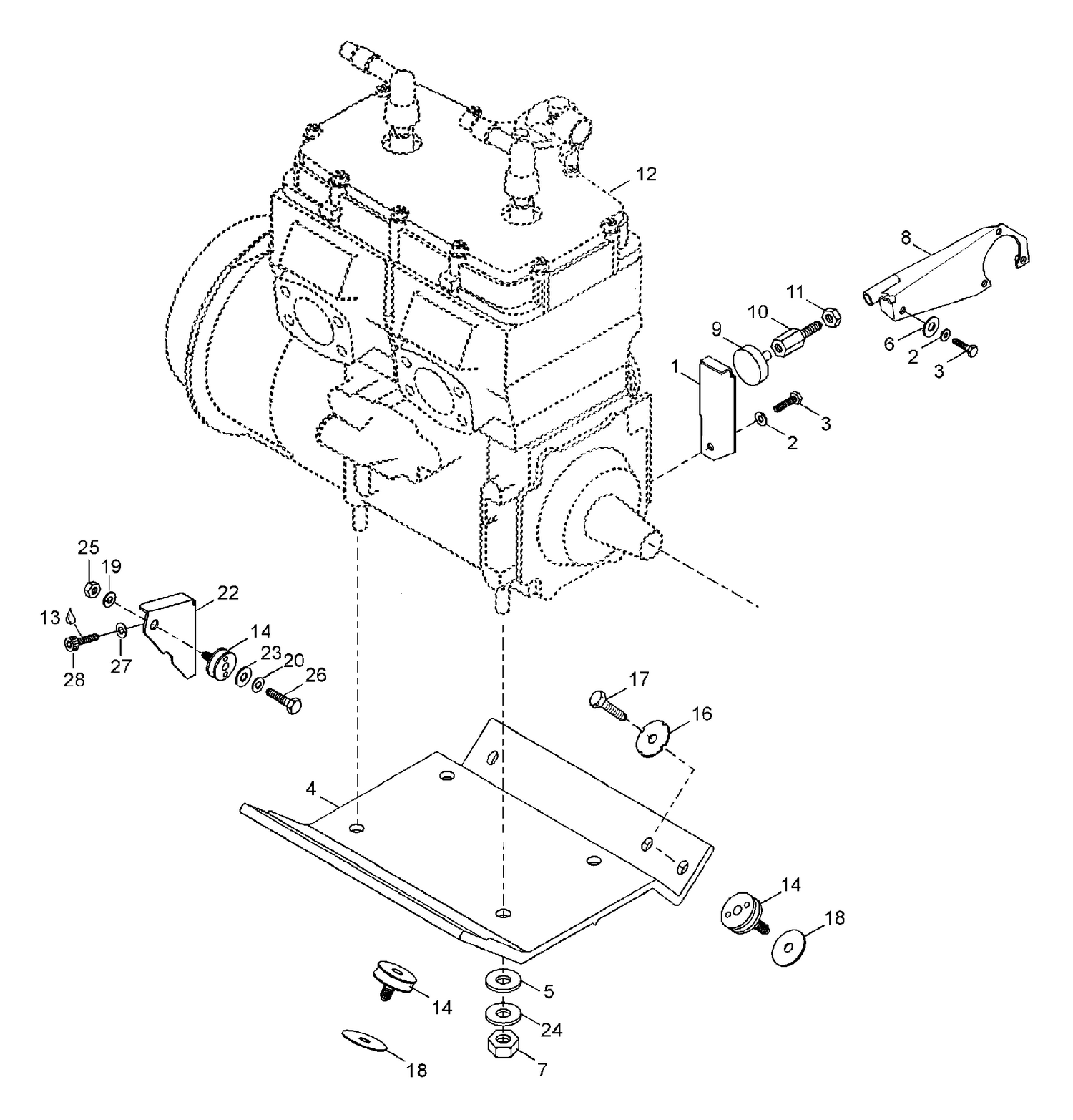

01- Engine Mount Plate
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5341891 | Stopper plate |
| 2 | 20052 | Washer |
| 3 | 40029 | Screw M6x16 |
| 4 | 5344268 | Engine support |
| 5 | 20105 | Washer, hardened |
| 6 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 7 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 8 | 5341685 | Support plate weld. |
| 9 | 570025100 | Stopper |
| 10 | 517244200 | Screw |
| 11 | 33063 | Nut M12 |
| 13 | 293800005 | Loctite 271/green |
| 14 | 5441913 | Rubber insulator |
| 16 | 512056700 | Lock washer |
| 17 | 40228 | Screw M10x16 |
| 18 | 546221 | Washer |
| 19 | 20047 | Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 20 | 20105 | Washer, hardened |
| 22 | 5343853 | Engine support, front |
| 23 | 20023 | Washer |
| 24 | 20047 | Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 25 | 33012 | Nut elastic M10 |
| 26 | 40228 | Screw M10x16 |
| 27 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
