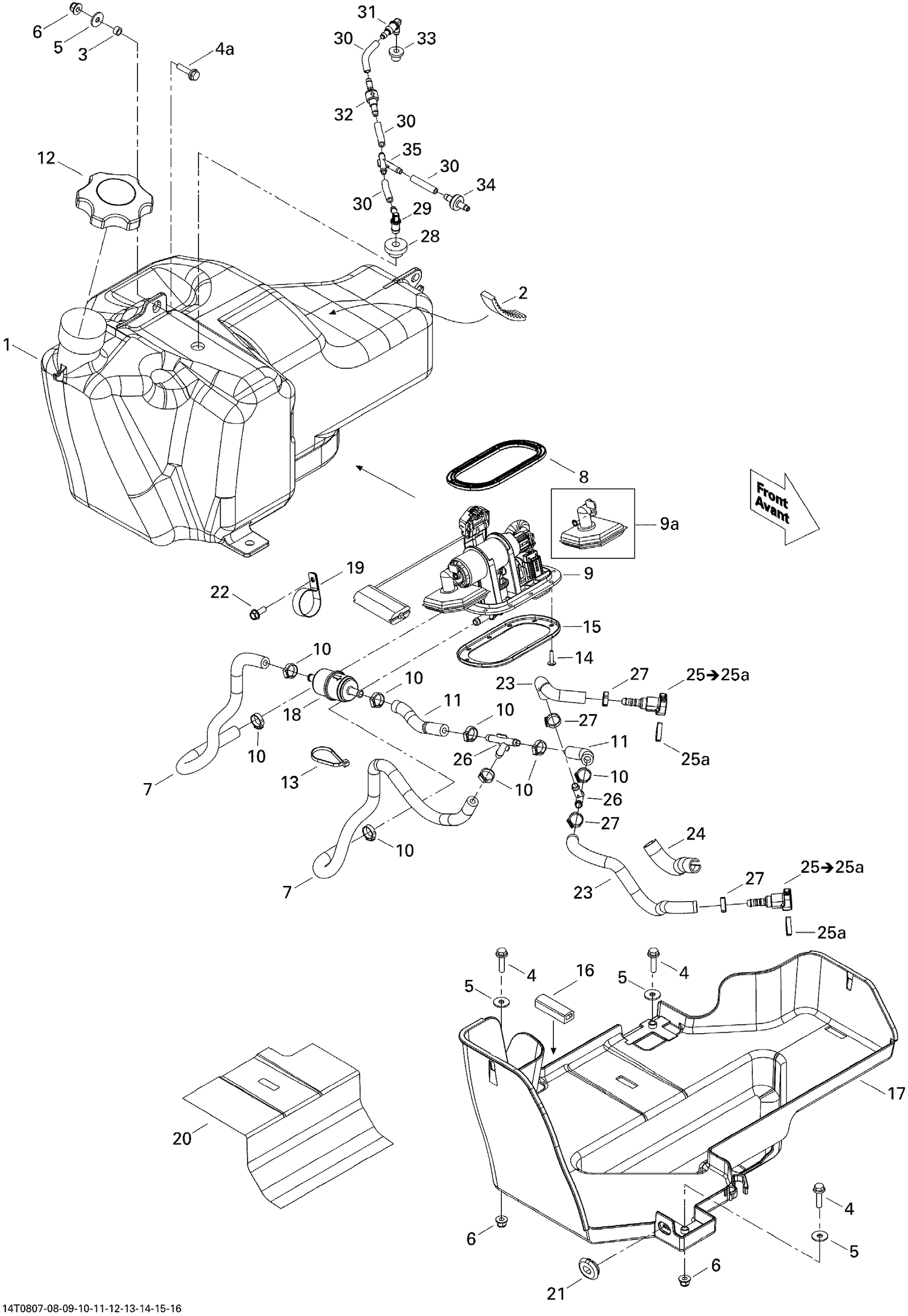

02- Fuel System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709000176 | FUEL TANK - Call your local BRP dealership |
| 2 | 709000153 | Vinyl Strip |
| 3 | 293900104 | Bushing This part replaces 293900029. |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 | 250200082 | Flat Washer This part replaces 391302000. |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 219704440 | Was 709000163 Fuel Line |
| 8 | 709000540 | Joint Etanche *Gasket This part replaces 709000109. |
| 9 | 703500771 | Fuel Pump |
| 9a | Not | Available As Spare Part - Preliminary Filter Kit |
| 10 | 293650046 | Oetiker Clamp |
| 11 | 219704440 | Was 709000163 Fuel Line |
| 12 | 513033025 | Fuel Tank Cap |
| 13 | 414115200 | Tie-Rap 180 mm |
| 14 | 250000750 | Torx Screw M4 X 16 This part replaces 250000242. |
| 15 | 709000170 | Pump Ring |
| 16 | 219704365 | Was 293200017 Neoprene Seal |
| 17 | 709000207 | TANK PROTECTOR - Call your local BRP dealership This part replaces 709000091. |
| 18 | 513034047 | Fuel Filter This part replaces 709000100. |
| 19 | 513033047 | Open Clamp |
| 20 | 709000149 | REFLECTIVE SHEET - Call your local BRP dealership |
| 21 | 705005156 | Oval Washer |
| 22 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 23 | 219704440 | Was 709000163 Fuel Line |
| 24 | 219704400 | Was 409901800 Tubing (13 mm) |
| 25 | 709000125 | Female Quick Fitting Ass'y |
| 25a | 513033135 | Locking Clip |
| 26 | 293710136 | Y-Fitting, 5/16'' This part replaces 293710115. |
| 27 | 293650046 | Oetiker Clamp |
| 28 | 293830136 | Grommet |
| 29 | 414580700 | Male Connector |
| 30 | 219704410 | Polyurethane Hose 10000Mm Long |
| 31 | 414580600 | Elbow Male Connector |
| 32 | 275500505 | Check Valve |
| 33 | 293720029 | Grommet |
| 34 | 275500398 | Check Valve |
