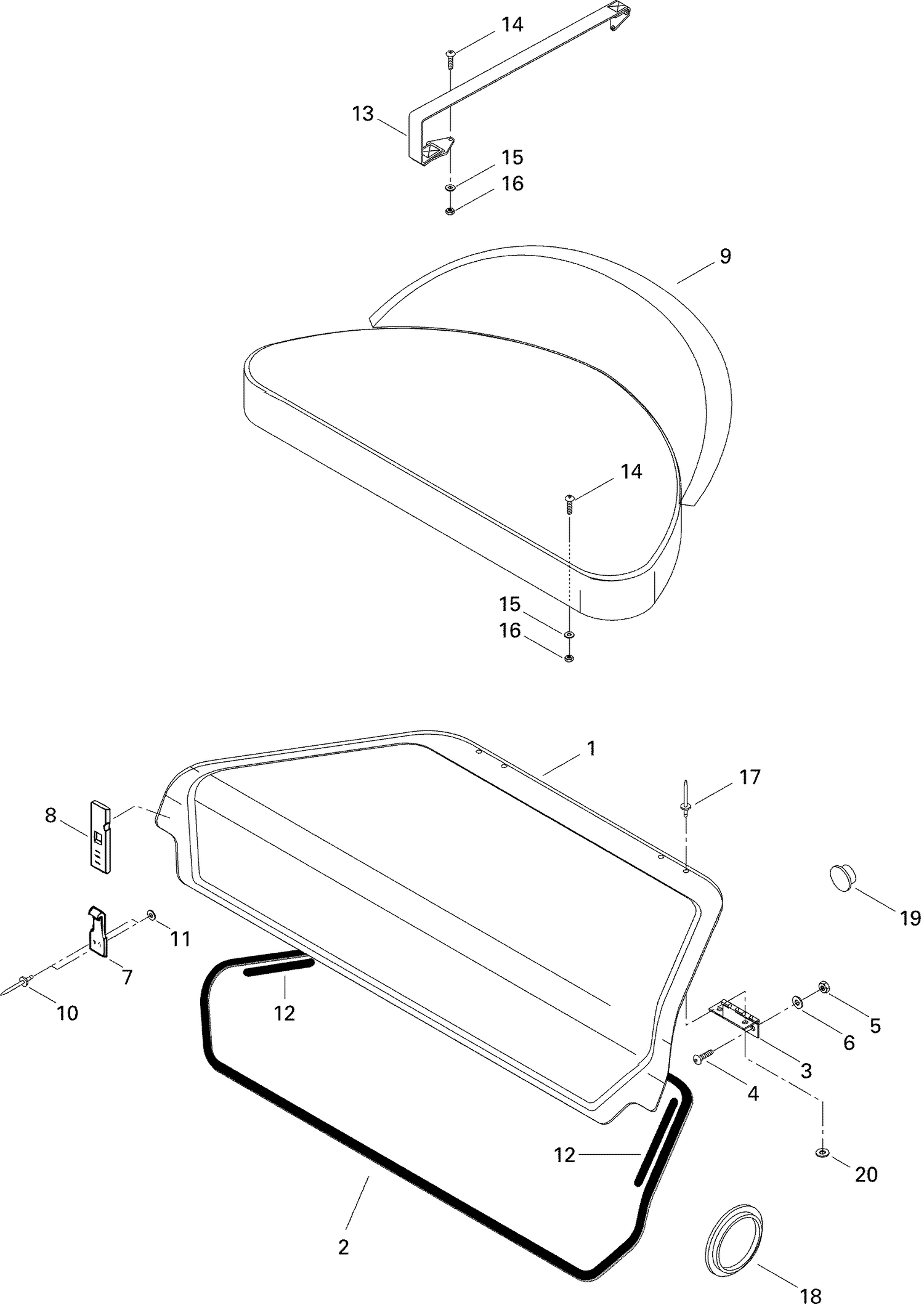

09- Seat, Front
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 269500189 | Front Storage Cover |
| 2 | 219704365 | Was 293200017 Neoprene Seal |
| 3 | 204072601 | HINGE - Call your local BRP dealership This part replaces 291000538. |
| 4 | 216141660 | Screw M4 x 16 |
| 5 | 232541600 | Elastic Stop Nut M4 This part replaces 218041600. |
| 6 | 234040600 | Flat Washer 4 mm This part replaces 213200010. |
| 7 | 291000166 | LATCH SUPPORT - Call your local BRP dealership |
| 8 | 291000165 | Latch (Female) |
| 9 | 269000107 | Front Seat Foam |
| 9 | 269000108 | Front Backrest Foam |
| 9 | 269000200 | Seat Cover |
| 9 | 293730005 | Staple |
| 10 | 293150023 | RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 11 | 234032600 | Flat Washer M3, Stainless This part replaces 213200018. |
| 12 | 204000094 | Neoprene 1/4 x 3/8 (Meter) |
| 13 | 269000201 | Strap |
| 14 | 216151660 | Screw M5 x 16 |
| 15 | 234052600 | Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 16 | 232551600 | Hex. Elastic Nut M5 This part replaces 212000004. |
| 17 | 204000081 | Pop Rivet 3/16" |
| 18 | 570277400 | Bottom Pan Cap |
| 19 | 293000030 | Hunky Cap |
