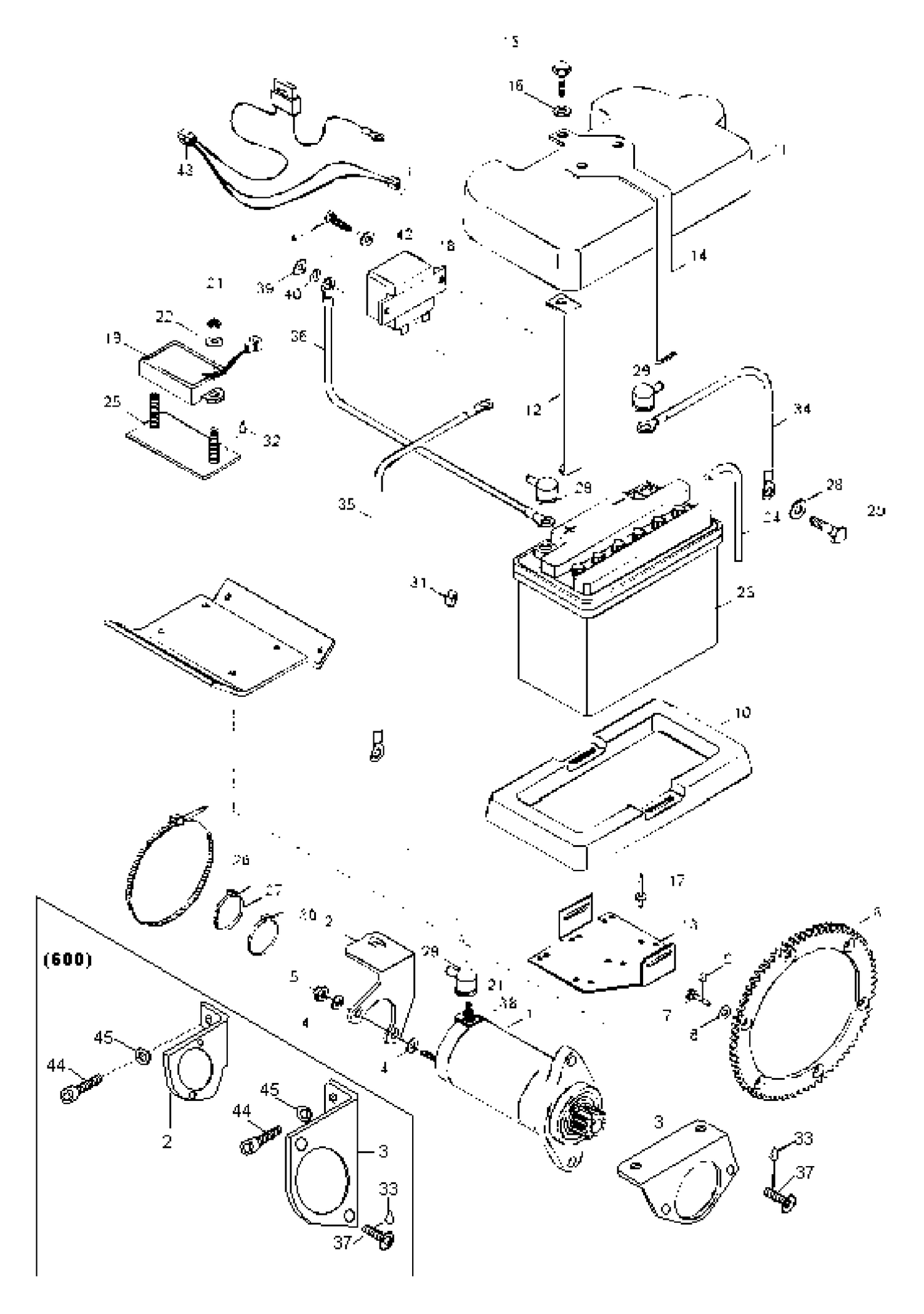

10- Battery
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420995430 | Electric starter assy |
| 2 | 5345743 | Back fastening |
| 3 | 5245742 | Holder |
| 4 | 20002 | Washer |
| 5 | 33009 | Nut elastic M5 |
| 6 | 415043100 | Ring gear |
| 7 | 236281684 | Hex. Screw M8 X 16 This part replaces 732601246. |
| 8 | 31081 | Washer |
| 9 | 219703000 | Sealant Loctite 648 This part replaces 420899788. |
| 10 | 5342069 | Battery bottom |
| 11 | 5342070 | Battery cover |
| 12 | 5341035 | Battery fix |
| 13 | 5343968 | Bottom fastening of batte |
| 14 | 549888 | Fastening welded |
| 15 | 40031 | Screw M6x25 |
| 16 | 20052 | Spring washer |
| 17 | 36083 | Rivet |
| 18 | 420992817 | Relais |
| 19 | 549264 | Rectifier |
| 20 | 40066 | Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 21 | 33010 | Lock Nut M6 (1=10Pcs) |
| 22 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 23 | 42215 | BATTERY YUASA 12N14-3A - Call your local BRP dealership |
| 24 | 39055 | Hose |
| 25 | 5445079 | Shelter plate |
| 26 | 27036 | Tie rap |
| 27 | 27010 | Tie rap |
| 28 | 20014 | Lock washer |
| 29 | 570151000 | Protector cap |
| 30 | 414115200 | Tie-Rap 180 mm This part replaces 27026. |
| 31 | 414227300 | Clip |
| 32 | 413706400 | Lithium-grease |
| 33 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 34 | 5445807 | Cable, - |
| 35 | 5442150 | Cable, relais -> starter |
| 36 | 542519 | Cable, + -> relais |
| 37 | 40839 | ALLEN SCREW M8 X 20 - Call your local BRP dealership |
| 38 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 39 | 20008 | Washer |
| 40 | 20013 | Spring washer |
| 41 | 40115 | Screw M6x12 |
| 42 | 20003 | Washer |
| 43 | 5442082 | Wire |
| 44 | 40305 | Allen screw M8x20 |
