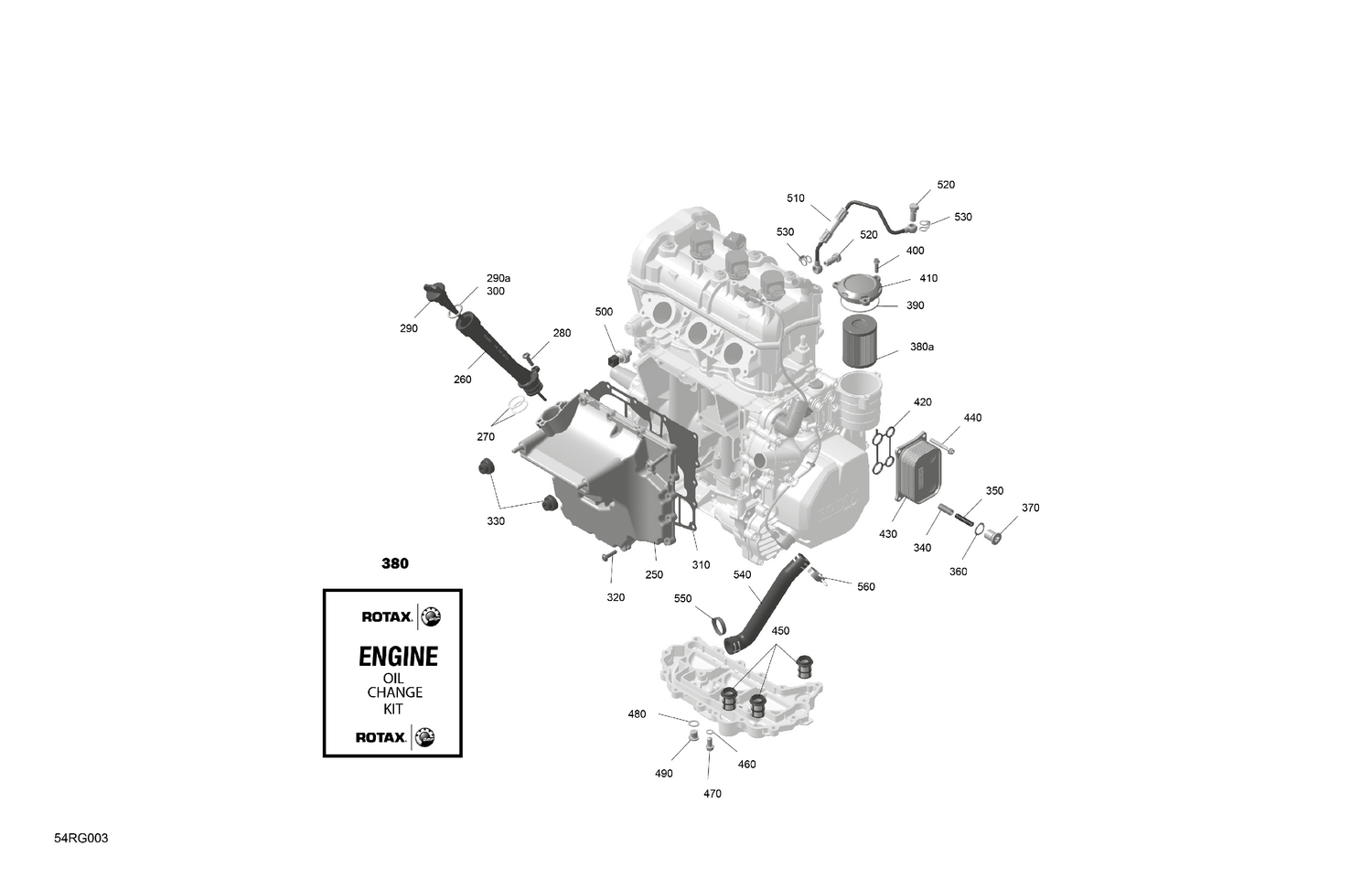

01- ROTAX - Engine Lubrication
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 250 | 420656707 | Oil Sump Cover |
| 260 | 420656901 | Oil Filler Tube |
| 270 | 420430440 | O-Ring DIN 3771-25X3-N, FPM 75 |
| 280 | 420441386 | Flanged Torx Screw M6 X 20 |
| 290a | 420631642 | O-Ring |
| 300 | 420631642 | O-Ring |
| 310 | 420431848 | Gasket |
| 320 | 420841549 | Flanged Torx Screw M6 X 25 |
| 330 | 420860150 | Rubber Grommet |
| 340 | 420256591 | Pression Regulating Piston |
| 350 | 420239445 | Spring DM6,95 D1,15 L46 |
| 360 | 420430624 | Gasket Ring |
| 370 | 420441372 | Plug Screw M16 x 1,5 |
| 380 | 9779254 | Ski-Doo Oil Change Kit 0W40 900 ACE |
| 380 | 9779403 | SKI-DOO OIL CHANGE KIT 0W40 900ACE EU |
| 380a | 420956124 | Oil Filter |
| 390 | 420230923 | O-Ring |
| 400 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 410 | 420612135 | Oil Filter Cover |
| 420 | 420431871 | Gasket |
| 430 | 420656698 | Oil Water Heat Exchanger |
| 440 | 420440324 | Flanged Torx Screw M6 X 45 |
| 450 | 420656680 | Oil Sieve |
| 460 | 420950141 | Sealing Ring A 8X13 DIN 7603 |
| 470 | 420440852 | Flanged Torx Screw M8 X 16 |
| 480 | 420250640 | Copper Washer A 12X18-CU DIN 7603 |
| 490 | 420241701 | Plug Screw M12 x 1,5 |
| 500 | 420256978 | Oil Pressure Switch |
| 510 | 420456322 | Oil Line |
| 520 | 420840184 | Banjo Bolt |
| 530 | 420230153 | Sealing Ring |
| 540 | 420201750 | Molded Hose |
| 550 | 420251578 | Clamp |
