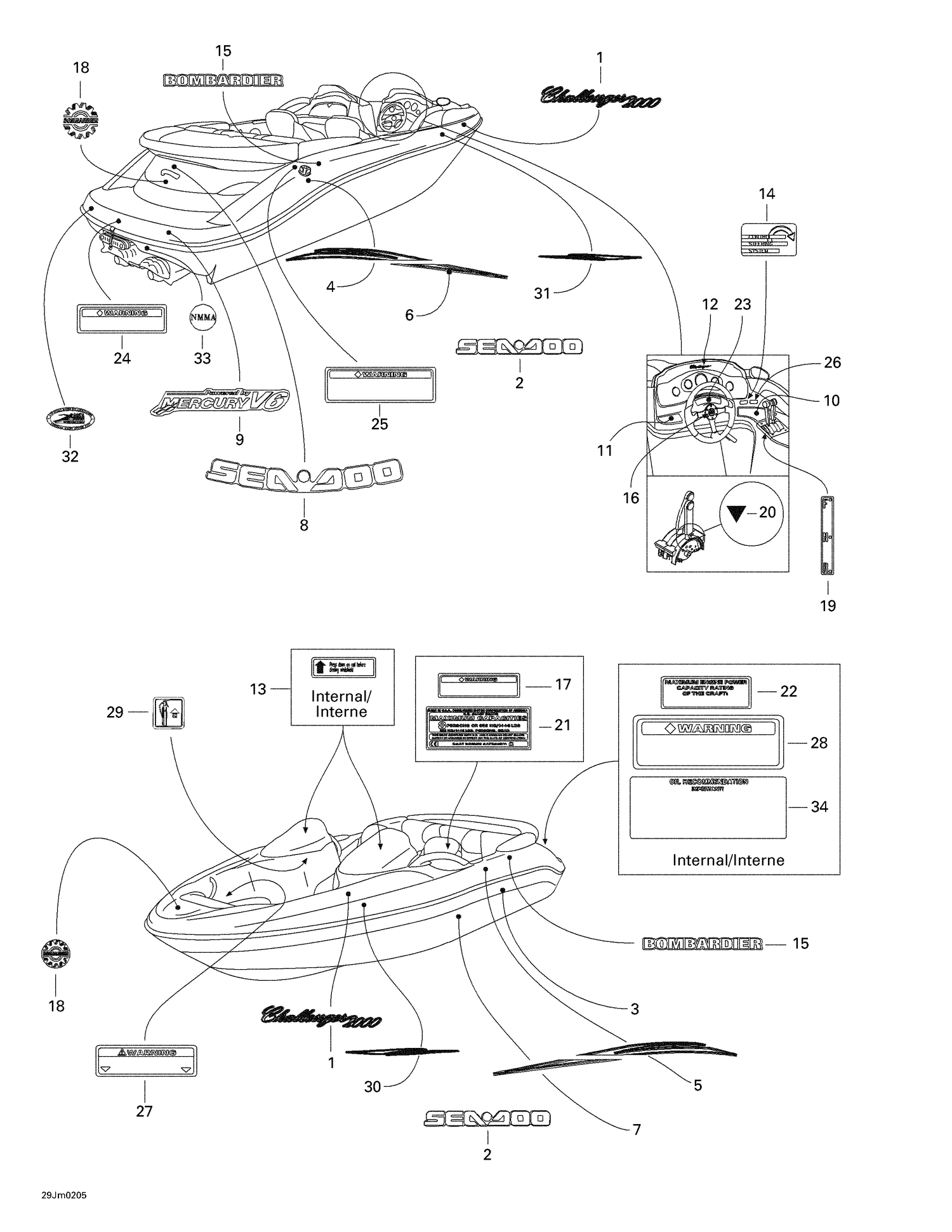

09- Decals
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 204900198 | Stripe Cut |
| 4 | 204901058 | RH Rear Deck Graphic |
| 5 | 204901057 | LH Rear Deck Graphic |
| 6 | 204901056 | RH Hull Graphic |
| 7 | 204901055 | LH Hull Graphic |
| 10 | 204901085 | Outline Decal |
| 11 | 204901086 | Console Decal |
| 12 | 204901064 | Windscreen Decal |
| 13 | 204900134 | Windscreen Support Decal |
| 14 | 204900243 | Low Speed Control Decal |
| 15 | 204901052 | Bombardier Decal |
| 16 | 704909039 | BRP Logo Emblem 35 MM UV This part replaces 204900626. |
| 17 | 204900682 | Warning Label |
| 18 | 204900435 | Bombardier Logo |
| 19 | 204900136 | DECAL, SHIFTER - Call your local BRP dealership |
| 20 | 204900138 | POINTER, SHIFTER - Call your local BRP dealership |
| 21 | 204900721 | Capacity Label |
| 23 | 204900723 | Navigation Warning Label |
| 24 | 204900470 | Label - Warning |
| 25 | 204901089 | Warning Label - Fuel |
| 26 | 204900162 | Label - Warning, Gas Blower |
| 27 | 204900465 | Warning Label, Bow Seat |
| 28 | 204900469 | Warning Label, Battery |
| 29 | 204900359 | Extinguisher Decal |
| 30 | 204901059 | LH Hull Graphic |
| 31 | 204901060 | RH Hull Graphic |
| 32 | 204900313 | Awsa Decal |
| 33 | 204900464 | NMMA Certification Decal |
