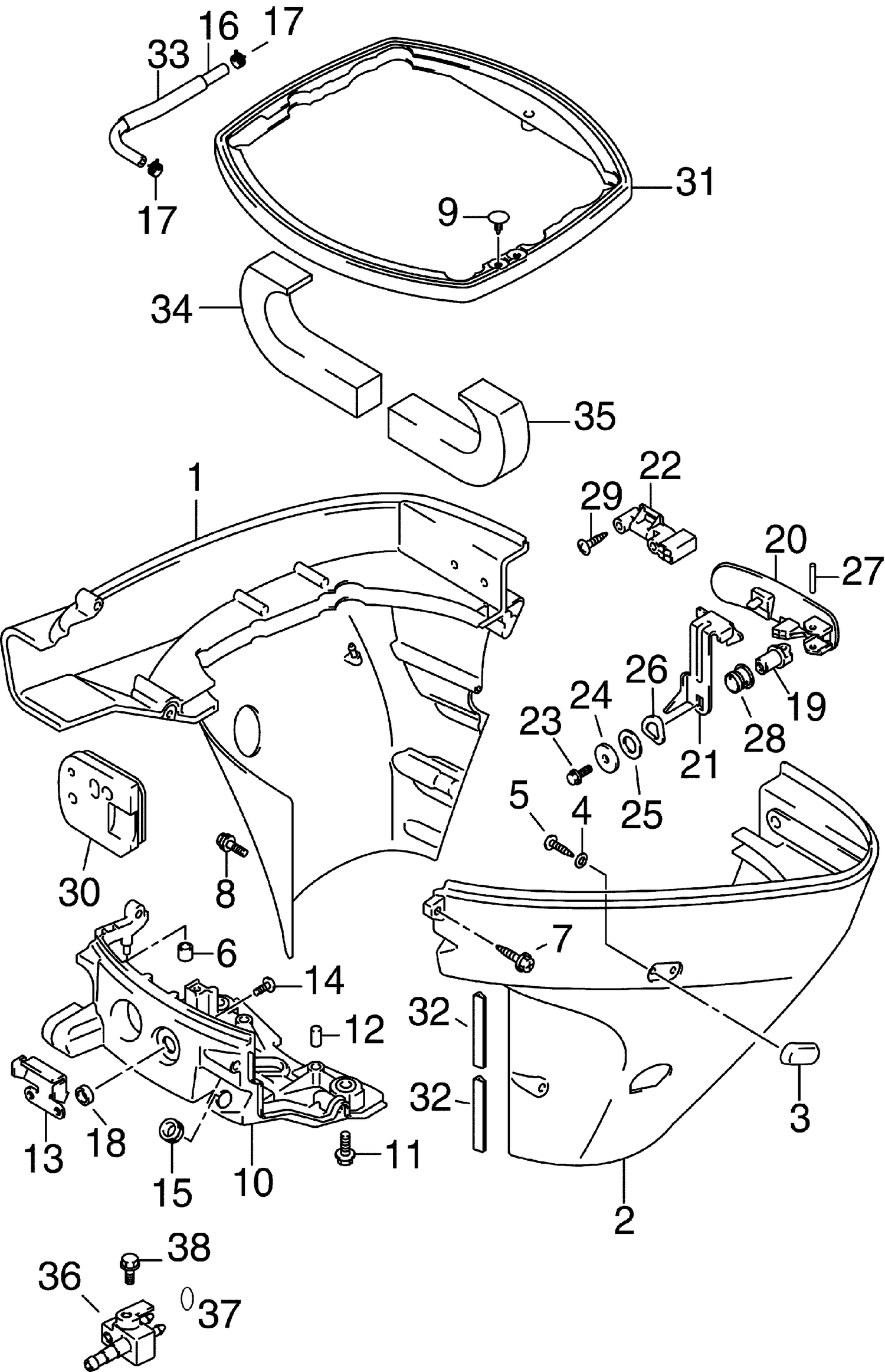

LOWER ENGINE COVER
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5037039 | COVER, SIDE STBD |
| 2 | 5037040 | COVER, SIDE PORT |
| 4 | 5037042 | WASHER |
| 5 | 5037472 | SCREW |
| 7 | 5033589 | SCREW (6X35) |
| 8 | 5033590 | SCREW (6X55) |
| 9 | 5031906 | CLIP |
| 10 | 5037044 | PANEL, Front |
| 11 | 5034400 | BOULON |
| 12 | 5030511 | PIN |
| 13 | 5037045 | HOOK, Instrument panel |
| 14 | 5033302 | SCREW |
| 15 | 5037046 | GROMMET, Fuel connector hose |
| 16 | 5034677 | HOSE, WATER INDICATOR |
| 17 | 5037047 | CLIP |
| 18 | 5037048 | CUSHION, Warning indicator |
| 19 | 5035190 | SHAFT, Engine cover hook |
| 20 | 5037049 | LEVER, Hook rear |
| 21 | 5037050 | HOOK, Engine cover |
| 22 | 5037051 | LATCH, Hook lever |
| 23 | 5030031 | BOLT |
| 24 | 5036149 | RONDELLE (6,5X24X4) |
| 25 | 5037052 | WASHER |
| 26 | 5031858 | RONDELLE, ondulée |
| 27 | 5034820 | PIN, HOOK LEVER |
| 28 | 5031894 | BUSH |
| 29 | 5037473 | SCREW |
| 31 | 5037055 | SEAL, Side cover |
| 32 | 5037056 | CUSHION, Side cover |
| 33 | 5034595 | PROTECTOR (L:140mm) |
| 34 | 5037057 | SEAL, Upper mount, stbd |
| 35 | 5037058 | SEAL, Upper mount, port |
| 36 | 5032150 | CONNECTOR, Fuel |
