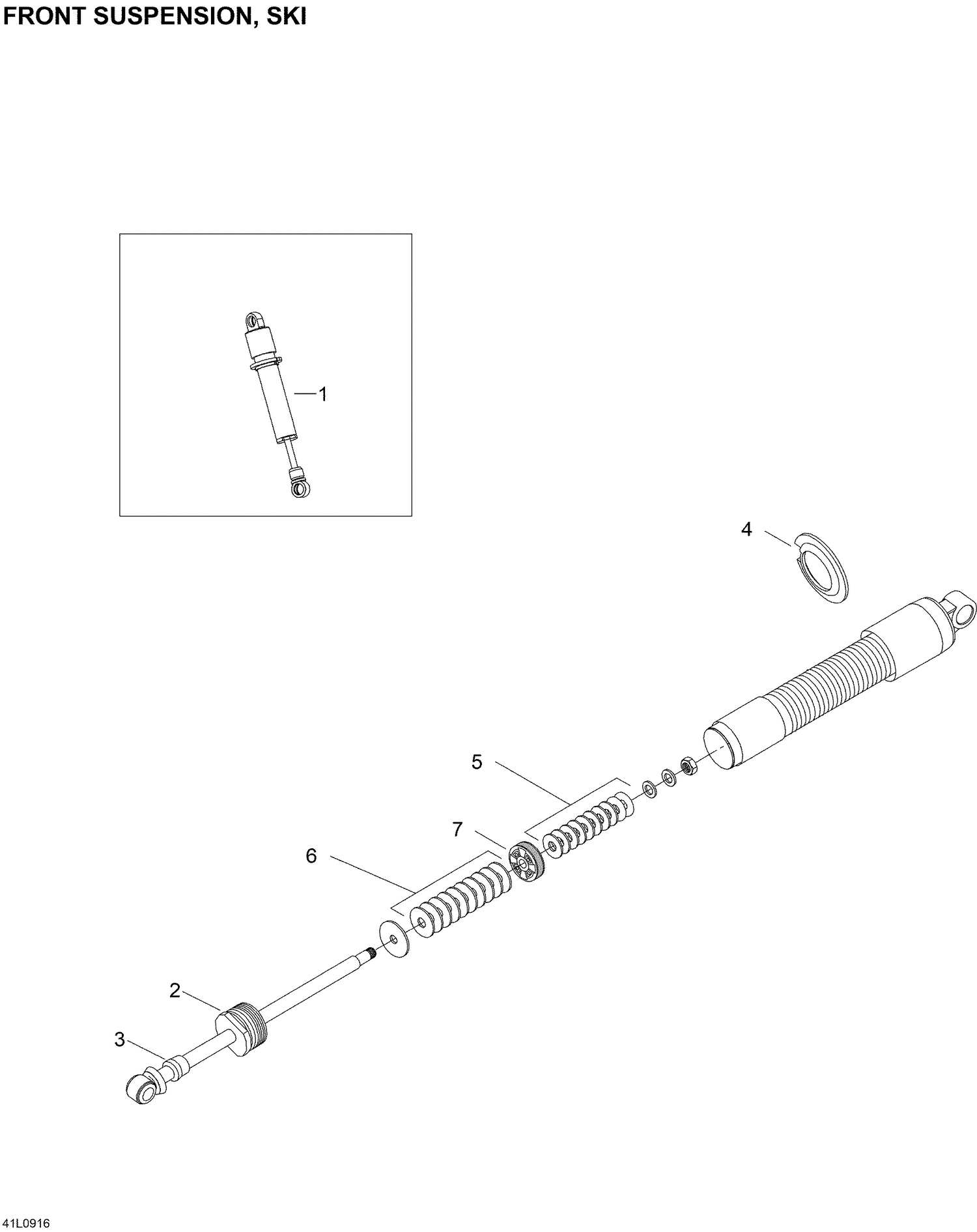

07- Take Apart Shock, Ski
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 619300004 | Seal carrier ass'y |
| 3 | 619300005 | Rod assy |
| 4 | 415128598 | SPRING COLLAR - Call your local BRP dealership |
| 5 | 230015 | Leaf valve 18x0.114 |
| 5 | 230016 | Leaf valve 18x0.254 |
| 5 | 230017 | Leaf valve 20x0.254 |
| 5 | 230018 | Leaf valve 22x0.114 |
| 5 | 230019 | Leaf valve 22x0.254 |
| 5 | 230021 | Leaf valve 24x0.114 |
| 5 | 230022 | Leaf valve 24x0.152 |
| 5 | 230023 | Leaf valve 24x0.203 |
| 5 | 230024 | Leaf valve 26x0.114 |
| 5 | 230025 | Leaf valve 28x0.114 |
| 5 | 230026 | Leaf valve 28x0.254 |
| 5 | 414888318 | Leaf valve 30 x 0.203 |
| 5 | 414888319 | Leaf valve 30x0.152 |
| 5 | 414888324 | Leaf valve 22x0.203 |
| 5 | 414888326 | Leaf valve 20x0.203 |
| 5 | 414888327 | Leaf valve 20x0.152 |
| 5 | 414888329 | Leaf valve 18x0.203 |
| 5 | 414888330 | Leaf valve 18x0.152 |
| 5 | 414888331 | Leaf valve 16x0.254 |
| 5 | 414888338 | Leaf valve 12x0.203 |
| 5 | 415039000 | Leaf valve 26x0.254 |
| 5 | 415039100 | Leaf valve 30x0.254 |
| 5 | 505070399 | Screw |
| 5 | Not | Available As Spare Part - Leaf valve 12x0.114 |
| 6 | 230015 | Leaf valve 18x0.114 |
| 6 | 230016 | Leaf valve 18x0.254 |
| 6 | 230017 | Leaf valve 20x0.254 |
| 6 | 230018 | Leaf valve 22x0.114 |
| 6 | 230019 | Leaf valve 22x0.254 |
| 6 | 230021 | Leaf valve 24x0.114 |
| 6 | 230022 | Leaf valve 24x0.152 |
| 6 | 230023 | Leaf valve 24x0.203 |
| 6 | 230024 | Leaf valve 26x0.114 |
| 6 | 230025 | Leaf valve 28x0.114 |
| 6 | 230026 | Leaf valve 28x0.254 |
| 6 | 230121 | Leaf valve 17x0.203 |
| 6 | 414888318 | Leaf valve 30 x 0.203 |
| 6 | 414888319 | Leaf valve 30x0.152 |
| 6 | 414888324 | Leaf valve 22x0.203 |
| 6 | 414888326 | Leaf valve 20x0.203 |
| 6 | 414888327 | Leaf valve 20x0.152 |
| 6 | 414888329 | Leaf valve 18x0.203 |
| 6 | 414888330 | Leaf valve 18x0.152 |
| 6 | 414888331 | Leaf valve 16x0.254 |
| 6 | 414888335 | Leaf valve 15x0.203 |
| 6 | 414888338 | Leaf valve 12x0.203 |
| 6 | 415039000 | Leaf valve 26x0.254 |
| 6 | 415039100 | Leaf valve 30x0.254 |
| 6 | Not | Available As Spare Part - Leaf valve 12x0.114 |
| 7 | 230027 | Piston, 1 slits |
| 7 | 230028 | Piston, 3 slits |
| 7 | Not | Available As Spare Part - Mäntä, 2 slits |
