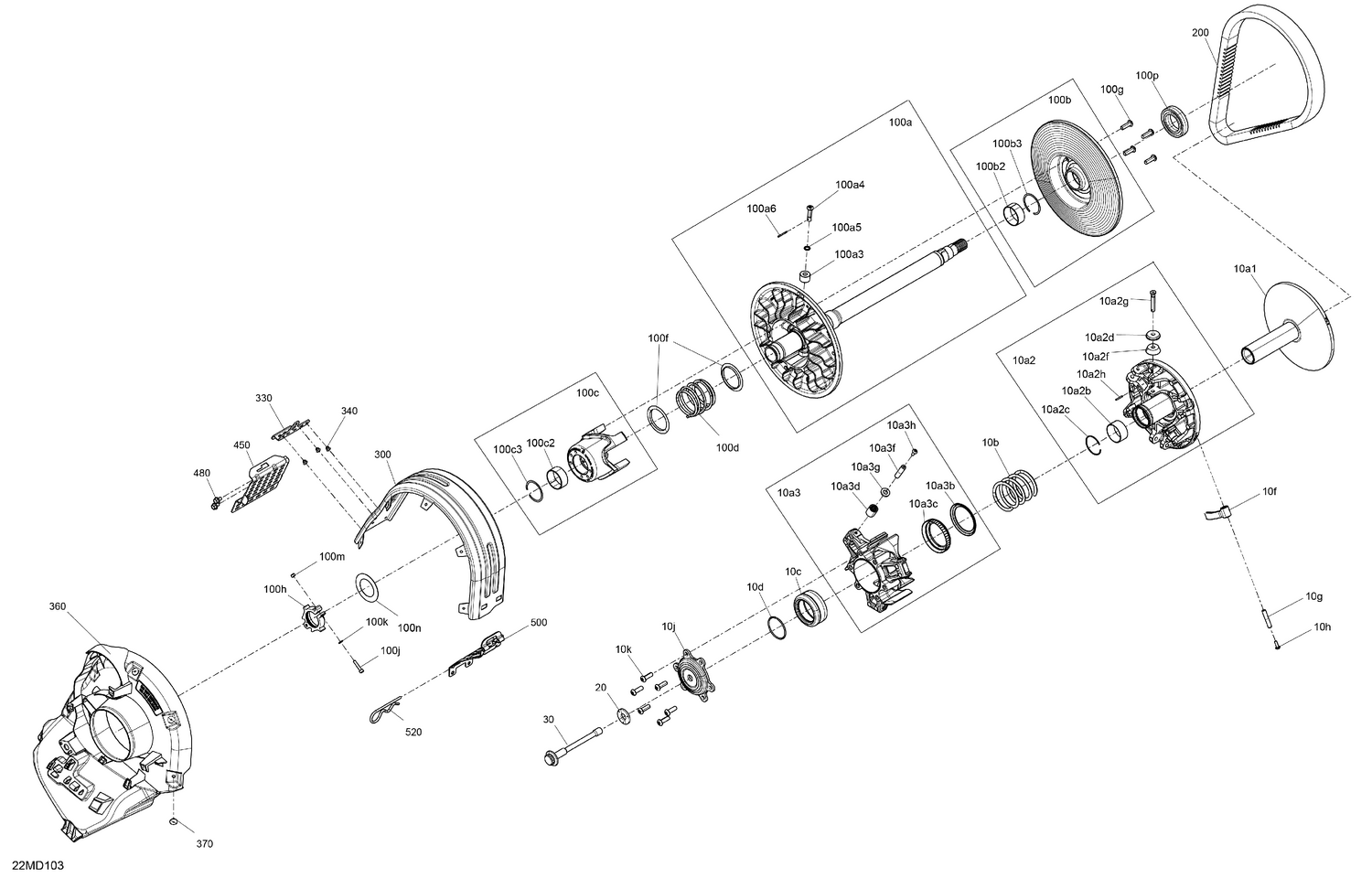

04- Drive - Pulley — Parts Catalog

Parts (49)

Ref	Part Number	Description
10a1	417224210	Fixed Flange Ass'y
10a2b	293250389	Bushing
10a2c	293370137	Circlip
10a2d	417224825	Interior Pulley Roller
10a2f	417224916	Pulley Roller Ext
10a2g	417224510	Pin
10a2h	250400101	Spring Pin 2.6MM X 20.5MM
10a3b	417224910	Stopper Spring
10a3c	417224614	Spring Guide
10a3d	417224861	Roller Pulley Ass'y
10a3f	417224204	Axle - 10mm
10a3g	417224868	Thrust Washer
10a3h	250000763	Torx-Truss M/S M5 X 14 S.Grip
10b	417224330	Clutch Spring
10c	417224003	Seat Spring
10d	293370116	Circlip
10f	417224290	Ramp 880 Ass'y
10g	417224694	Pin Ramp
10h	250000763	Torx-Truss M/S M5 X 14 S.Grip
10j	417224680	Coupling Flange
10k	250000757	Button Head Torx Screw M8 X 25 S.Gr
20	250200144	Conical Spring Washer M14
30	417300522	Pulley Drive Bolt M14 X 144
100a3	417127016	Pulley Roller
100a4	417127294	Pivot Stud
100a5	250200009	Lock Washer 8 mm
100a6	250400070	Spring Pin
100b2	417127318	Bushing ID 41mm OD 45mm X 19mm L
100b3	293370049	Circlip
100c2	417127318	Bushing ID 41mm OD 45mm X 19mm L
100c3	293370049	Circlip
100d	417127137	Green, Spring
100f	417127116	Swivel Abutment
100g	250000757	Button Head Torx Screw M8 X 25 S.Gr
100h	415129604	Calibration Ass'y
100j	250000981	Socket Screw M5 X 25
100k	234051410	Flat Washer M5
100m	232551414	Elastic Stop Nut M5
100n	417127155	Washer
100p	504152574	Ball Bearing
200	417300571	Drive Belt
300	417300620	Belt Guard
330	417300525	Front Retaining Hook
340	390909200	Avex Rivet
360	417300609	CVT Cooling Duct
370	293150291	Black, Pop Rivet 3/16 X ,425
450	417300583	Front Guard Support
480	207561044	Flange Screw M6 X 10, Scotch Grip
500	417300633	Rear Guard Support
