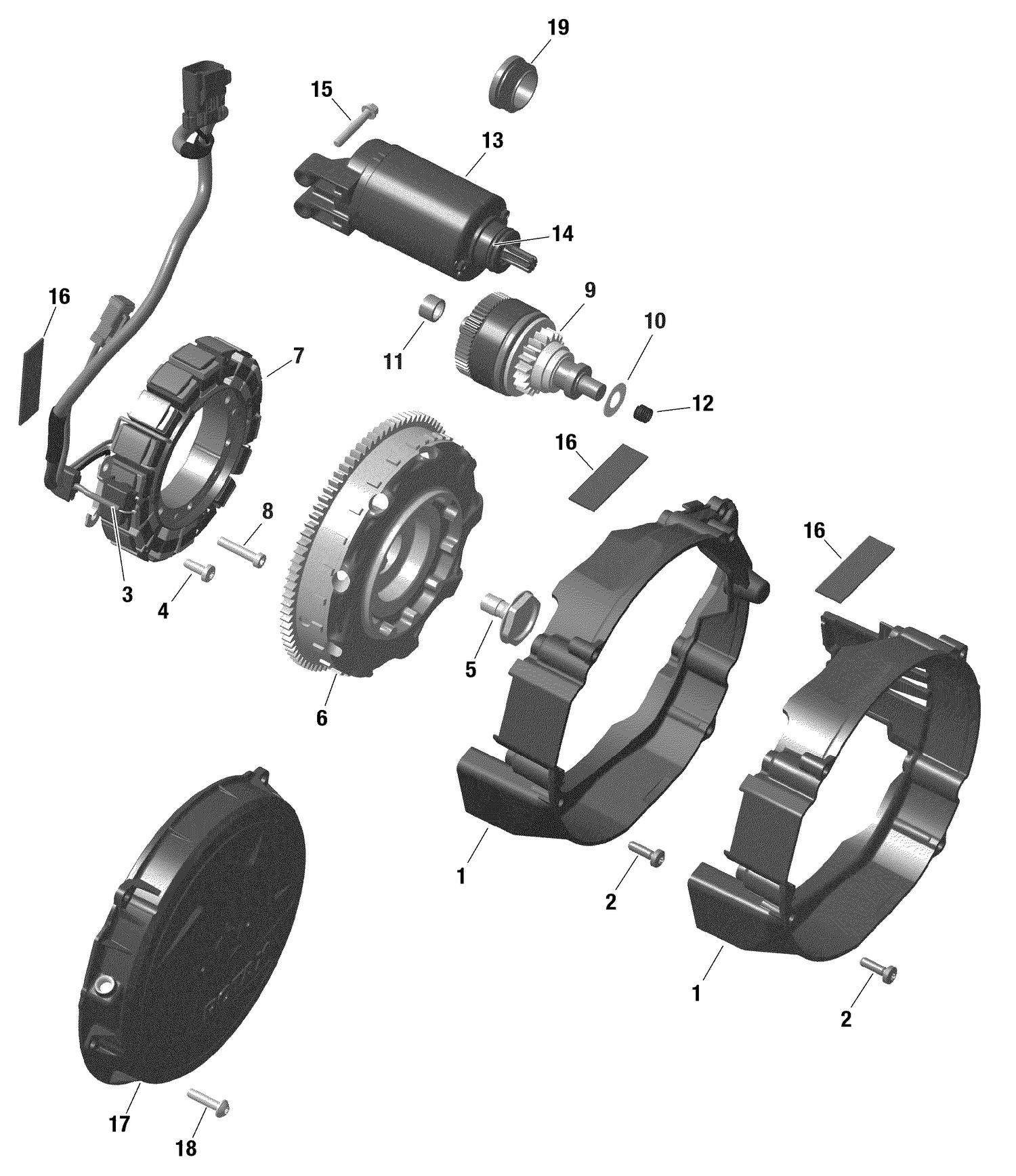

| Ref | Part Number | Description |
|---|
| 1 |
420911855 |
Ignition Housing This part replaces 420911851. |
| 2 |
420441386 |
Torx Flange Screw M6 X 20 |
| 3 |
420966844 |
Pickup Ass'y This part replaces 420966841. |
| 4 |
420640324 |
Torx Screw M6 X 16 |
| 5 |
420840851 |
Collar Hex Screw M12 X 25 |
| 6 |
420866046 |
Magneto Flywheel This part replaces 420864436. |
| 7 |
420864427 |
Stator Ass'y 55V/1300W This part replaces 420864420. |
| 8 |
420540000 |
Allen Screw M6 x 30 |
| 9 |
Not |
Available As Spare Part - Non Applicable |
| 10 |
Not |
Available As Spare Part - Non Applicable |
| 11 |
Not |
Available As Spare Part - Non Applicable |
| 12 |
Not |
Available As Spare Part - Non Applicable |
| 13 |
Not |
Available As Spare Part - Non Applicable |
| 14 |
Not |
Available As Spare Part - Non Applicable |
| 15 |
Not |
Available As Spare Part - Non Applicable |
| 16 |
420201360 |
Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
| 17 |
Not |
Available As Spare Part - Non Applicable |
| 18 |
420940431 |
Plastite Screw |
