Home / BRP / JOHNSON / 2006 / 40 / BJ40PL4SDR / GEARCASE

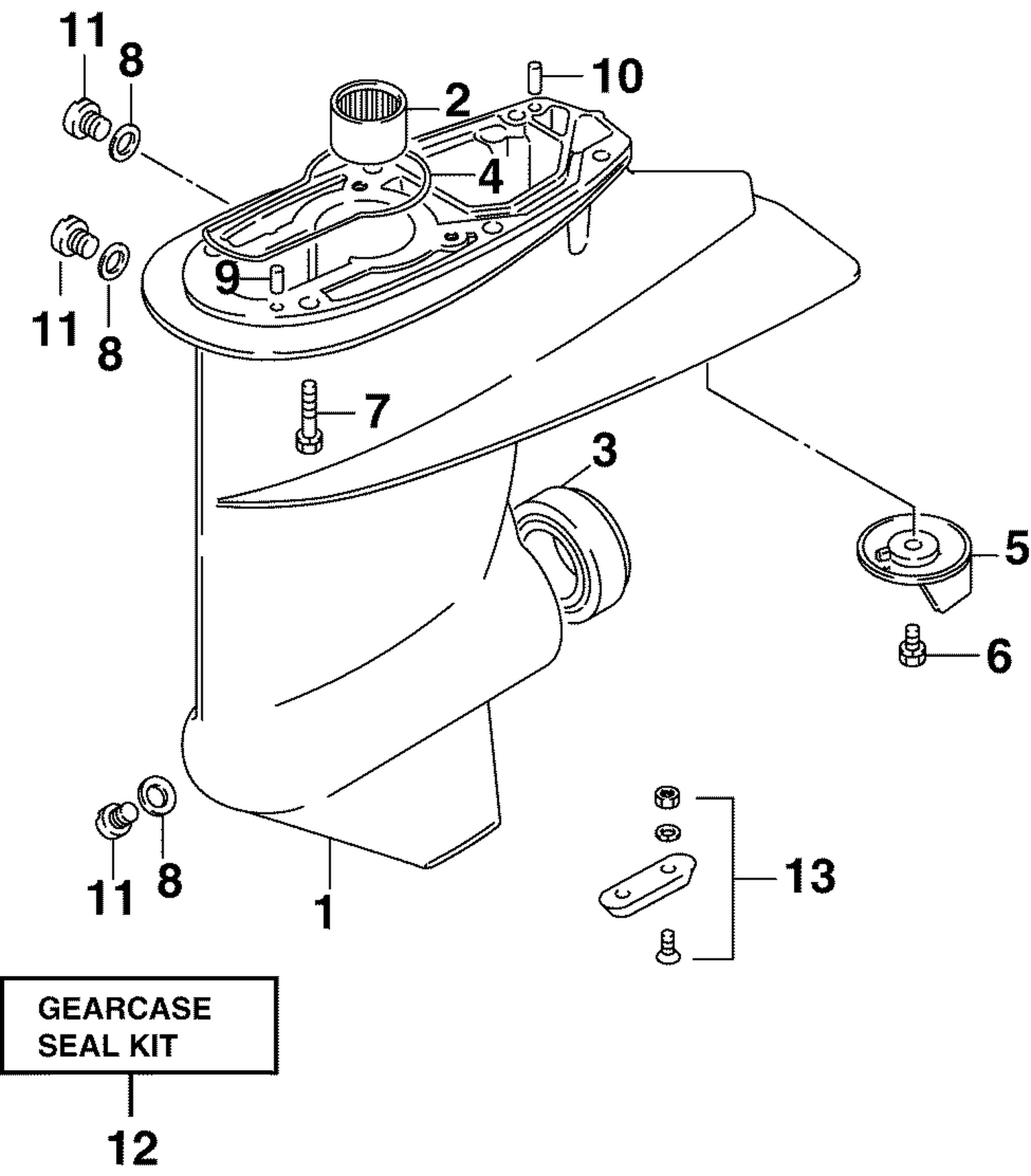

GEARCASE

GEARCASE

Parts (8)

RefPart NumberDescription
1 5036711 HSG & BRG Assy, GEARCASE
1A 5034492 COMPLETE GEARCASE Assy
5 5031536 TAB, TRIM
6 5031215 BOLT (8X16)
7 5036712 BOLT (8X45mm)
9 5031246 PIN (6X17mm)
10 5031247 PIN (6X23mm)
11 5030094 BOLT (10X7.5mm)
