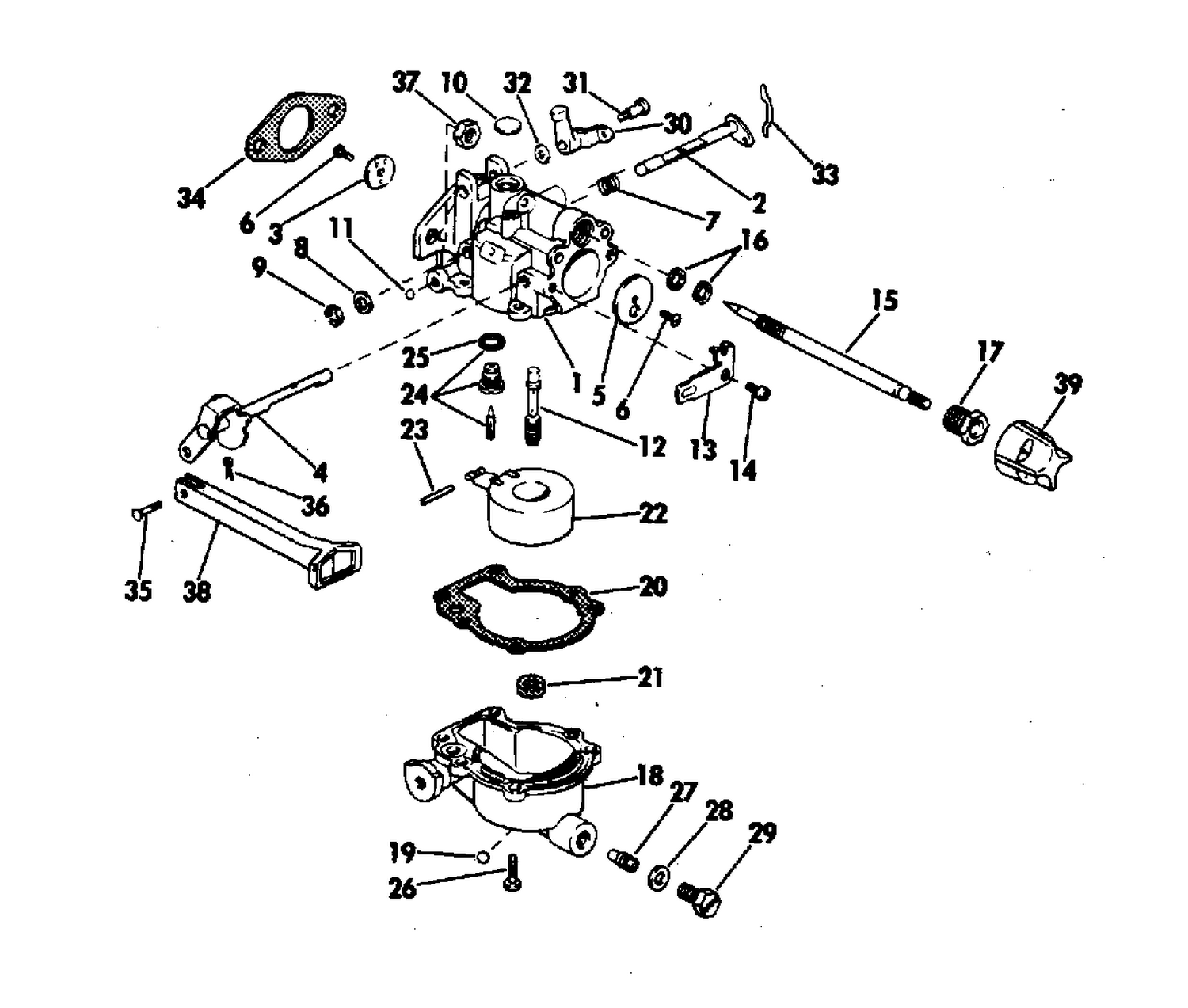

| Ref | Part Number | Description |
|---|
| 1 |
0383662 |
BODY ASSY |
| 3 |
0311756 |
THROTTLE VALVE |
| 4 |
0380225 |
CHOKE SHAFT AND LEVER |
| 5 |
0313588 |
VALVE, Choke |
| 9 |
0203949 |
E RING LINK This part replaces 0202755. |
| 12 |
0315139 |
NOZZLE, High speed |
| 13 |
0311348 |
SPRING, Choke |
| 14 |
0306373 |
COTTER PIN, Reverse lock |
| 15 |
0313240 |
NEEDLE, Slow speed |
| 18 |
0379687 |
FLOAT CHAMBER |
| 21 |
0302984 |
GASKET |
| 23 |
0300096 |
HINGE PIN |
| 26 |
0307045 |
NOZZLE, High speed |
| 27 |
0315140 |
ORIFICE PLUG |
| 29 |
0307832 |
PLUG, Screw |
| 30 |
0312832 |
CAM FOLLOWER |
| 33 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 34 |
0303437 |
GASKET |
| 35 |
0382778 |
PIN, Solenoid This part replaces 0303738. |
| 36 |
0301912 |
COTER PIN |
| 37 |
0306397 |
NUT |
| 38 |
0205500 |
KNOB, Choke |
| 0383661 |
0383661 |
CARBURETOR ASSEMBLY COMPLETE |
