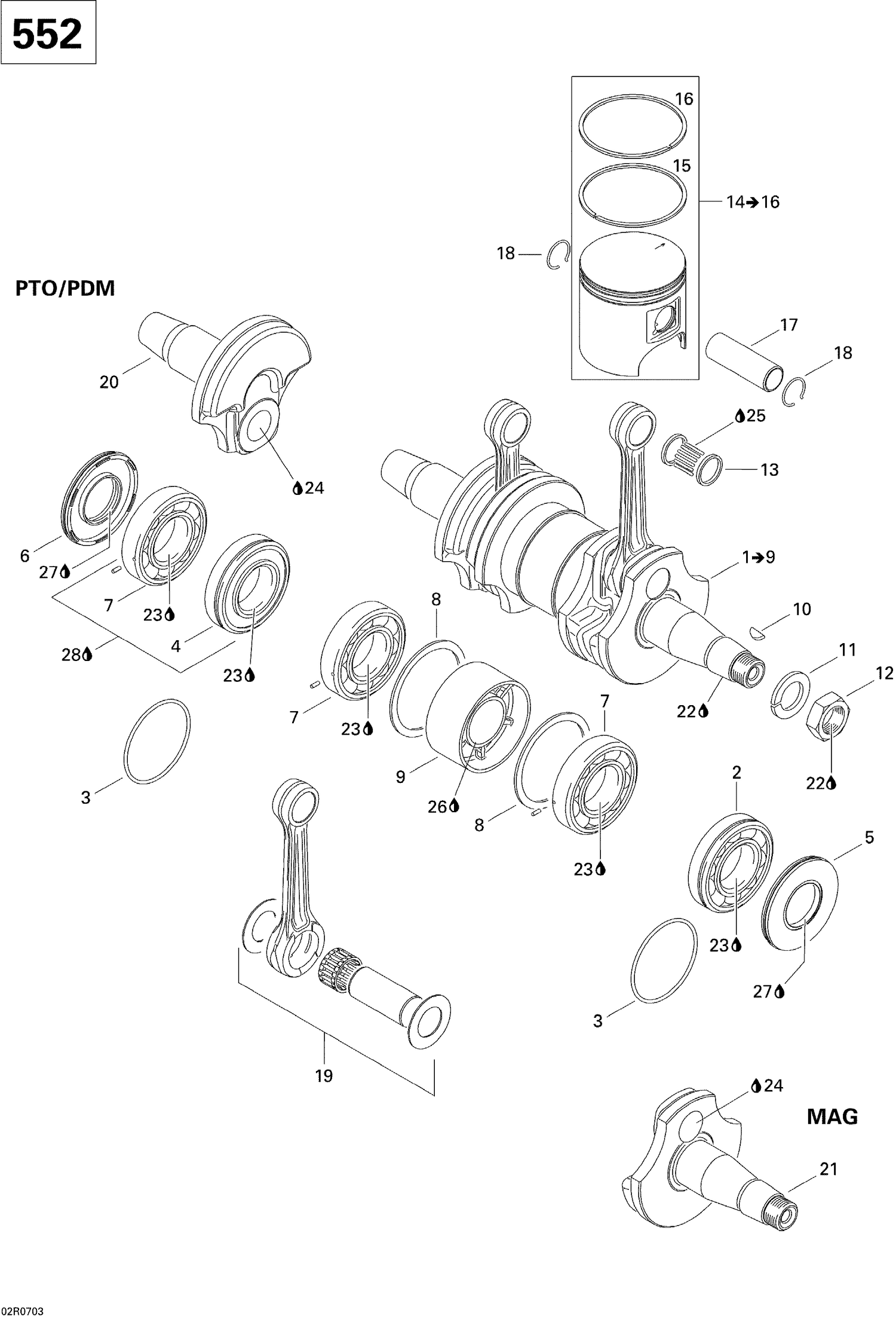

| Ref | Part Number | Description |
|---|
| 2 |
420832571 |
Ball Bearing |
| 3 |
293300022 |
O-Ring 64 mm |
| 4 |
420832632 |
Ball Bearing This part replaces 420832639. |
| 5 |
420831952 |
Oil Seal |
| 6 |
420831955 |
Oil Seal |
| 7 |
420832573 |
Ball Bearing |
| 8 |
420927710 |
Retaining Disk |
| 9 |
420850149 |
Labyrinth Sleeve |
| 10 |
420246055 |
Woodruff Key |
| 11 |
420945759 |
Lock Washer |
| 12 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 13 |
420832420 |
NEEDLE BEARING - Call your local BRP dealership |
| 15 |
420815300 |
Rectangular Ring 76 mm |
| 15 |
420815301 |
Rectangular Ring 76.25 mm |
| 15 |
420815302 |
Rectangular Ring 76.50 mm |
| 16 |
420815155 |
Semi-trapez Ring, 76 mm |
| 16 |
420815156 |
Semi-trapez Ring, 76.25 mm |
| 16 |
420815157 |
Semi-trapez Ring 76.50 mm |
| 17 |
420916407 |
Piston Pin This part replaces 420916405. |
| 18 |
420845106 |
Piston Circlip |
| 19 |
420889064 |
Rod Repair Kit |
| 20 |
Not |
Available As Spare Part - Crankshaft PTO Side |
| 21 |
Not |
Available As Spare Part - Crankshaft Mag Side |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 24 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 25 |
779119 |
NEEDS DESCRIPTION This part replaces 413802900. |
| 26 |
Not |
Available As Spare Part - Engine Oil, Mineral, Api Sj Sae 10w40 |
| 27 |
420899271 |
Petamo Grease, Ghy133n, 400 G |
