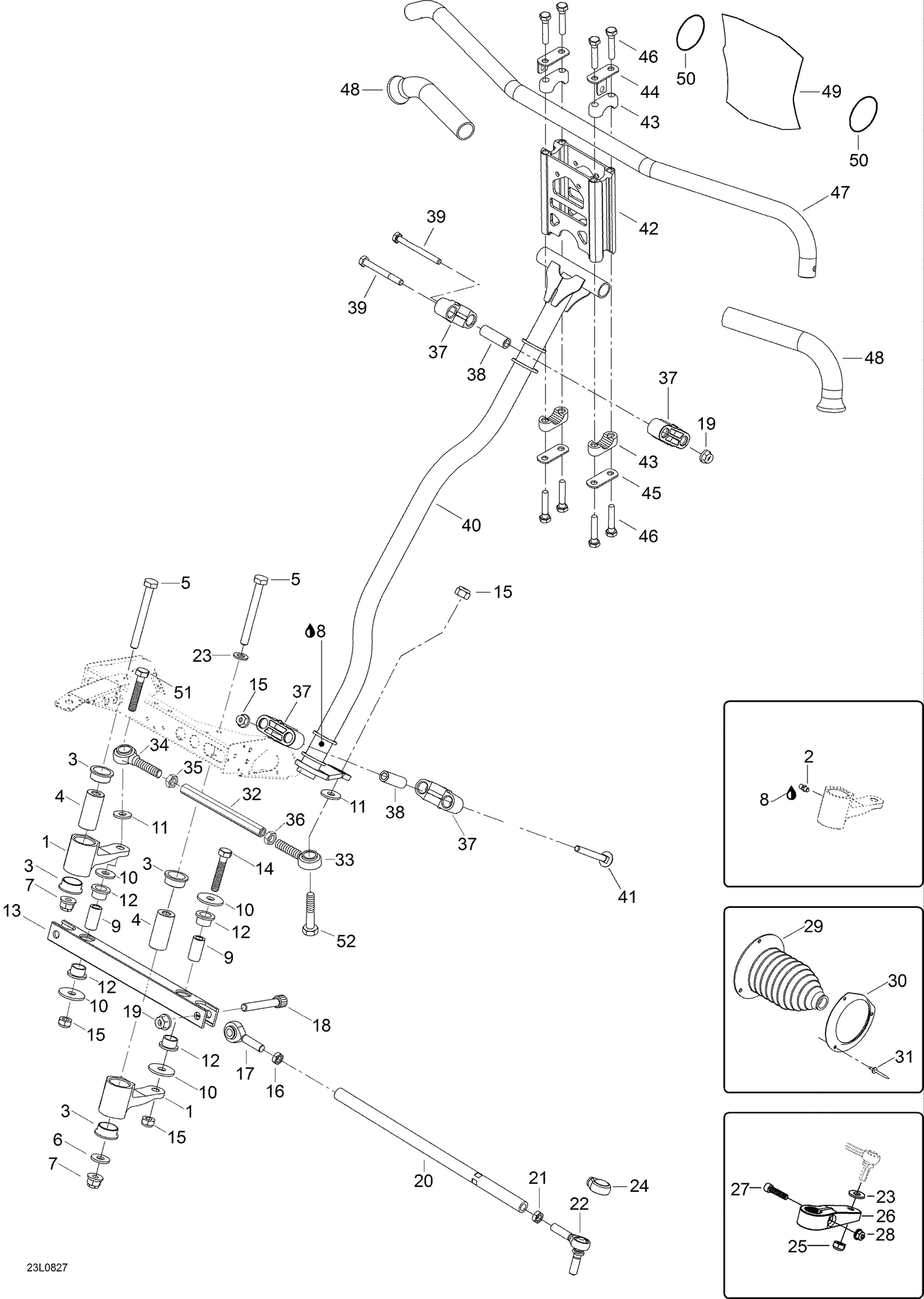

07- Steering System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152123 | LH SWIVEL ARM - Call your local BRP dealership |
| 1 | 506152124 | RH SWIVEL ARM - Call your local BRP dealership |
| 2 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 3 | 415041100 | CUSHION - Call your local BRP dealership |
| 4 | 506151272 | SWIVEL PIVOT - Call your local BRP dealership |
| 5 | 40021 | Hex. screw M10 x 70 |
| 6 | 20105 | Washer A10,5 |
| 7 | 33012 | Elastic stop nut M10 |
| 8 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 9 | 506151273 | Pivot bar |
| 10 | 250200014 | Flat Washer This part replaces 506151251. |
| 11 | 31014 | Washer |
| 12 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 13 | 605349868 | Bar-swivel |
| 14 | 40017 | Screw M10 x 50 |
| 15 | 33055 | Elastic flanged nut M8 |
| 16 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 17 | 506151496 | LH BALL JOINT - Call your local BRP dealership |
| 18 | 40395 | Socket head screw M8 x 35 |
| 19 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 20 | 605353870 | Tie-rod |
| 21 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 22 | 506151491 | R.H. Joint ball |
| 23 | 20105 | Washer, hardened 10mm |
| 24 | 506151650 | PROTECTION CAP - Call your local BRP dealership |
| 25 | 33023 | Elastic stop nut M10 |
| 26 | 506144800 | R.H. steering arm |
| 26 | 506144900 | L.H. steering arm |
| 27 | 40843 | Socket head screw M8 x 35 |
| 28 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 29 | 605252101 | Tie-rod cap |
| 30 | 605351469 | Retainer ring |
| 31 | 36009 | Rivet |
| 32 | 605353888 | Tie-rod |
| 33 | 311031L | L.H. Ball joint |
| 34 | 311031R | R.H. Ball joint |
| 35 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 36 | 3310934L | L.H. Nut M10 |
| 37 | 506150400 | Housing half |
| 38 | 506150500 | Housing bushing |
| 39 | 40011 | Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership |
| 40 | 605354605 | Main tube |
| 41 | 207787044 | Screw M8 x 70 |
| 42 | 506152457 | Extension 130 mm. This part replaces 506152109. |
| 43 | 709400919 | Steering Support This part replaces 506151622. |
| 44 | 605354884 | L.H. Bracket |
| 44 | 605354886 | R.H. Bracket |
| 45 | 709400509 | Stiffner This part replaces 506151196. |
| 46 | 250000074 | Hex. screw M8 x 40 |
| 47 | 605355797 | Handle bar |
| 48 | 605355701 | R.H. Grip/L.H. Grip |
| 49 | 605352881 | Cap |
| 50 | 12402 | O-ring |
| 51 | 40020 | Screw M10 x 65 |
