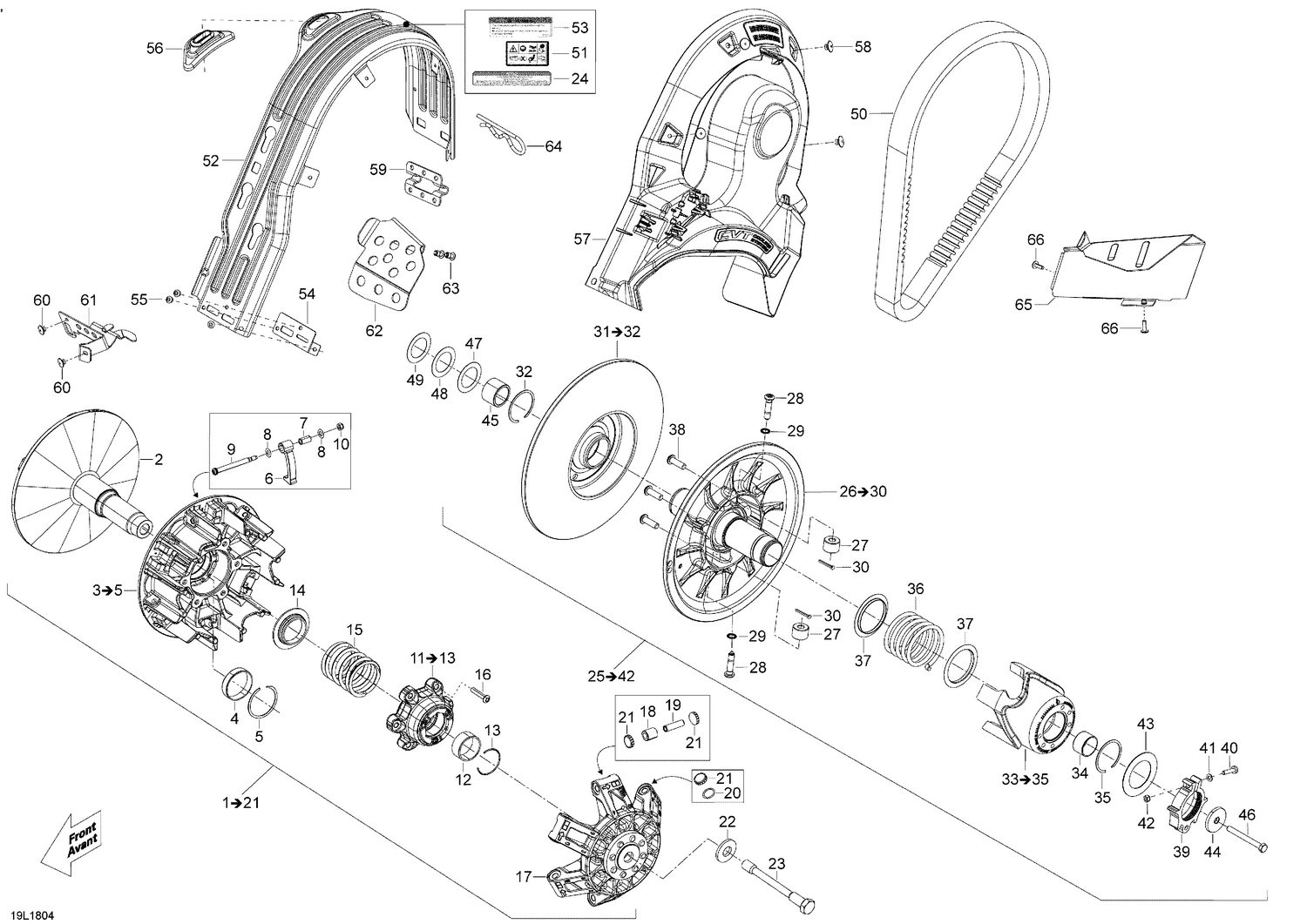

05- Pulley - 69 Ranger - 1200 4-TEC

Parts (50)

Ref	Part Number	Description
2	417224091	Fixed Flange Ass'y
3	417224044	Sliding Flange Ass'y
8	417223660	Washer Stopper
9	417223694	Axle Ramp
10	232551414	Elastic Stop Nut M5
11	417223650	Spring Cover Ass'y
14	417223752	Spring Seat
15	417223745	Spring (Red / Red, 356-667N / 80-150lbs)
16	250000580	Torx Screw M6 X 30
17	417223865	Governor Cup Ass'y
18	417223767	Roller
19	417223257	Roller Axle
20	293300185	O-Ring
21	417223919	Slider Shoe
22	250200144	Conical Spring Washer M14
23	417300432	Drive Pulley Bolt
24	516005503	Decal, Notice, Drive Pulley Bolt
26	417127466	Fixed Flange Ass'y
31	417127366	Sliding Flange Ass'y
33	417127477	Cam Ass'y (44/40º ), No bump
36	417127039	Spring (Black, 700-1350N / 157-303lbs)
37	417127116	Swivel Abutment
38	250000784	Torx Screw M8 x 50, Scotch Grip
39	415129604	Pulley Adjuster Ass'y
40	205052544	Socket Head Screw M10 x 1.5
41	234051410	Flat Washer M5
42	232551414	Elastic Stop Nut M5
43	417127155	Washer
44	517302322	Vahvike aluslevy
45	417300453	Sleeve
46	207287544	Hex. Cap Screw M8 X 75
47	417300252	Spacer
48	417300265	Spacer
49	504112000	Justering bricka
50	417300551	Drive Belt This part replaces 417300383.
51	516003919	Warning label (EU models)
52	417300382	Belt Guard
53	516006900	Driven Pulley Shield Warning Decal
54	417300380	Reinforcement
55	390909200	Avex Rivet
56	417300381	Guide rubber
57	417300441	Reinforcement
58	293150103	Pop Rivet 3/16
59	417300413	Belt Guard Bracket
60	293150104	Pop Rivet 3/16
61	417300373	Belt Guard Bracket
62	518327035	Brake Hose Cover
63	293150163	Rivet Hucklok
64	114045200	Hair Pin
67	605636003	Clinch Nut M6 Hexsert
