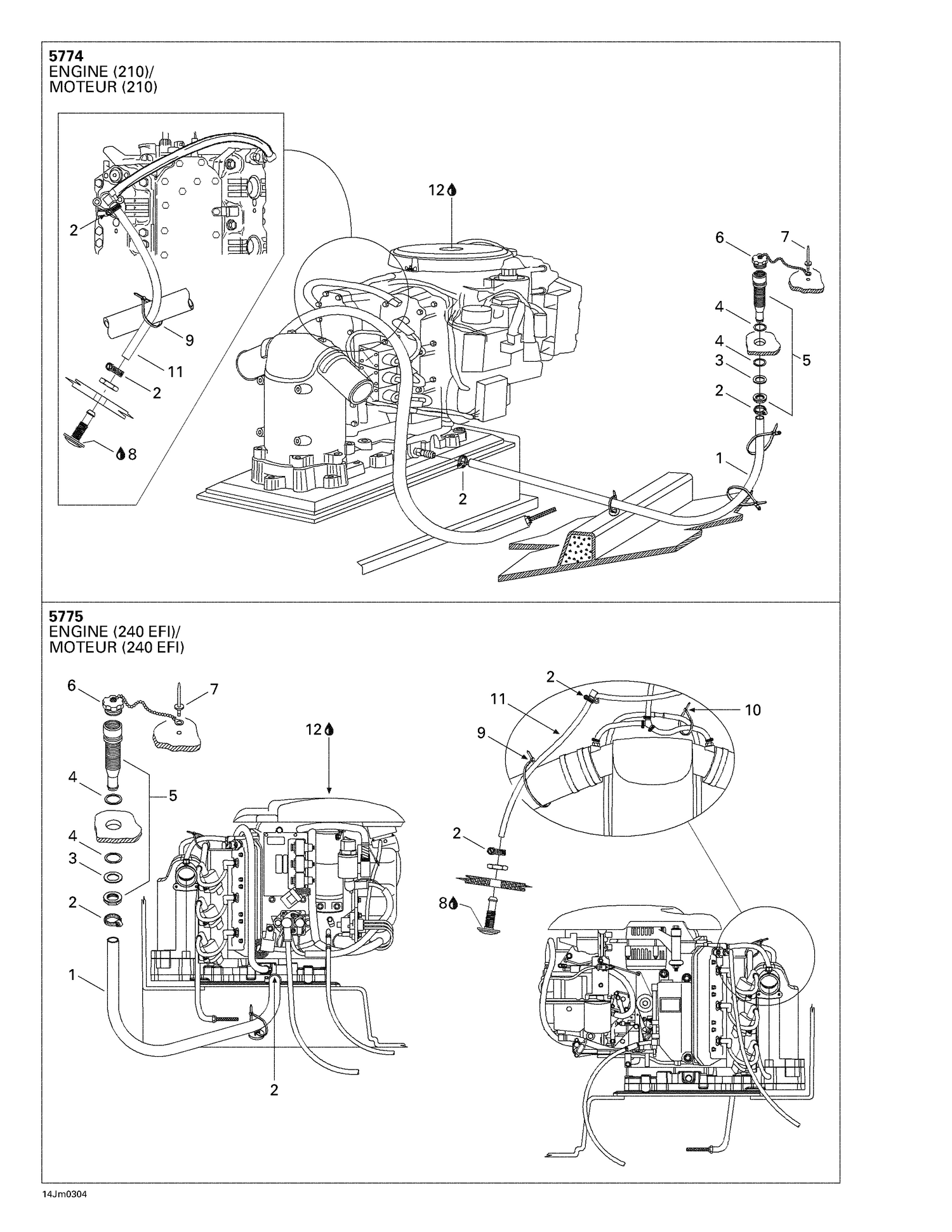

01- Cooling System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704394 | Was 276000001 Hose 12.5 mm |
| 2 | 293650016 | Tridon Clamp |
| 3 | 293050003 | WASHER - Call your local BRP dealership |
| 4 | 293250028 | GASKET - Call your local BRP dealership |
| 5 | 293710081 | FITTING - Call your local BRP dealership |
| 6 | 293000055 | PLUG - Call your local BRP dealership |
| 7 | 293150023 | RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 8 | 296000309 | Silicone Sealant 51388, 300 ml |
| 9 | 293750008 | Tie Wrap 368 mm |
| 11 | 204250093 | Hose, Meter |
