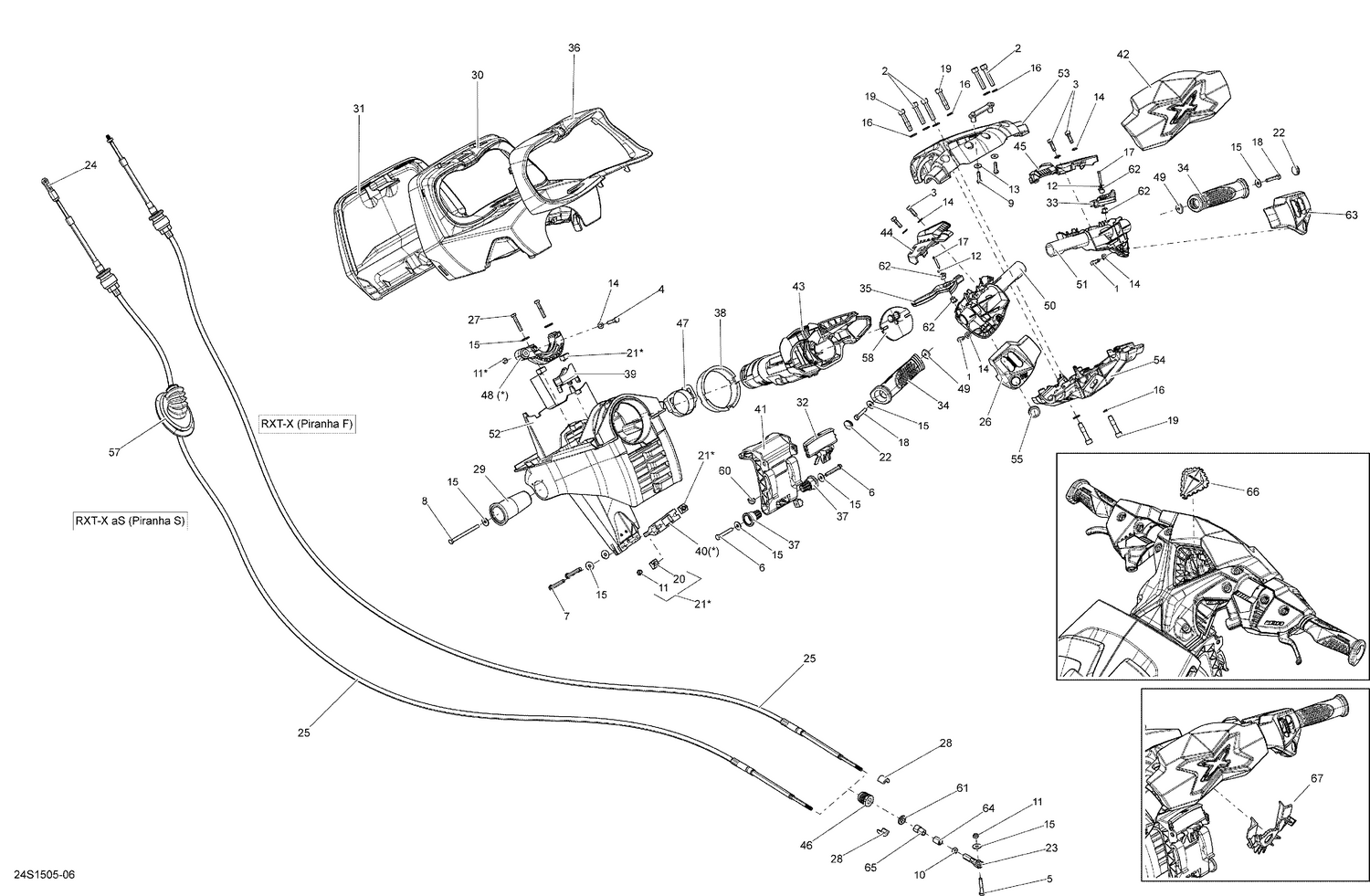

07- Steering 24S1505
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205061660 | Socket Screw M6 X 16 |
| 2 | 205084060 | SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 3 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 4 | 207063060 | Hex. Screw M6 X 30 |
| 5 | 207063560 | Hex. Screw M6 X 35 |
| 6 | 207064060 | Hex. Screw M6 X 40 |
| 7 | 207165060 | Hex. Screw M6 X 50 |
| 8 | 207168060 | Hex Screw M6 X 80 |
| 9 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 10 | 211100056 | Hex. Nut 1/4"-28 |
| 11 | 232561200 | Brass Elastic Stop Nut M6 |
| 12 | 234042600 | Flat Washer 4 mm, Stainless |
| 13 | 234052600 | Flat Washer 5 mm, Stainless |
| 14 | 234061600 | Stainless Flat Washer M6 |
| 15 | 234062600 | Flat Washer M6, Stainless |
| 16 | 234080600 | Flat Washer M8, Stainless |
| 17 | 241142560 | Hex. Flange Screw K40 X 25 |
| 18 | 250000002 | Hex. Screw M6 X 30, Scotch Grip |
| 19 | 250000845 | Torx-Button M/S M8 X 40 Stlss S.Gri This part replaces 250000334. |
| 20 | 269500252 | M6 Nut Housing Ass'y |
| 21 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 22 | 277000203 | Black, Cap |
| 23 | 277000775 | Ball Joint |
| 24 | 277001180 | Ball Joint |
| 25 | 277001602 | Steering Cable |
| 26 | 277001794 | LH HOUSING COVER - Call your local BRP dealership |
| 27 | 207163560 | Hex. Screw M6 X 35 |
| 28 | 277001527 | Half Ring |
| 29 | 277001605 | Steering Support Pivot |
| 30 | 277001953 | Gauge Support This part replaces 277001612. |
| 31 | 277001613 | Gauge Support Cover |
| 32 | 277001616 | LOCK - Call your local BRP dealership |
| 33 | 277001944 | Throttle Handle |
| 34 | 277002286 | Handlebar Grip This part replaces 277001624. |
| 35 | 277001945 | Reverse Handle |
| 36 | 277001630 | Gauge Trim, Black |
| 37 | 277001652 | Pivot |
| 38 | 277001653 | Wear Ring |
| 39 | 277001654 | Spacer |
| 40 | 277001655 | Thrust Support Ass'y |
| 41 | 277001658 | Handle Ass'y |
| 42 | 277001683 | Handle Pad |
| 43 | 277001807 | Steering Colomn |
| 44 | 277001686 | LH UPPER HOUSING - Call your local BRP dealership |
| 45 | 277001688 | Upper Housing RH |
| 46 | 277001729 | Steering Cable Lock |
| 47 | 277002318 | Wear Ring This part replaces 277001741. |
| 48 | 277002179 | Support Ass'y This part replaces 277001779. |
| 49 | 277001863 | Insert Grip Handle |
| 50 | 277001950 | LH Lower Housing |
| 51 | 277001951 | RH LOWER HOUSING - Call your local BRP dealership |
| 52 | 277001942 | Steering Support |
| 53 | 277001909 | FRONT EXTENSION BLOC - Call your local BRP dealership |
| 54 | 277001926 | REAR EXTENSION BLOCK - Call your local BRP dealership |
| 55 | 277001887 | Red, Knob Switch |
| 57 | 293720083 | Grommet |
| 58 | 293720086 | Grommet |
| 60 | 293830005 | Rubber Bumper |
| 61 | 293830063 | Rubber Washer |
| 62 | 293900091 | Bushing |
| 63 | 277001718 | RH Housing Cover |
| 64 | 277001582 | Wiper Rod |
| 65 | 277001583 | End Piece |
| 66 | 277001919 | AESTHETIC CAP - Call your local BRP dealership |
