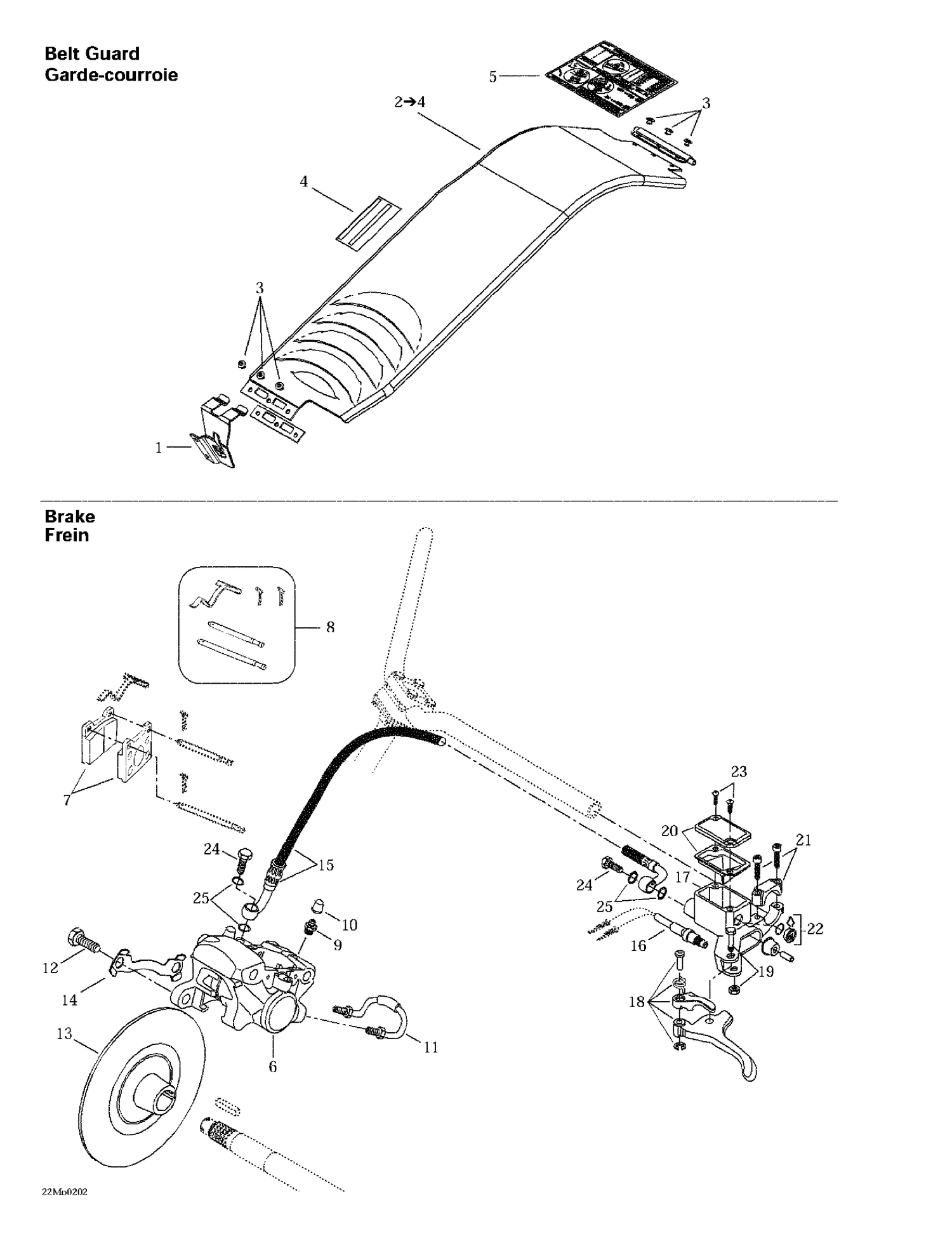

| Ref | Part Number | Description |
|---|
| 1 |
417300001 |
Bracket |
| 3 |
390402200 |
Pop Rivet 3/16" |
| 4 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 5 |
516001285 |
Calibration Label (SPORT) |
| 8 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 9 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 10 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 11 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 12 |
207103544 |
Hex. Screw M10 X 35 |
| 14 |
507032316 |
LOCKING TAB - Call your local BRP dealership |
| 15 |
507032237 |
HOSE - Call your local BRP dealership |
| 16 |
507032366 |
Microswitch This part replaces 507032334. |
| 18 |
507032268 |
BRAKE SHORT LEVER ASSY - Call your local BRP dealership |
| 19 |
415030000 |
Pin Ass'y |
| 20 |
415029900 |
Cap |
| 21 |
507032477 |
Clamp And Screw Kit This part replaces 415029800. |
| 22 |
414990600 |
WINDOW - Call your local BRP dealership |
| 23 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 24 |
414920500 |
Banjo Bolt |
