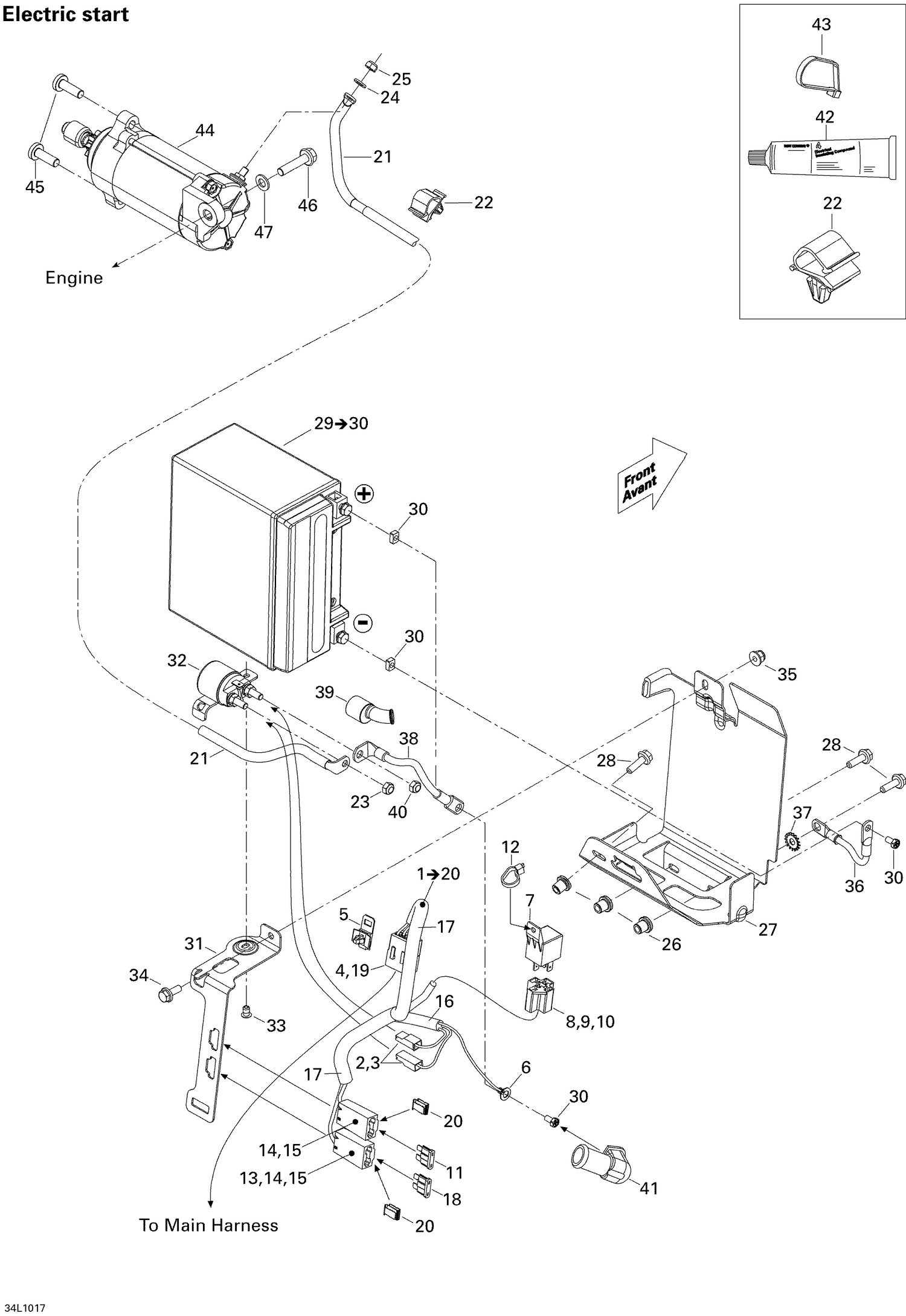

10- Battery And Starter
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 409010100 | Female Terminal |
| 3 | 409010400 | Female Terminal Housing, 1 Circuit |
| 4 | 515175232 | Male Terminal |
| 5 | 515175283 | Housing Support |
| 6 | 278000992 | Open Barrel |
| 7 | 710010053 | RELAY This part replaces 410113200. |
| 8 | 409209900 | Female Housing, 5 Circuits |
| 9 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| 10 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| 11 | 410917200 | Fuse, 30 Amperes |
| 12 | 293750002 | Tie-Rap 142 mm |
| 13 | 409011600 | Female Terminal |
| 14 | 409004200 | Female Terminal |
| 15 | 409004000 | Fuse Holder |
| 16 | 515175442 | Tubing 6 mm |
| 17 | 409901700 | Tubing 9 mm |
| 18 | 278000344 | Fuse, 5 Amperes |
| 19 | 515175817 | Male Terminal Housing, 8 Circuits |
| 20 | 710000992 | Clip |
| 21 | 515177067 | BATTERY WIRE - Call your local BRP dealership This part replaces 515176785. |
| 22 | 515176795 | Tie Rap Mount (Screwable) |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 234061410 | Flat Washer 6 mm |
| 25 | 232561414 | Elastic Stop Nut M6 |
| 26 | 293450275 | Insert |
| 27 | 515176886 | BATTERY SUPPORT ASS'Y - Call your local BRP dealership |
| 28 | 207662044 | Hex. Flange Screw M6 X 20 |
| 30 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 31 | 515177008 | BATTERY STRIP - Call your local BRP dealership This part replaces 515176368. |
| 32 | 515176501 | Starter Relay |
| 33 | 390402200 | Pop Rivet 3/16 |
| 34 | 207661644 | Hex. Flange Screw M6 X 16 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 36 | 515176358 | Ground Wire |
| 37 | 250200041 | Lock Washer Serrated M6 |
| 38 | 515176556 | BATTERY WIRE - Call your local BRP dealership |
| 39 | 515175919 | Protector Cap |
| 40 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710000495 | Protector Cap |
| 42 | 293550004 | Dielectric Grease, 150 g |
| 43 | 293750009 | Tie-Rap 173 mm |
| 43 | 414115200 | Tie-Rap 180 mm |
| 44 | 515178473 | Starter This part replaces 515176858. |
| 45 | 250000752 | Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 46 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip |
