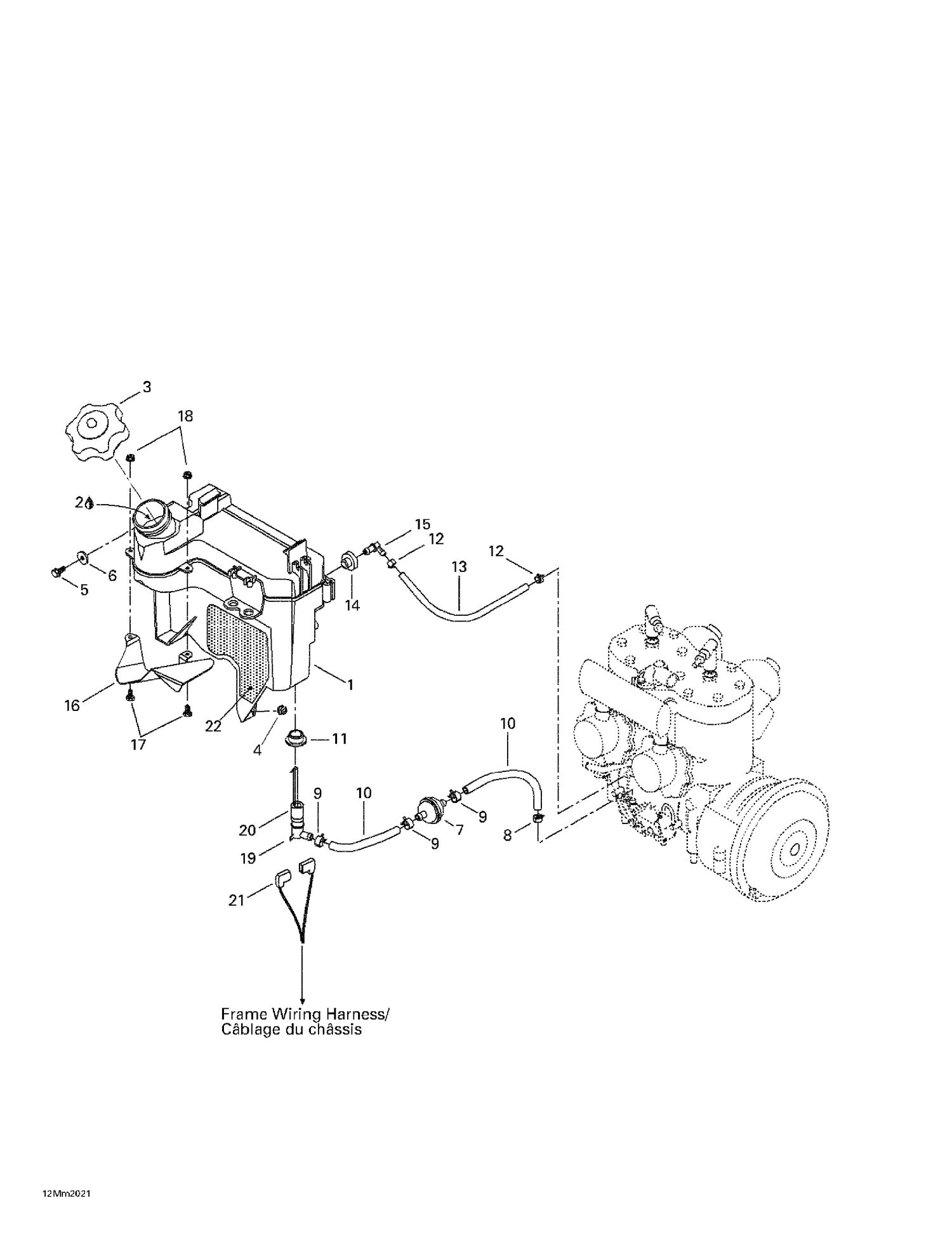

02- Oil Tank
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000028 | Oil Tank |
| 2 | 293600120 | OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 3 | 519000017 | Cap |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 6 | 250200041 | Lock Washer Serrated M6 This part replaces 250200000. |
| 7 | 414536500 | Filter |
| 8 | 414420700 | Spring Clamp |
| 9 | 414415200 | Spring Clamp |
| 10 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 11 | 570023000 | Insulating Ring |
| 12 | 414554800 | Spring Clamp |
| 13 | 219704410 | Polyurethane Hose 10000Mm Long |
| 14 | 709200285 | Grommet This part replaces 570135100. |
| 15 | 414580700 | Male Connector |
| 16 | 519000018 | Deflector |
| 17 | 207151244 | Hex. Screw M5 X 12 |
| 18 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 19 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 20 | 414681900 | Float |
| 21 | 409010300 | Female Terminal |
| 779120 | 2T | Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
