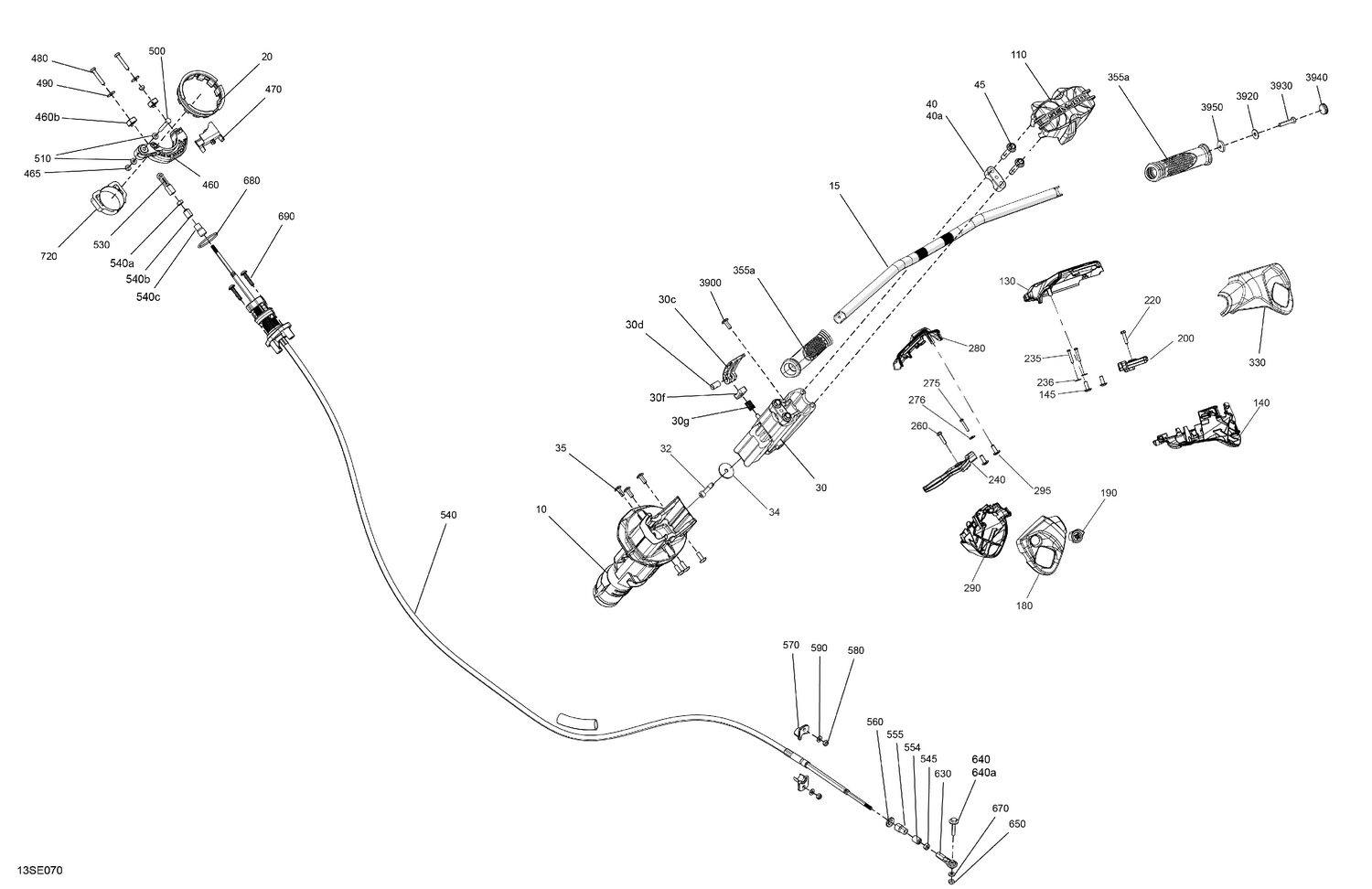

| Ref | Part Number | Description |
|---|
| 10 |
277002263 |
Steering Column |
| 15 |
277002172 |
Brighht White, Handlebar |
| 20 |
277001874 |
Wear Ring |
| 30c |
277002094 |
Anodized Lock Lever |
| 30d |
506153052 |
Lever Pin |
| 30f |
506153045 |
Compression Bloc |
| 30g |
506152820 |
Spring |
| 32 |
205583060 |
Socket Head Screw M8 X 30, Scotch Grip |
| 34 |
250200188 |
Flat Washer M8.4 x 40 |
| 35 |
250000922 |
Torx Truss Screw M6 X 16 |
| 40a |
506152751 |
Steering Support |
| 45 |
250000834 |
Hex. Screw Flange DIN.6921 S.Grip |
| 110 |
277002005 |
Deep Black, Steering Pad |
| 130 |
277002040 |
RH Upper Housing |
| 140 |
277002036 |
RH Lower Housing |
| 145 |
250000922 |
Torx Truss Screw M6 X 16 |
| 180 |
277002314 |
LH Cover |
| 190 |
277002327 |
Red Button Switch |
| 200 |
277002138 |
Hand Lever Accelerator |
| 220 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 260 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 280 |
277002041 |
LH Upper Housing |
| 290 |
277002035 |
LH Lower Housing |
| 295 |
250000922 |
Torx Truss Screw M6 X 16 |
| 330 |
277002288 |
RH Cover |
| 355a |
277002334 |
Can-Am Red, Handlebar Grip |
| 460b |
269502544 |
Nut Housing M6 |
| 465 |
233261200 |
Nut Flange Elastic M6 |
| 470 |
277001654 |
Spacer |
| 480 |
207163560 |
Hex. Screw M6 X 35 |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
207064060 |
Hex. Screw M6 X 40 |
| 510 |
234061600 |
Stainless Flat Washer M6 |
| 530 |
277001180 |
Ball Joint |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 540b |
277001582 |
Wiper Rod |
| 540c |
277001583 |
End Piece |
| 545 |
211100056 |
Hex. Nut 1/4"-28 |
| 554 |
277001582 |
Wiper Rod |
| 555 |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
232561200 |
Brass Elastic Stop Nut M6 |
| 590 |
234061600 |
Stainless Flat Washer M6 |
| 630 |
277000775 |
Ball Joint |
| 640a |
250000969 |
Hex Screw SEMS M6X35, SS |
| 650 |
232561200 |
Brass Elastic Stop Nut M6 |
| 670 |
234061600 |
Stainless Flat Washer M6 |
| 680 |
293300176 |
O-Ring |
| 690 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 720 |
277002318 |
Wear Ring |
| 3900 |
250000922 |
Torx Truss Screw M6 X 16 |
| 3920 |
234062600 |
Flat Washer M6, Stainless |
| 3930 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 3940 |
277000203 |
Black, Cap |
