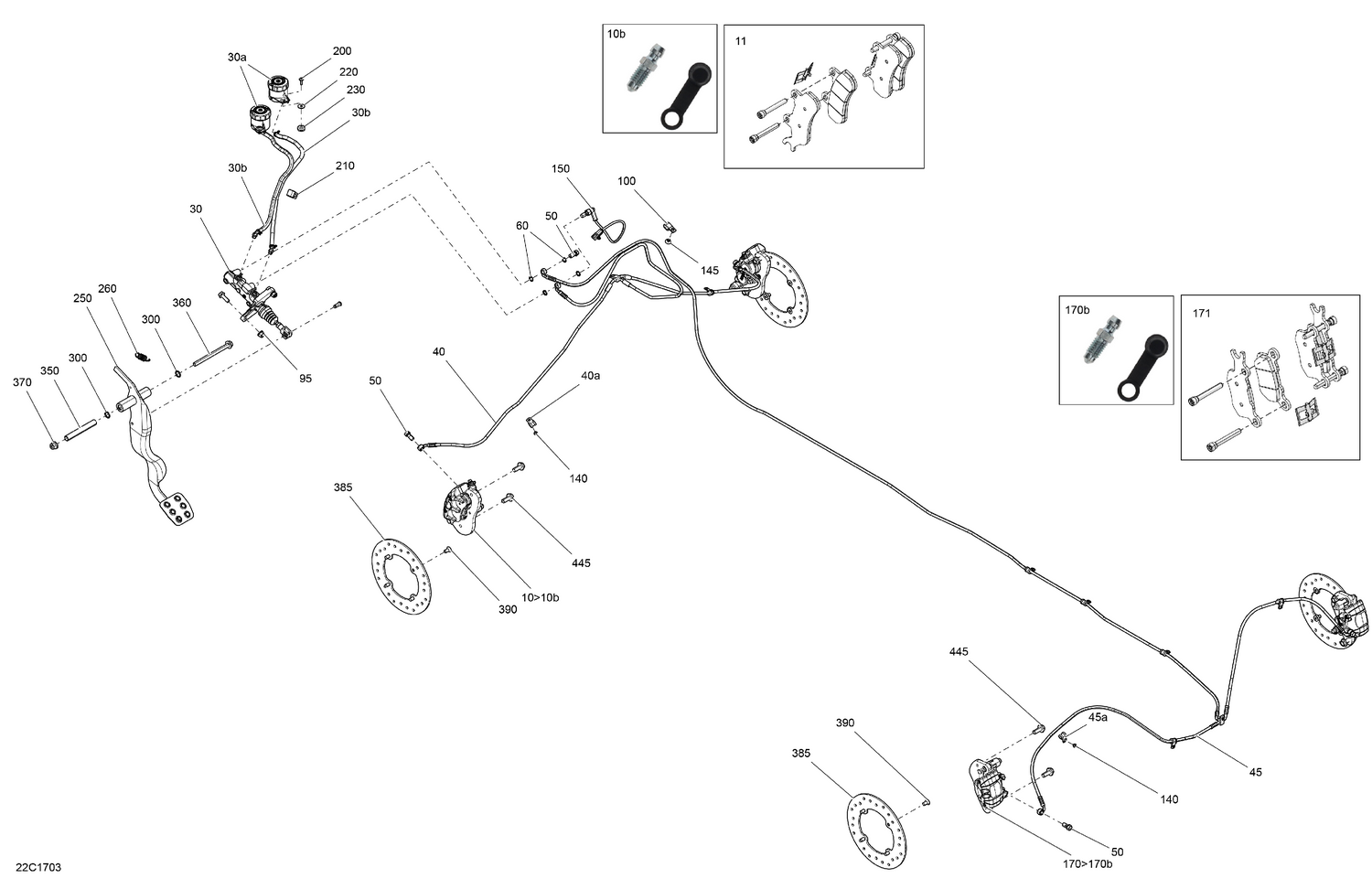

06- Brakes - All Models
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 30a | 705601020 | Oil Tank |
| 30b | 705601019 | Oil Housing Hose |
| 40a | 293650256 | Clamp This part replaces 715900250. |
| 45a | 293650256 | Clamp This part replaces 715900250. |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer This part replaces 705600310. |
| 95 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100 | 293650220 | Clamp |
| 140 | 390402200 | Pop Rivet 3/16" |
| 145 | 293150104 | Pop Rivet 3/16" |
| 150 | 705601250 | Brake Switch |
| 170b | 705601017 | Bleeding Screw |
| 171 | 703501200 | Rear Brake Pad Set |
| 200 | 250000720 | Torx Screw K50 X 16 |
| 210 | 515175507 | Open Clamp |
| 220 | 234062410 | Flat Washer 6 mm |
| 230 | 414036300 | Grommet |
| 250 | 705601777 | Brake Pedal This part replaces 705601306. |
| 260 | 705600792 | Brake Pedal Spring |
| 300 | 293300144 | O-Ring |
| 350 | 705601373 | Inside Sleeve |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 385 | 705601511 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
