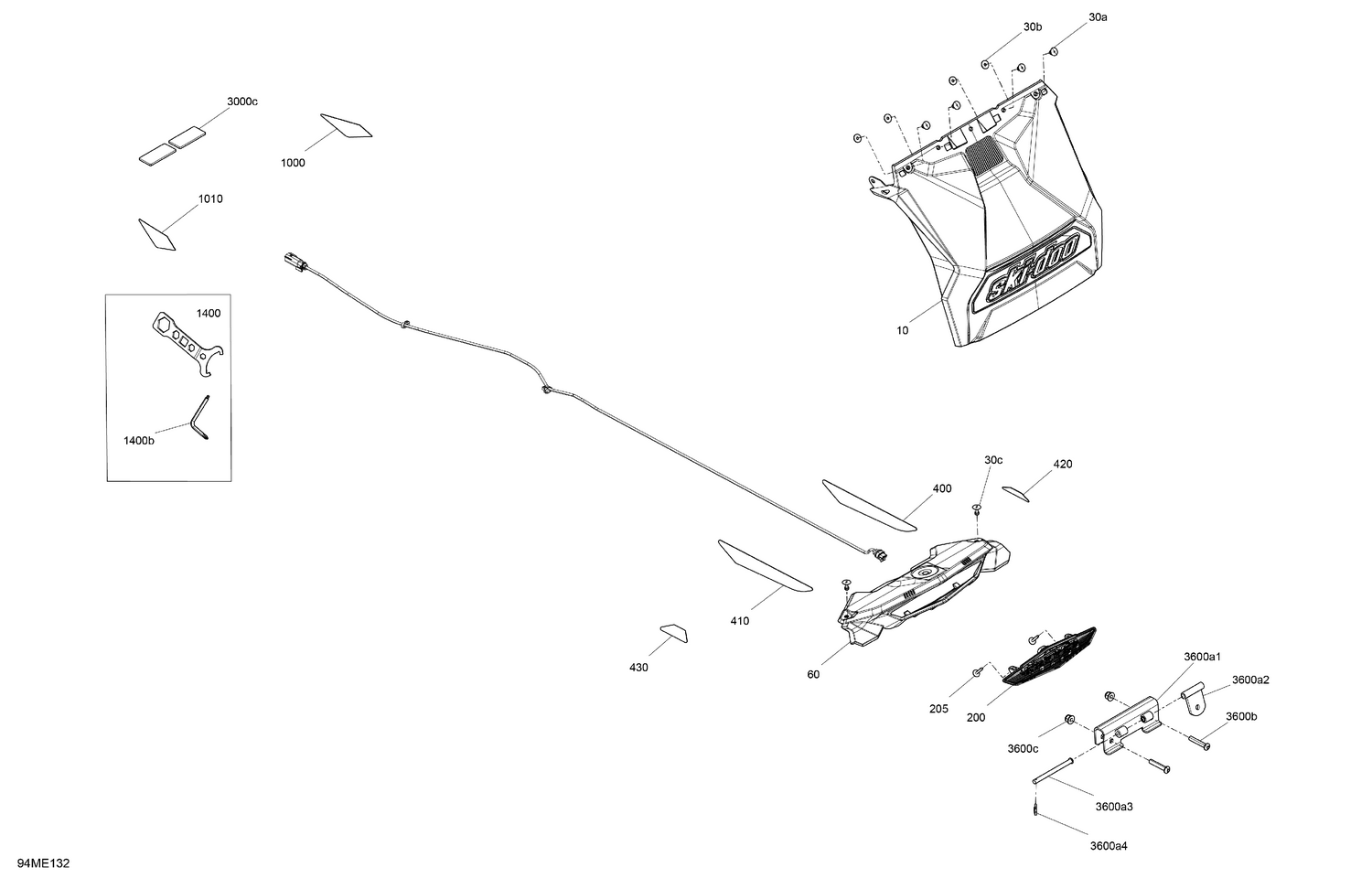

| Ref | Part Number | Description |
|---|
| 10 |
520001863 |
Snow Gard Ass'y |
| 30a |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 30b |
517124300 |
Washer |
| 30c |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 60 |
520001487 |
Light Fairing |
| 200 |
520002710 |
Tail Light |
| 205 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 400 |
861805523 |
Yellow, LH/RH Rear Reflector Kit |
| 410 |
861805523 |
Yellow, LH/RH Rear Reflector Kit |
| 420 |
520001862 |
Amber, LH Rear Reflector |
| 430 |
520001861 |
Amber, LH Rear Reflector |
| 1000 |
520002343 |
RH Front Reflector |
| 1010 |
520002344 |
LH Front Reflector |
| 1400b |
520001815 |
Key |
| 3000c |
520002680 |
Amber, Reflector |
| 3600a1 |
511000768 |
Support |
| 3600a2 |
511000521 |
Hitch Plate Welded |
| 3600a3 |
511001451 |
Lock Pin |
| 3600a4 |
371800200 |
Cotter Pin |
| 3600b |
205484566 |
Socket Head Screw M8 X 45 |
