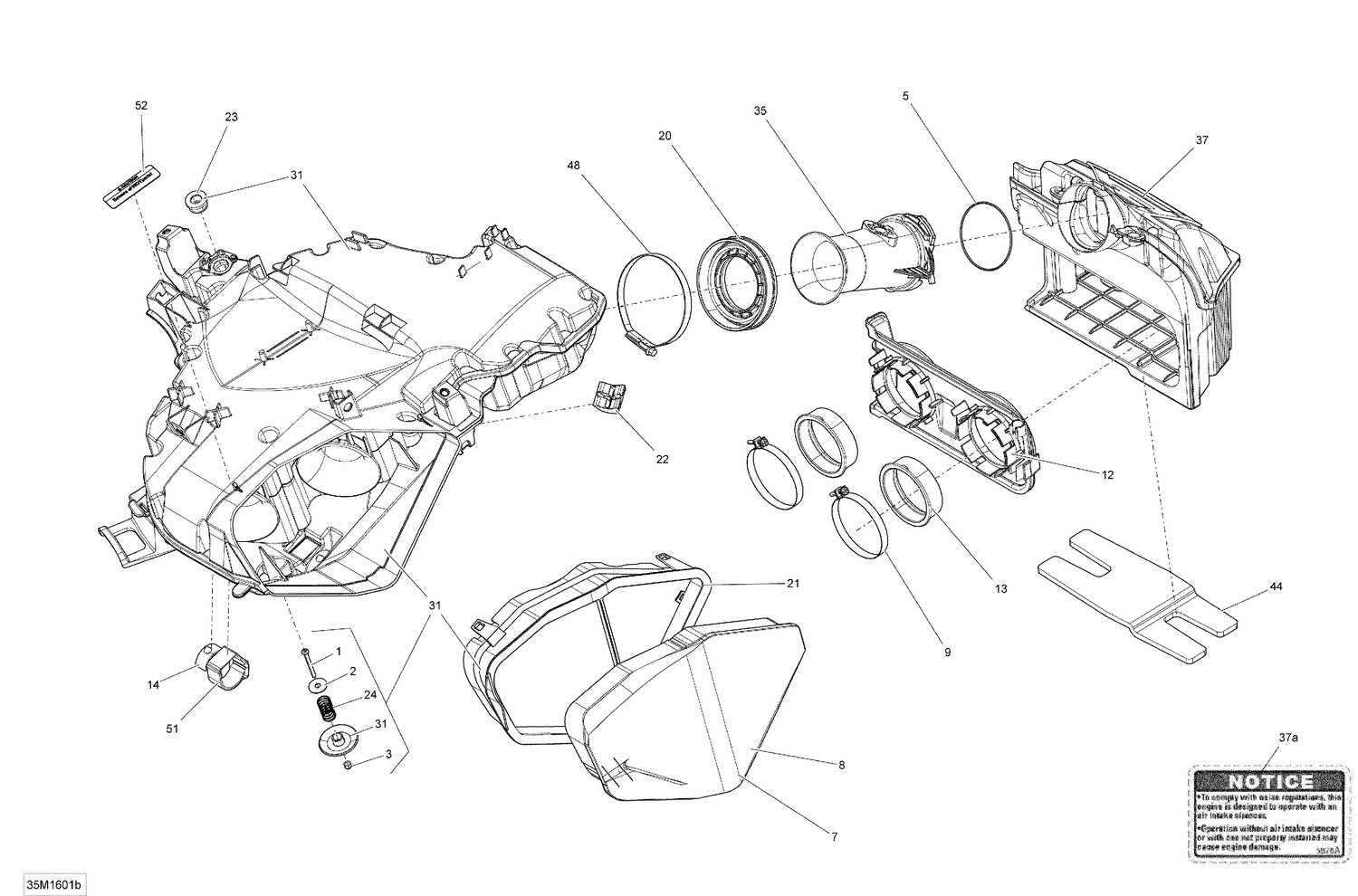

02- Air Intake - 800R PTEK
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205444086 | Socket Head Screw M4 X 40 |
| 2 | 224060201 | Flat Washer |
| 3 | 232541414 | Elastic Stop Nut M4 |
| 5 | 293300115 | O-Ring |
| 7 | 415129376 | Filter Cover |
| 8 | 415129377 | Foam Filter |
| 9 | 508000346 | Gemi Clamp |
| 12 | 508000500 | Plate Adapter |
| 13 | 508000501 | Air Intake Adapter |
| 14 | 508000537 | Stopper |
| 20 | 508000567 | Boot |
| 21 | 508000626 | Air Filter |
| 22 | 508000572 | Bumper |
| 23 | 508000574 | Grommet |
| 24 | 508000576 | Spring |
| 31 | 508000656 | Secondary Chamber Ass'y |
| 37 | 508000680 | Primary Chamber Ass'y |
| 37a | 516005876 | Notice Decal, Air Intake Silencer |
| 48 | 514052924 | Norma Clamp |
| 51 | 508000820 | Velcro Strip |
