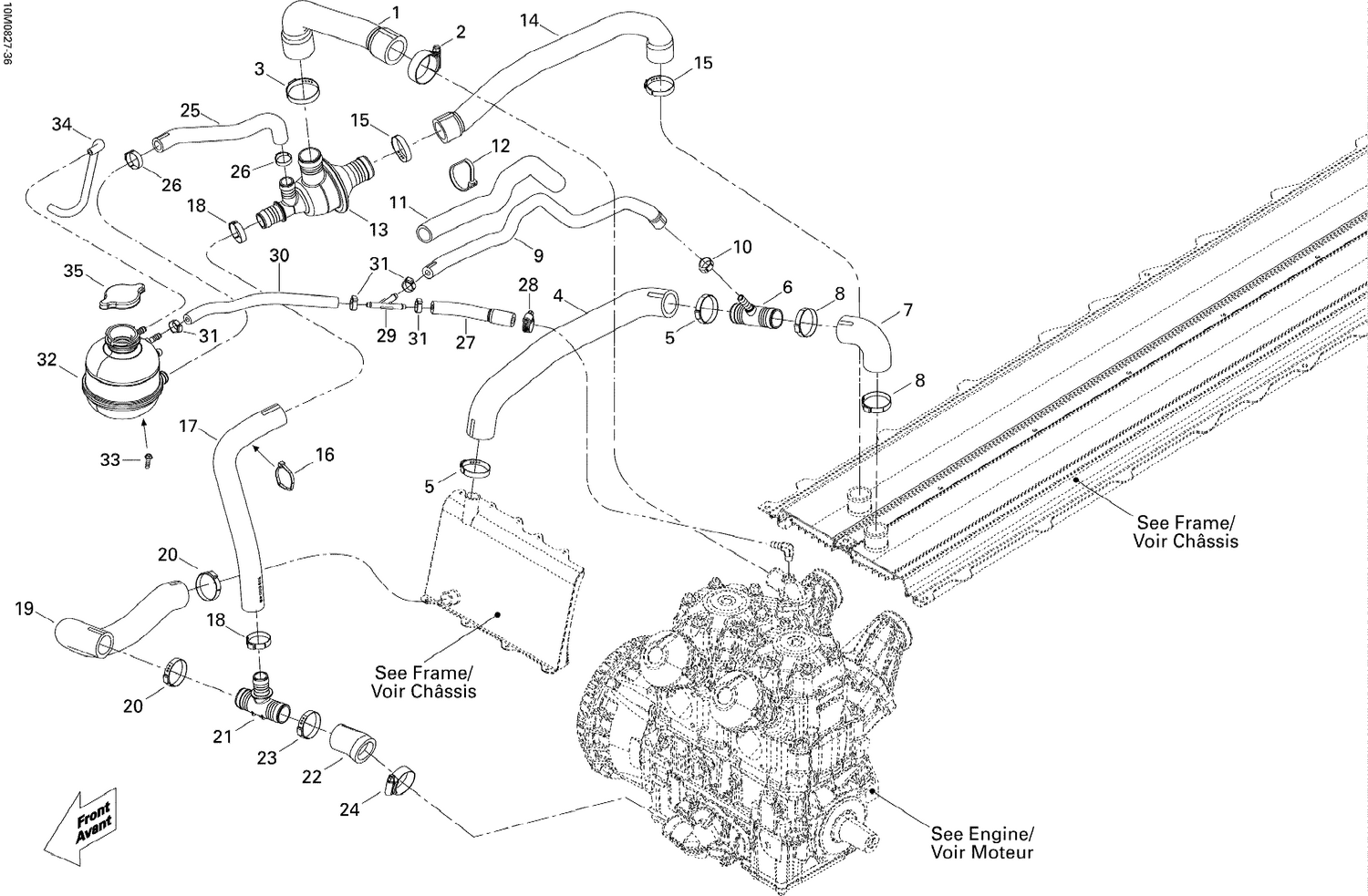

| Ref | Part Number | Description |
|---|
| 1 |
509000669 |
ENGINE OUTLET HOSE - Call your local BRP dealership This part replaces 509000492. |
| 2 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 3 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 4 |
509000670 |
Radiator Hose This part replaces 509000493. |
| 5 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 6 |
509000510 |
T-Fitting |
| 7 |
509001066 |
Radiator Hose This part replaces 509000500. |
| 8 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 9 |
509000502 |
Bleeder Hose |
| 10 |
293650047 |
Crimp Clamp, 15.3-706R |
| 11 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 12 |
414115200 |
Tie-Rap 180 mm |
| 13 |
509000499 |
Thermostat Housing |
| 14 |
509000679 |
Thermostat Outlet Hose This part replaces 509000501. |
| 15 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
509000672 |
Bypass Hose This part replaces 509000415. |
| 18 |
293650099 |
Crimp Clamp |
| 19 |
509000673 |
Radiator Hose This part replaces 509000491. |
| 20 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 21 |
509000372 |
T-Fitting |
| 22 |
509000997 |
Engine Inlet Hose This part replaces 509000371. |
| 23 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 24 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 25 |
509000418 |
FILLER HOSE - Call your local BRP dealership |
| 26 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 27 |
509000516 |
BLEEDER HOSE - Call your local BRP dealership |
| 28 |
293650170 |
Tridon Gear Clamp |
| 29 |
293710059 |
Y-Fitting |
| 30 |
509000517 |
BLEEDER HOSE - Call your local BRP dealership |
| 31 |
293650025 |
Oetiker Gear Clamp |
| 32 |
509000368 |
Coolant Tank |
| 33 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 34 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
