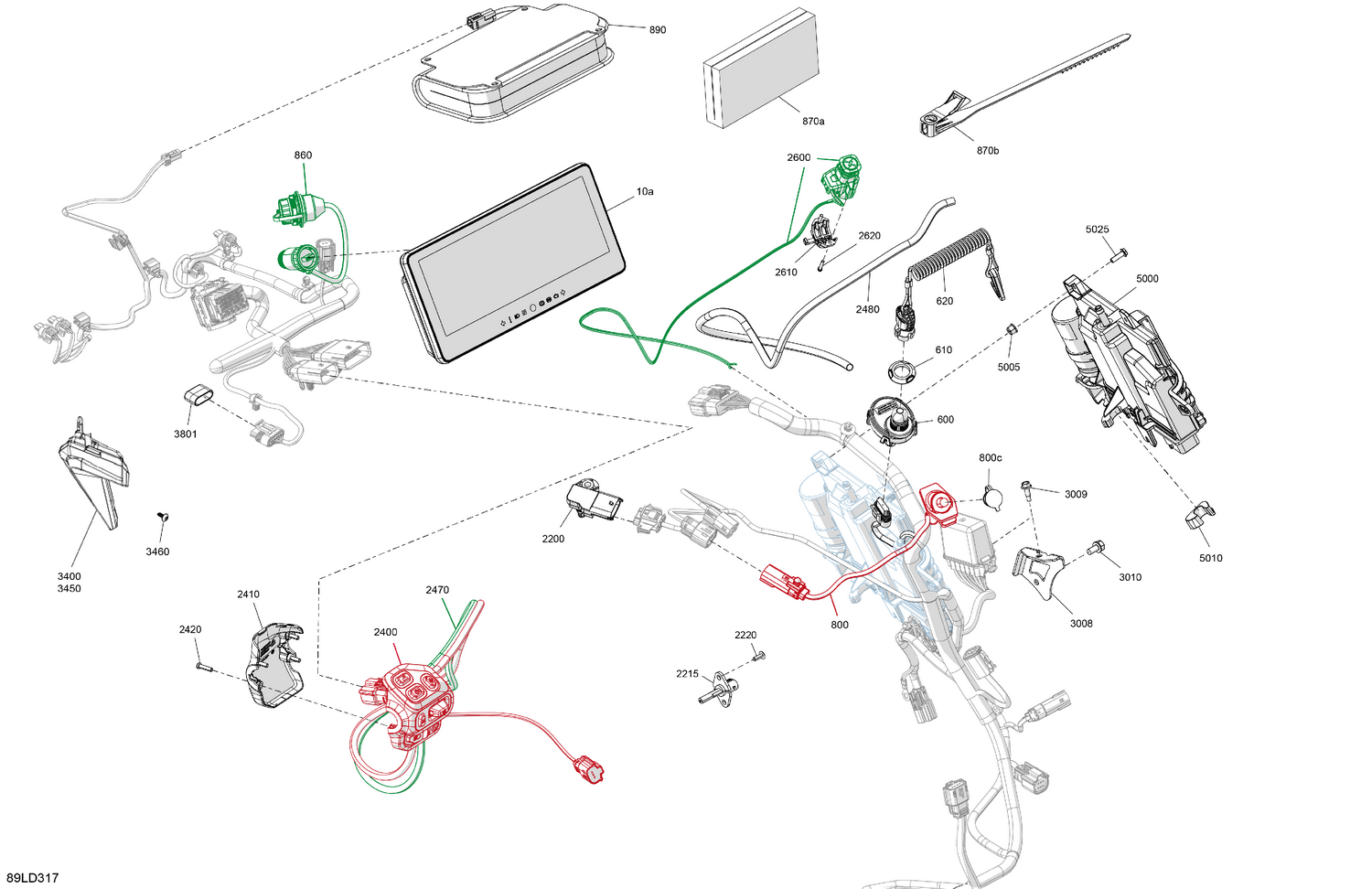

08- Electric - Upper Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710009417 | Multifunction Gauge 10 |
| 600 | 710008832 | Dess Can Terminal |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 800c | 572103300 | Cap |
| 860 | 515179248 | USB Wiring Harness Ass'y |
| 870a | 264000135 | Sealed Foam Compartment |
| 870b | 515179675 | Mounting Clamp P |
| 890 | 860202888 | NEEDS DESCRIPTION This part replaces 515179062. |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2215 | 515176366 | Air Temperature Sensor |
| 2220 | 250001131 | Torx Truss PT K40 x 12 |
| 2400 | 515179436 | LH Front Multifunction Switch |
| 2410 | 415130659 | Rear Housing |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3008 | 515179281 | Fuse Box Support |
| 3009 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3010 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3400 | 520003238 | RH Auxiliary Light |
| 3450 | 520003239 | LH Auxiliary Light |
| 3460 | 250001034 | Torx-Truss Screw K40 X 10 |
| 3801 | 515179300 | Plug |
| 5000 | 515179352 | ECM Module |
| 5005 | 233251434 | Flanged Elastic Nut M5 |
| 5010 | 515178430 | Rubber Stopper |
