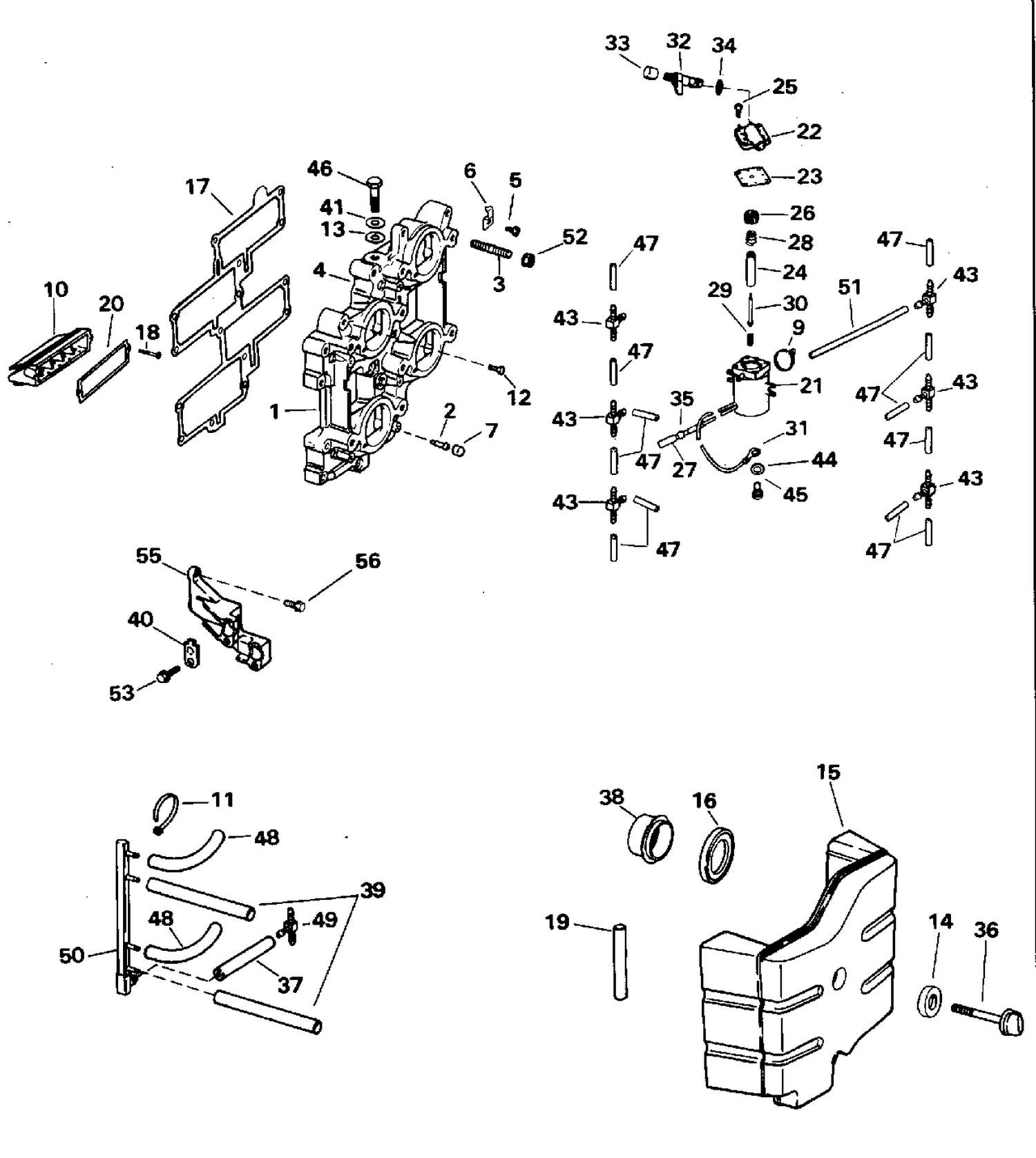

INTAKE MANIFOLD

INTAKE MANIFOLD

Parts (27)

RefPart NumberDescription
1 0437387 INTAKE MANIFOLD, Upper
1 0437388 INTAKE MANIFOLD ASSY.
5 0310379 SCREW
6 0343985 POINTER, Timing This part replaces 0341513.
7 0322892 CAP, Adapter elbow
10 0397336 LEAF PLATE ASSY.
11 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
15 0436997 COVER ASSY., Air silencer
17 0328622 GASKET, Manifold to crankcase
18 0332265 SCREW, Cover to base, long
19 0344783 HOSE, Air silencer drain This part replaces 0340716.
20 0332266 GASKET, Leaf plate
21 5007355 Kit Ay This part replaces 0437234.
36 0439922 FASTENER, Air silencer This part replaces 0436547.
37 0334769 HOSE, Tee to lower manifold
39 0339747 HOSE, Fuel manifold to #2, #4, #6, #8 carbur etors
40 0329271 CLAMP, Trunnion cable
41 0127386 RONDELLE This part replaces 0341381.
43 0325569 T, amorçage
45 0331036 VIS, attache de palier
46 0347338 SCREW, Cam to C/C This part replaces 0332353.
47 HOSE, Primer system
49 0338896 RACCORD, T flexible d'eau
50 0435898 FUEL MANIFOLD
51 0331674 HOSE, Carb. to primer
52 0316355 BUT, Carburetor mounting This part replaces 0315204.
55 0340412 BRACKET, Anchor block
