| Ref | Part Number | Description |
|---|
| ABS |
278000999 |
Wire Seal |
| ABS |
710008976 |
Tyco 18 Cavity Connector |
| ABS |
710008998 |
Lock |
| ABS |
710009138 |
Termial Pin |
| ABS |
710009896 |
RH Connector Cover |
| ABS |
710009897 |
Terminal |
| ABS |
710009898 |
Plug |
| APS |
278003866 |
Housing 6 Circuits |
| APS |
515178013 |
Male Terminal |
| ATS |
515176890 |
Female Terminal Housing |
| ATS |
710001163 |
Wire Seal |
| ATS |
710001164 |
Female Terminal |
| BMS |
293000070 |
SEALING CAP - Call your local BRP dealership |
| BMS |
710008506 |
Connector |
| CLUSTER |
710001589 |
Female Terminal |
| CLUSTER |
710001592 |
Plug |
| CLUSTER |
710001593 |
Plug |
| CLUSTER |
710001727 |
Female Terminal |
| CLUSTER |
710007620 |
Seal Joint |
| CLUSTER |
710007650 |
Cover |
| CLUSTER |
710007658 |
Femal Terminal |
| CLUSTER |
710008036 |
Female Molex Connector 53 Cavities |
| CPUMP |
710007785 |
Seal Kostal Connector |
| CPUMP |
710007786 |
Kostal Female Terminal |
| CPUMP |
710007787 |
Female Connector 3 Circuits |
| CTS |
278000998 |
Female Terminal |
| CTS |
278001005 |
Male Housing, 2 Circuits |
| CTS |
415128501 |
Seal |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| F1 |
710000743 |
Little Fuse, 7.5 Amperes |
| F10 |
710000744 |
Little Fuse, 10 Amperes |
| F2 |
710000744 |
Little Fuse, 10 Amperes |
| F3 |
710000742 |
Little Fuse, 5 Amperes |
| F4 |
710000744 |
Little Fuse, 10 Amperes |
| F5 |
710000743 |
Little Fuse, 7.5 Amperes |
| F6 |
710000746 |
Little Fuse, 20 Amperes |
| F7 |
710000744 |
Little Fuse, 10 Amperes |
| F8 |
710000742 |
Little Fuse, 5 Amperes |
| F9 |
278002389 |
Little Fuse, 25 Ampere |
| FB |
278000218 |
Wire Seal |
| FB |
278001065 |
Wire Seal |
| FB |
278002578 |
Female Terminal |
| FB |
278003448 |
Fuse Base Ass'y |
| FB |
710000890 |
Female Terminal |
| FB |
710000918 |
Female Terminal |
| FBSW |
409011300 |
Male Terminal |
| FBSW |
710000402 |
Wire Seal |
| FBSW |
710008151 |
Connector Sumitomo Male 2 Cavities |
| FOG |
LIGHT |
BTN 278002856 Housing JAE 2 Circuits 278002856 |
| MSD |
710001118 |
Wire Seal |
| MSD |
710008740 |
Terminal Tyco Female |
| MSD |
710009918 |
Connector |
| MSL |
710008931 |
Plug |
| MSL |
710008939 |
Housing Sumitomo |
| MSL |
710008940 |
Terminal Sumitomo |
| MSL |
710009813 |
Connector Seal |
| MSR |
515178013 |
Male Terminal |
| MSR |
515178347 |
Male Housing Connector 4 Pins |
| OBC |
293000070 |
SEALING CAP - Call your local BRP dealership |
| OBC |
710008500 |
Connector |
| OBDII |
515178834 |
Female JST Terminal |
| OBDII |
710006984 |
JST Housing |
| OBDII |
710007131 |
JST Plug |
| OBDII |
710009813 |
Connector Seal |
| RBSW |
409209400 |
Male Terminal Housing, 2 Circuits |
| RBSW |
515176164 |
Male Terminal |
| RBSW |
515176621 |
Wire Seal |
| RY1 |
715900824 |
Relay This part replaces 710001778. |
| RY2 |
715900824 |
Relay This part replaces 710001778. |
| RY3 |
715900824 |
Relay This part replaces 710001778. |
| RY4 |
715900824 |
Relay This part replaces 710001778. |
| S |
STAND |
SW 710000722 Connector 710000722 |
| SIGN |
LIGHT |
L 515177441 Female Housing 515177441 |
| TOPS |
710000057 |
FEMALE TERMINAL YASAKI - Call your local BRP dealership |
| TOPS |
710000058 |
WIRE SEAL YASAKI - Call your local BRP dealership |
| VCU1 |
515178595 |
Housing 56 Circuits |
| VCU1 |
515178596 |
Terminal |
| VCU1 |
515178598 |
Terminal |
| VCU1 |
515178599 |
Plug |
| VCU1 |
515178600 |
Plug |
| VCU1 |
515178601 |
Cover |
| VCU1 |
515178603 |
Plate |
| VCU1 |
515178604 |
Plate |
| VCU1 |
515178666 |
Terminal |
| VCU2 |
515178596 |
Terminal |
| VCU2 |
515178599 |
Plug |
| VCU2 |
515178600 |
Plug |
| VCU2 |
515178602 |
Cover |
| VCU2 |
515178603 |
Plate |
| VCU2 |
515178604 |
Plate |
| VCU2 |
515178617 |
Housing 56 Circuits |
| VCU2 |
515178666 |
Terminal |

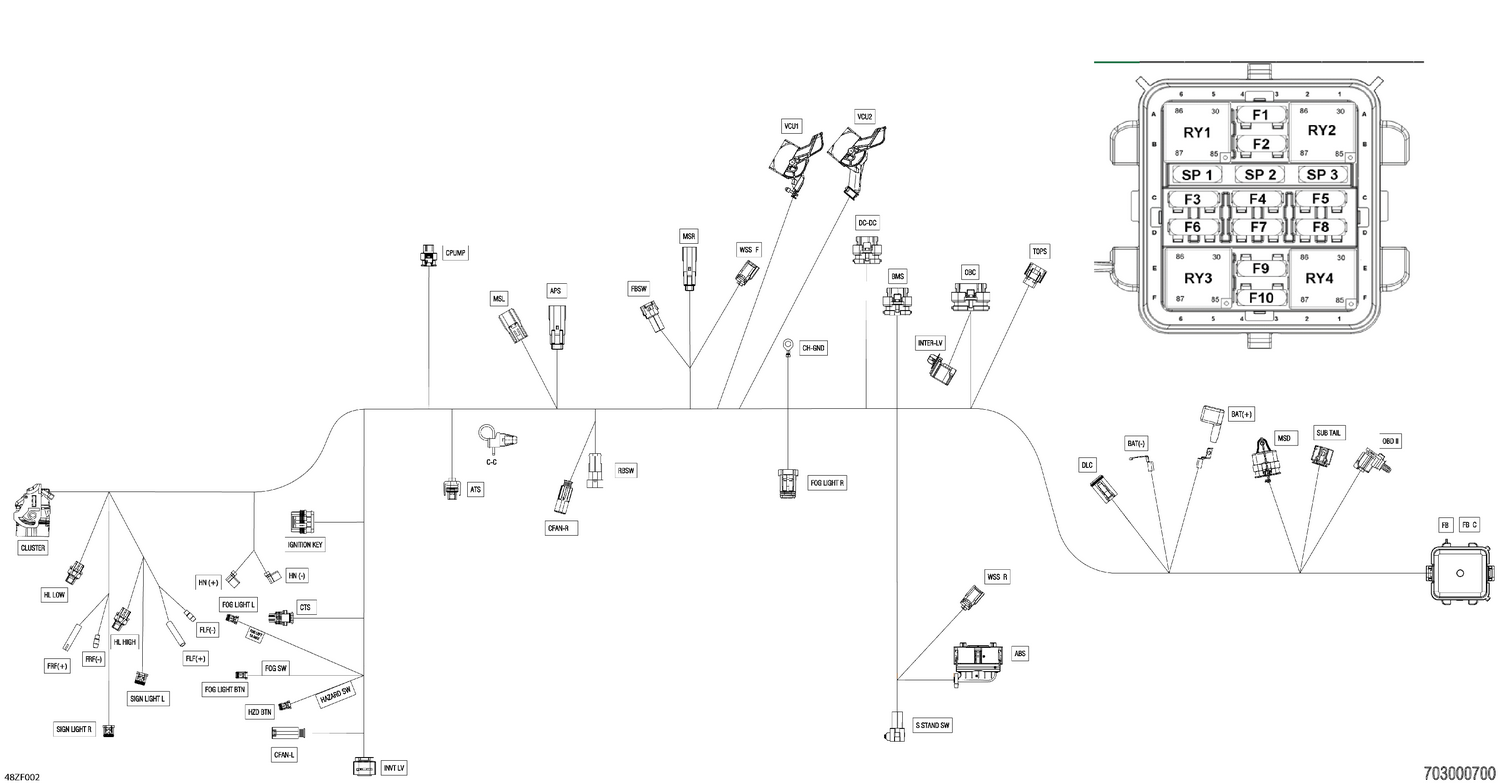

| 100 |
710011780 |
Main Wiring Harness |
