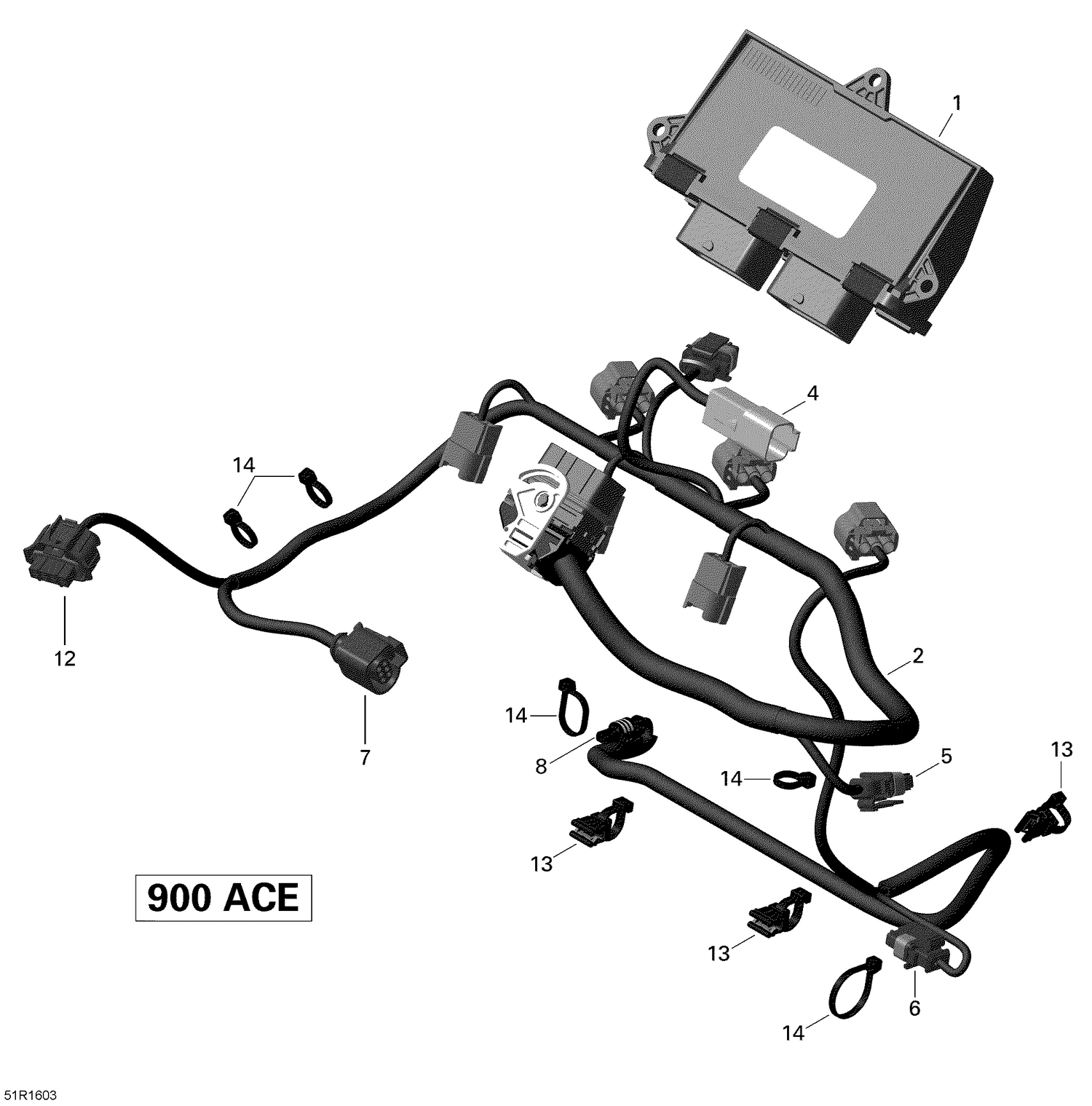

10- Engine Harness and Electronic Module - 900 ACE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666934 | ECM, Engine Control Module |
| 4 | 278000635 | Female Housing, 4 Circuits |
| 5 | 278001005 | Male Housing, 2 Circuits |
| 6 | 278001005 | Male Housing, 2 Circuits |
| 7 | 515177406 | Female Housing |
| 7a | 415130049 | Terminal |
| 7b | 710001186 | SEAL-WIRE - Call your local BRP dealership |
| 8 | 278001012 | Male Housing, 1 Circuit |
| 12 | 515176410 | Male Connector |
| 12a | 710001137 | Female Terminal |
| 12b | 710001135 | Wire Seal |
| 13 | 420951650 | Cable Clamp 150mm |
