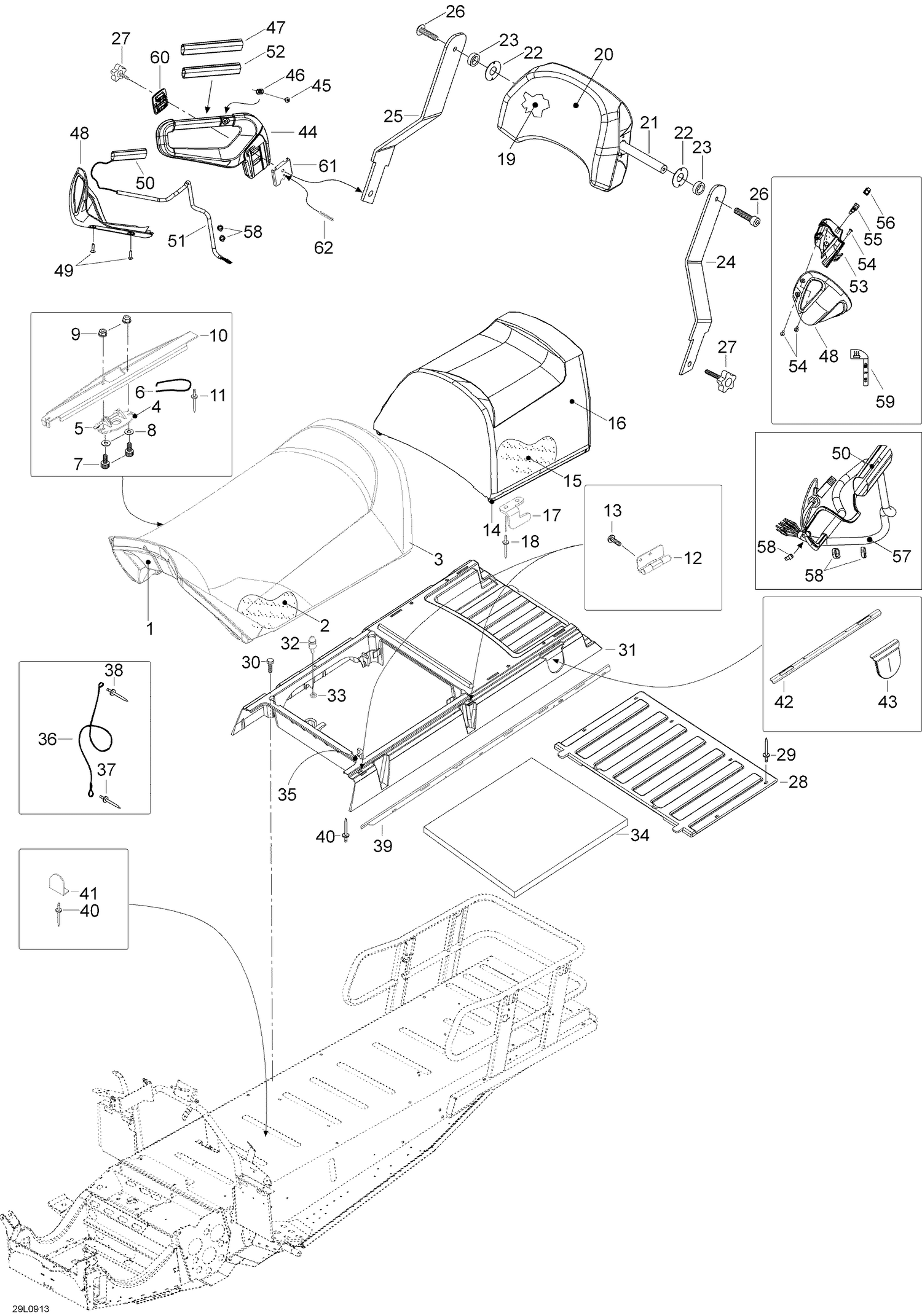

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605255689 |
Foam, front |
| 3 |
605255216 |
SEAT FRONT COVER, SUV - Call your local BRP dealership |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700017 |
Spring |
| 7 |
40276 |
Socket head screw M6 x 25 |
| 8 |
20003 |
Washer A6,4 |
| 9 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
36088 |
Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership |
| 12 |
605351798 |
Hinge |
| 13 |
40890 |
Wronic-screw 4,2 x 16 |
| 14 |
605251390 |
SEAT BASE, REAR - Call your local BRP dealership |
| 15 |
605255691 |
REAR SEAT FOAM - Call your local BRP dealership |
| 16 |
605254496 |
SEAT COVER - Call your local BRP dealership |
| 17 |
605351808 |
LH HOOK - Call your local BRP dealership |
| 17 |
605352007 |
RH HOOK - Call your local BRP dealership |
| 18 |
36087 |
Rivet |
| 19 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 20 |
605355498 |
BACKREST COVER - Call your local BRP dealership |
| 21 |
510004377 |
Upper backrest axle |
| 22 |
510004379 |
Washer |
| 23 |
510004378 |
Rubber shim |
| 24 |
605355499 |
LH ARM - Call your local BRP dealership |
| 25 |
605355500 |
RH ARM - Call your local BRP dealership |
| 26 |
605640010 |
SCREW M10X20 - Call your local BRP dealership |
| 27 |
605640015 |
HANDLE M8 X 35 - Call your local BRP dealership |
| 28 |
605255587 |
FRAME COVER - Call your local BRP dealership |
| 29 |
36036 |
Rivet |
| 30 |
605640022 |
Hex. screw M6 x 16 |
| 31 |
605155585 |
SEAT BASE - Call your local BRP dealership |
| 32 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 33 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 34 |
605355635 |
FOAM - Call your local BRP dealership |
| 35 |
28413 |
Gasket |
| 36 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 37 |
36037 |
Rivet |
| 38 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 39 |
605255761 |
Tie for Seat box - Call your local BRP dealership |
| 39 |
605255762 |
RH SEAT BRACKET - Call your local BRP dealership |
| 40 |
36108 |
Rivet |
| 41 |
605455789 |
Bracket, seatbox |
| 42 |
605355816 |
REAR SEAT SUPPORT - Call your local BRP dealership |
| 43 |
605355589 |
CAP - Call your local BRP dealership |
| 44 |
510005862 |
LH Handle This part replaces 510004947. |
| 44 |
510005865 |
RH HANDLE - Call your local BRP dealership This part replaces 510004948. |
| 45 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 46 |
293100003 |
Nut |
| 47 |
510004449 |
Grip |
| 48 |
510004415 |
R.H. Deflector |
| 48 |
510004416 |
L.H. Deflector |
| 49 |
250000961 |
Screw 25MM This part replaces 250000199. |
| 50 |
515176393 |
Heating element |
| 51 |
515175506 |
TUBING - Call your local BRP dealership |
| 52 |
510004709 |
HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 53 |
510004566 |
Housing switch |
| 54 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 55 |
510004413 |
Switch |
| 56 |
510004414 |
Prorector switch |
| 57 |
515176241 |
LH HANDLE HARNESS - Call your local BRP dealership |
| 58 |
414115200 |
Tie-Rap 180 mm |
| 59 |
516002835 |
HANDLE HEATER DECAL - Call your local BRP dealership |
| 60 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 61 |
605454565 |
Handle Support - Call your local BRP dealership |
