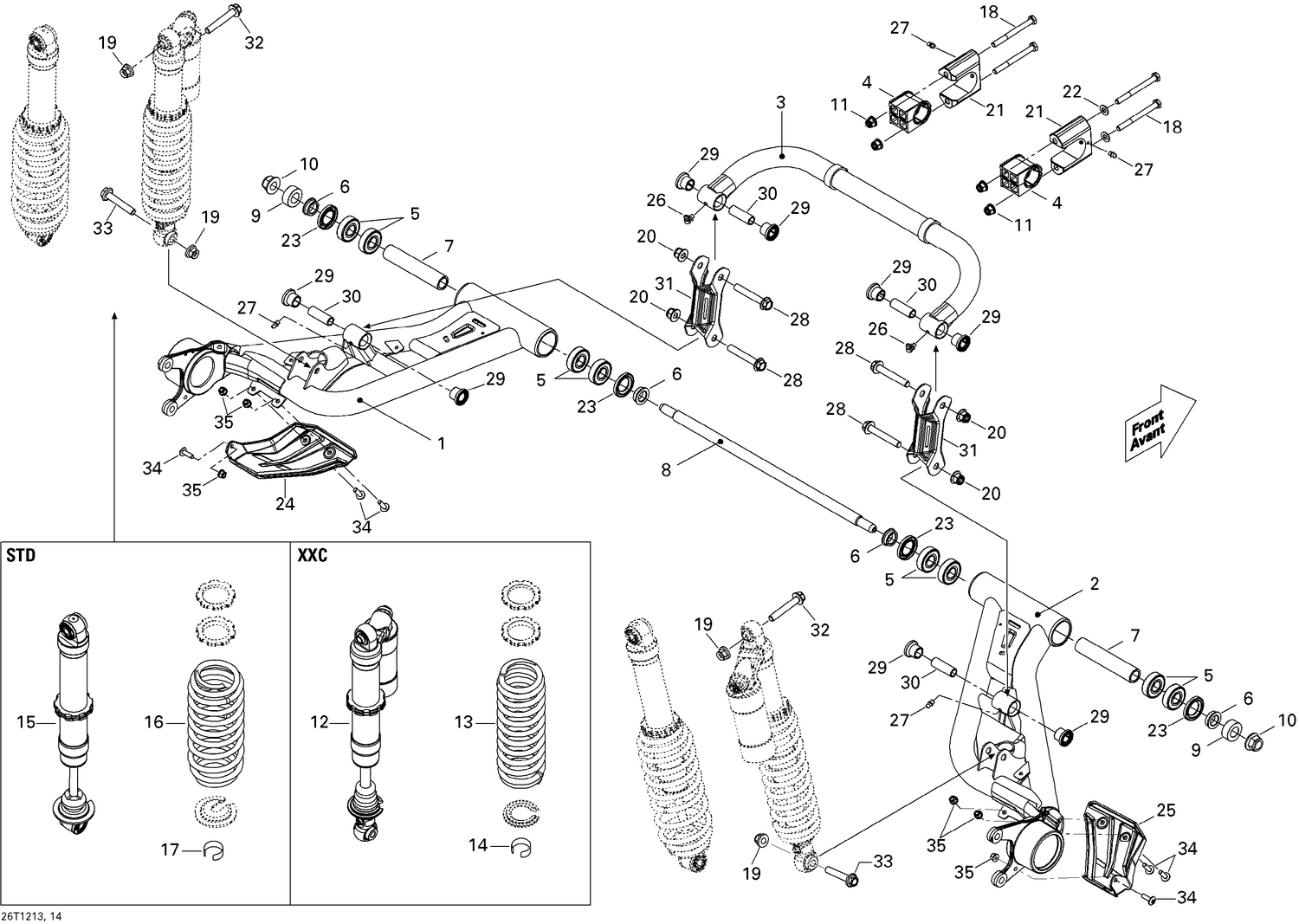

| Ref | Part Number | Description |
|---|
| 3 |
706000988 |
Swaybar |
| 4 |
706004640 |
Stabilizer Bar Bushing This part replaces 706001098. |
| 5 |
293350145 |
Ball Bearing This part replaces 706000826. |
| 6 |
706001282 |
Spacer This part replaces 706001225. |
| 7 |
706002259 |
Spacer This part replaces 706000828. |
| 8 |
706001023 |
Axial Pivot |
| 9 |
250200112 |
Flat Washer M17 |
| 10 |
233271416 |
HEX. ELASTIC FLANGED NUT M14 - Call your local BRP dealership |
| 11 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 18 |
250001035 |
Hex. Screw M8 X 85 This part replaces 207088587. |
| 19 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 20 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 21 |
706001099 |
Bushing Holder |
| 22 |
234081430 |
Flat Washer M8 |
| 23 |
293200144 |
Seal This part replaces 293200132. |
| 24 |
706001009 |
LH PROTECTOR - Call your local BRP dealership |
| 25 |
706001010 |
RH PROTECTOR - Call your local BRP dealership |
| 26 |
293550056 |
Grease Fitting 90° |
| 27 |
250000315 |
Grease Fitting |
| 28 |
207606536 |
Hex. Flange Screw M10 X 65 |
| 31 |
706001020 |
Sway Bar Linkage |
| 32 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 33 |
207605546 |
Hex. Flange Screw M10 X 55 |
| 34 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
