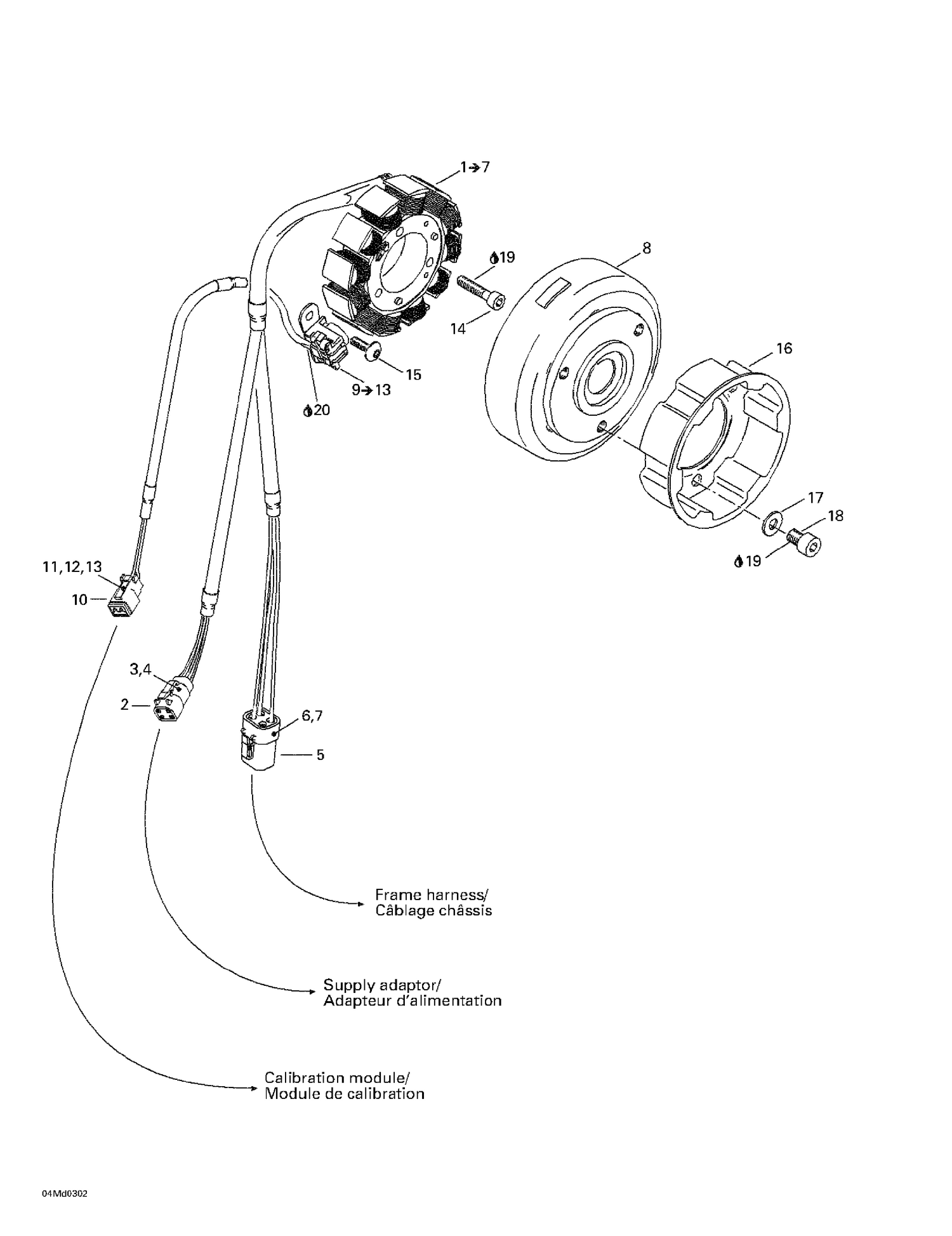

| Ref | Part Number | Description |
|---|
| 2 |
515175245 |
Female Terminal Housing (4 circuits) |
| 3 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4 |
515175246 |
Female Lock (4 circuits) |
| 5 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 6 |
515175567 |
Female Terminal |
| 7 |
278001474 |
Female Lock, 4 Circuits |
| 8 |
410922954 |
Flywheel |
| 10 |
409207300 |
Female Connector, 2 Circuits |
| 11 |
278000632 |
Female Terminal |
| 12 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 13 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 14 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 15 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 16 |
420852590 |
Starting Pulley |
| 17 |
420827405 |
Flat Washer |
| 18 |
420841520 |
Socket Head Screw M8 X 12 |
| 19 |
293800060 |
Loctite 243, 10 ml |
