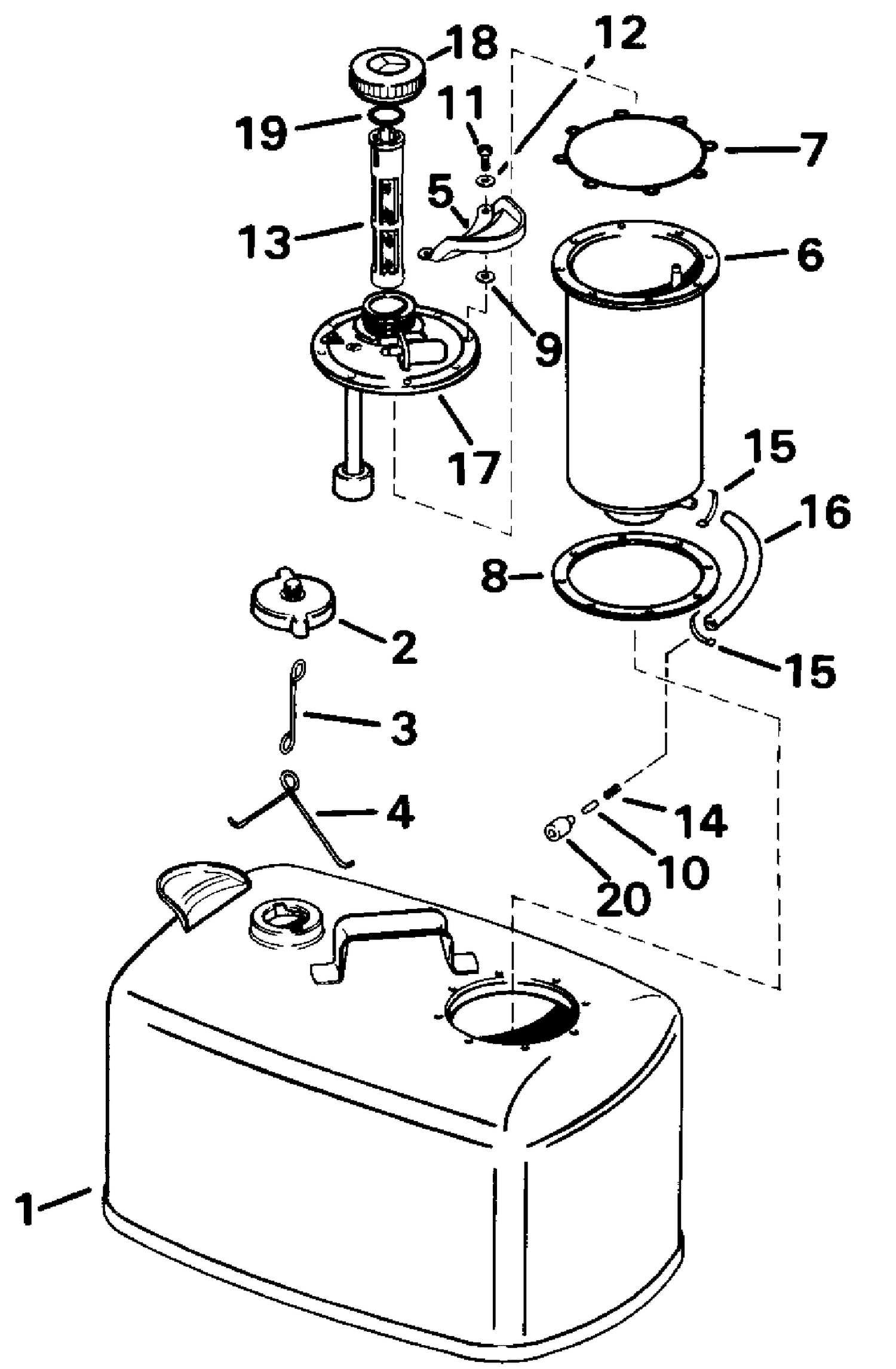

ACCUMIX FUEL TANK
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0174873 | NOT AVAILABLE |
| 1 | 0174874 | TANK & PUMP ASSY |
| 2 | 0388933 | CAP ASSY., Fuel |
| 5 | 0124798 | BRACKET |
| 6 | 0174871 | PUMP & RESERVOIR ASSY. |
| 6 | 0174881 | PUMP & RESERVOIR ASSY. |
| 7 | 0124764 | SEAL |
| 8 | 0124955 | GASKET |
| 9 | 0125004 | SEAL |
| 10 | 0125168 | MAGNET, Fuel line |
| 11 | 0174481 | SCREW & SEAL ASSY. |
| 12 | 0125004 | SEAL |
| 15 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 | HOSE, | Fuel pickup, 11 1/2 " (292mm) |
| 17 | 0174620 | COVER ASSY. |
| 20 | 0173637 | FUEL PICKUP |
