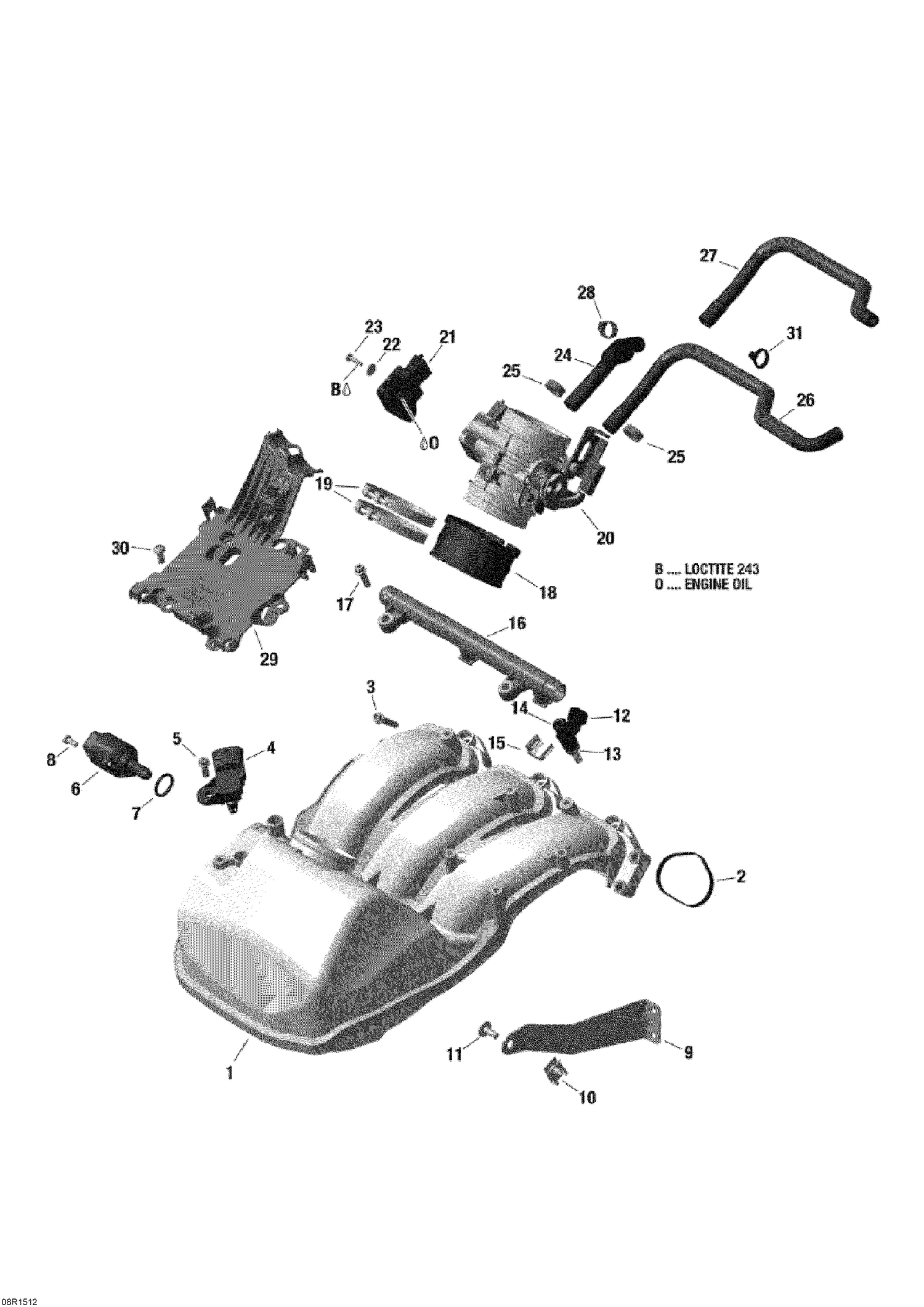

02- Air Intake Manifold And Throttle Body
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| 4 | 707000995 | Pressure And Temperature Sensor |
| 6 | 420665941 | Idle Bypass Valve This part replaces 420665940. |
| 9 | 420951011 | SUPPORT - Call your local BRP dealership |
| 10 | 420942108 | Clip nut |
| 15 | 420853030 | Clip |
| 16 | 420874810 | Fuel Rail |
| 18 | 420460490 | INTAKE ADAPTOR - Call your local BRP dealership |
| 19 | 420251209 | Clamp |
| 21 | 420866120 | Position Sensor This part replaces 270000251. |
| 22 | 234042600 | Flat Washer |
| 23 | 208641660 | Phillips Screw M4 x 16 |
| 24 | 420460482 | MOLDED HOSE - Call your local BRP dealership |
| 25 | 293650125 | Oetiker Clamp |
| 26 | NOT | IN USE Molded Hose NOT IN USE |
| 27 | 420822662 | MOLDED HOSE - Call your local BRP dealership |
| 28 | 420851458 | Clamp |
| 29 | 420910331 | BASE PLATE - Call your local BRP dealership |
| 31 | 414115200 | Tie-Rap 180 mm |
