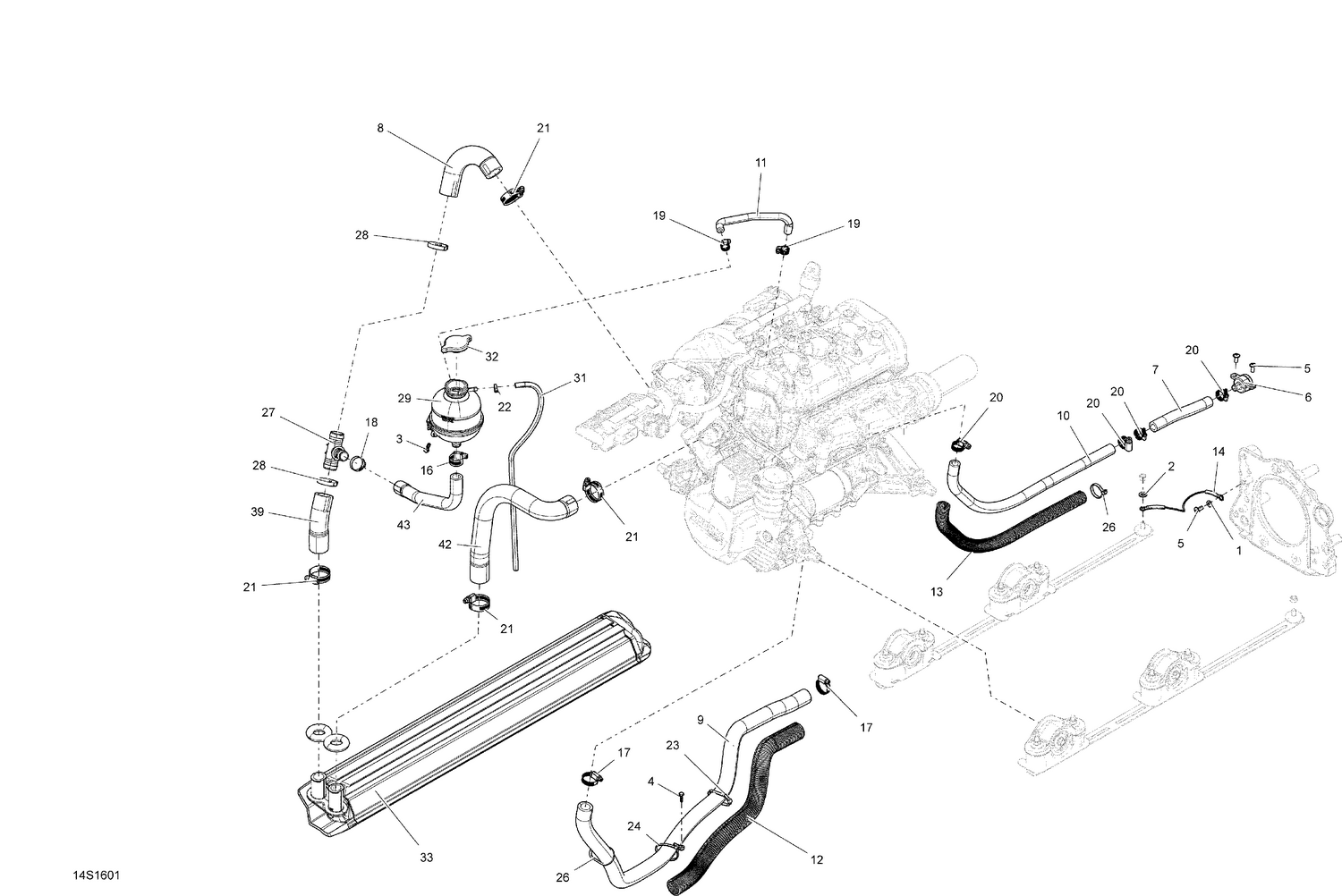

01- Cooling System — Parts Catalog

Ref	Part Number	Description
1	219704402	Tubing 25 MM 1000MM Long
2	219704361	Hose 19.0Mm. 2000Mm Long
3	241152060	Hex. Flange Screw K50 X 20
4	211000023	Hex. Screw 10-14 X 7/8”
5	250000384	Torx Screw M6 X 14
6	269800521	Drain Plug Neck
7	219704394	Was 276000001 Hose 12.5 mm
8	276000301	Hose
9	219704361	Hose 19.0Mm. 2000Mm Long
10	219704394	Was 276000001 Hose 12.5 mm
11	276000316	Formed Hose
12	219704402	Tubing 25 MM 1000MM Long
13	219704398	Was 409901600 Tubing 19mm
14	219704410	Polyurethane Hose 10000Mm Long
16	293650016	Tridon Clamp
17	293650051	Tridon Gear Clamp
18	293650099	Crimp Clamp
19	293650170	Tridon Gear Clamp
20	293650172	Tridon Gear Clamp
21	293650185	Tridon Gear Clamp
22	293750001	Tie Wrap 94 mm
23	293750008	Tie Wrap 368 mm
24	293750049	Tie Rap 305 mm with Screw Mount Hole #10
26	414115200	Tie-Rap 180 mm
27	509000372	T-Fitting
28	509000529	Oetiker Gear Clamp, 36.5-706R
29	509000802	Coolant Tank
31	219704410	Polyurethane Hose 10000Mm Long
32	509000180	Radiator Pressure Cap
33	276000389	Heat Exchanger
39	276000292	Radiator Hose
42	276000449	Cooling Hose This part replaces 276000291.
