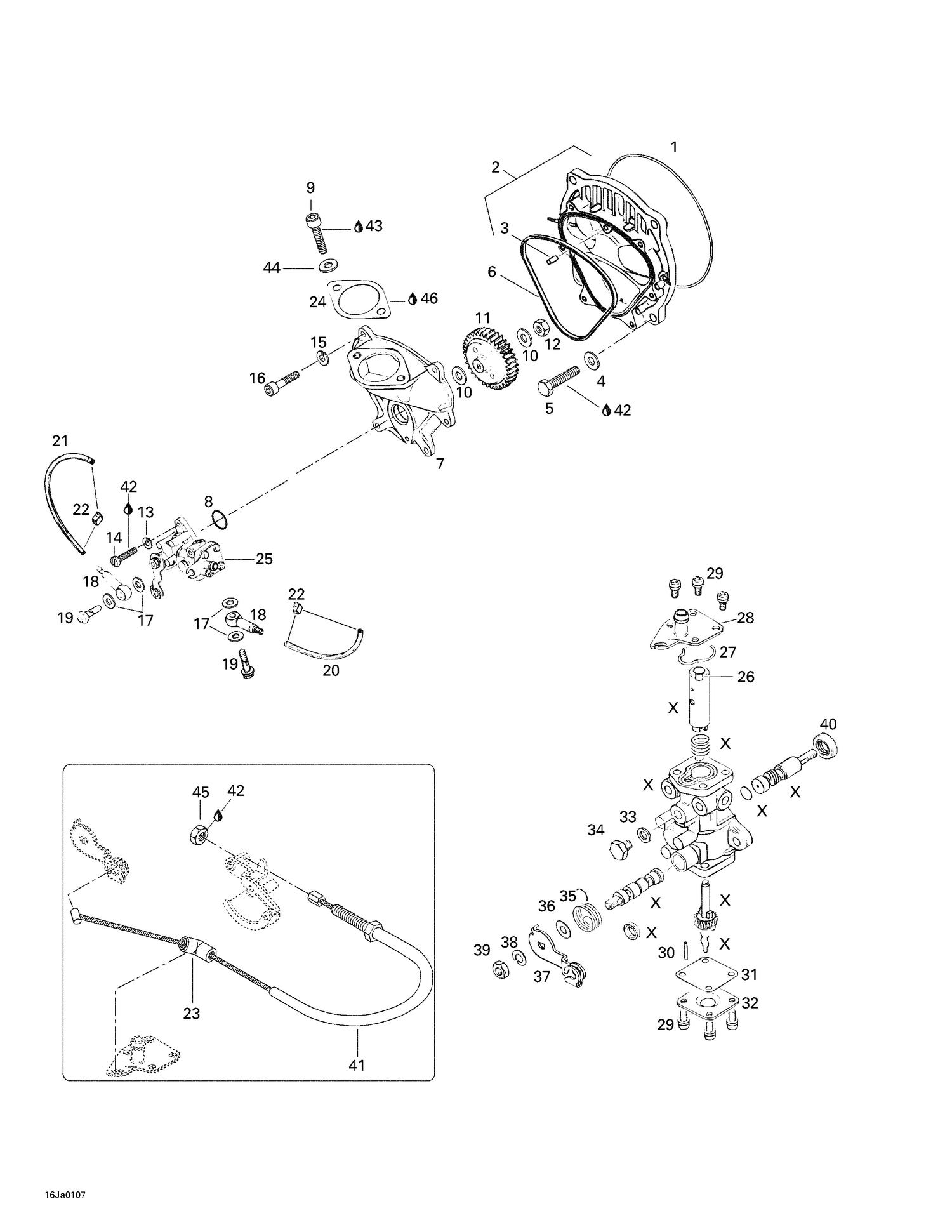

02- Oil Injection System, Oil Pump, Rotary Valve
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293300023 | O-RING - Call your local BRP dealership |
| 3 | 420929650 | Drive Pin 5 X 10 |
| 4 | 290250313 | Washer 8.4 mm |
| 5 | 207182044 | Hex. Screw M8 X 20 This part replaces 290940598. |
| 6 | 290850160 | Rubber Ring |
| 7 | 290811193 | Oil Pump Flange |
| 8 | 293300018 | O-RING - Call your local BRP dealership |
| 9 | 205587560 | Socket Head Screw M8 x 75 (Scotch Grip) |
| 10 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 11 | 420935945 | Oil Pump Gear 41 Teeth |
| 12 | 232561414 | Elastic Stop Nut M6 |
| 13 | 290845389 | Lock Washer |
| 14 | 205051660 | SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 15 | 290845381 | Lock Washer 6 mm |
| 16 | 205062060 | Socket Head Screw M6 X 20 |
| 17 | 404146600 | Sealing Washer |
| 18 | 420956010 | Valve Ass’Y |
| 19 | 404146800 | Banjo Bolt M6 X 16 |
| 20 | 219704404 | Oil Hose 1500Mm Long |
| 21 | 219704404 | Oil Hose 1500Mm Long |
| 22 | 290853843 | Clamp 3.5 mm |
| 23 | 270000187 | CABLE GUIDE - Call your local BRP dealership |
| 24 | 293250134 | Gasket This part replaces 293250070. |
| 26 | 290256085 | Retainer |
| 27 | 293300019 | O-RING - Call your local BRP dealership |
| 28 | 290956340 | Pump Upper Plate |
| 29 | 420241975 | SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership |
| 30 | 290929900 | Stop Pin |
| 31 | 420850200 | Gasket |
| 32 | 290956031 | Pump Lower Plate |
| 33 | 420227505 | GASKET - Call your local BRP dealership |
| 34 | 290841583 | Hex. Screw M6 x 8 |
| 35 | Not | Available As Spare Part - Release Spring |
| 36 | 290227665 | Washer 6.2 mm |
| 37 | 290848162 | Lever Control |
| 38 | 290845381 | Lock Washer 6 mm |
| 39 | 290242623 | Hex. Nut M6 |
| 40 | Not | Available As Spare Part - Oil Seal |
| 41 | 270000386 | Injection Cable |
| 42 | 293800060 | Loctite 243, 10 ml |
| 43 | 293550010 | Synthetic Grease, 400 G |
| 44 | 234081600 | Stainless, Flat Washer 8 mm |
| 45 | 232160600 | Hex. Nut M6 |
| 47 | 290886316 | CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
