Parts Catalog

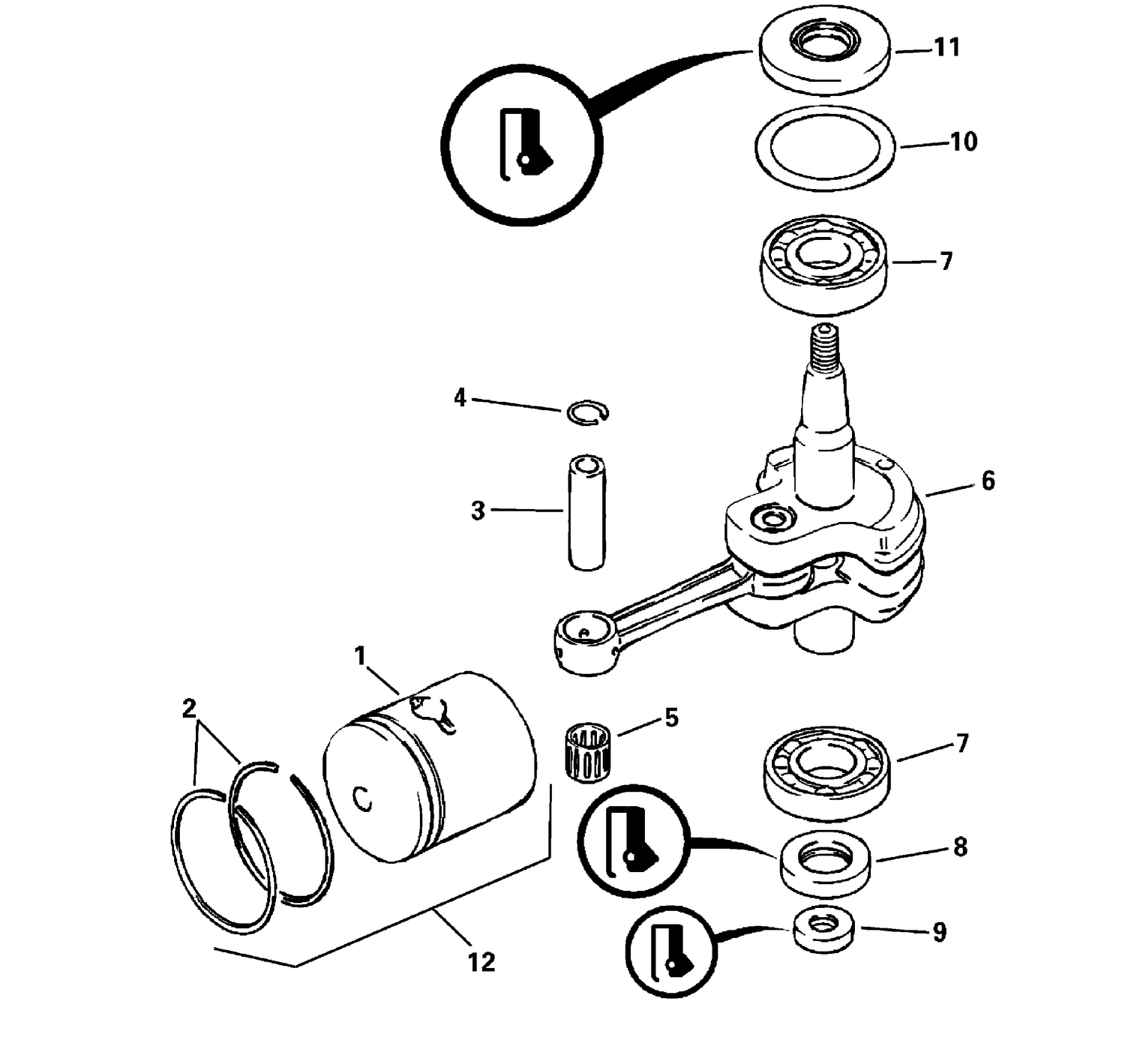

CRANKSHAFT AND PISTON

Parts (8)

Ref	Part Number	Description
1	5032488	PISTON ASSY
2	5030152	RING SET, Piston
3	5030153	WRIST PIN, Piston
4	5030129	RETAINER, Wrist pin
5	5030100	BEARING, Wrist pin
6	5030155	CRANKSHAFT ASSY.
10	5030067	THRUST WASHER, Crankshaft
12	5032489	PISTON & RING SET, 0.25MM O.S.
