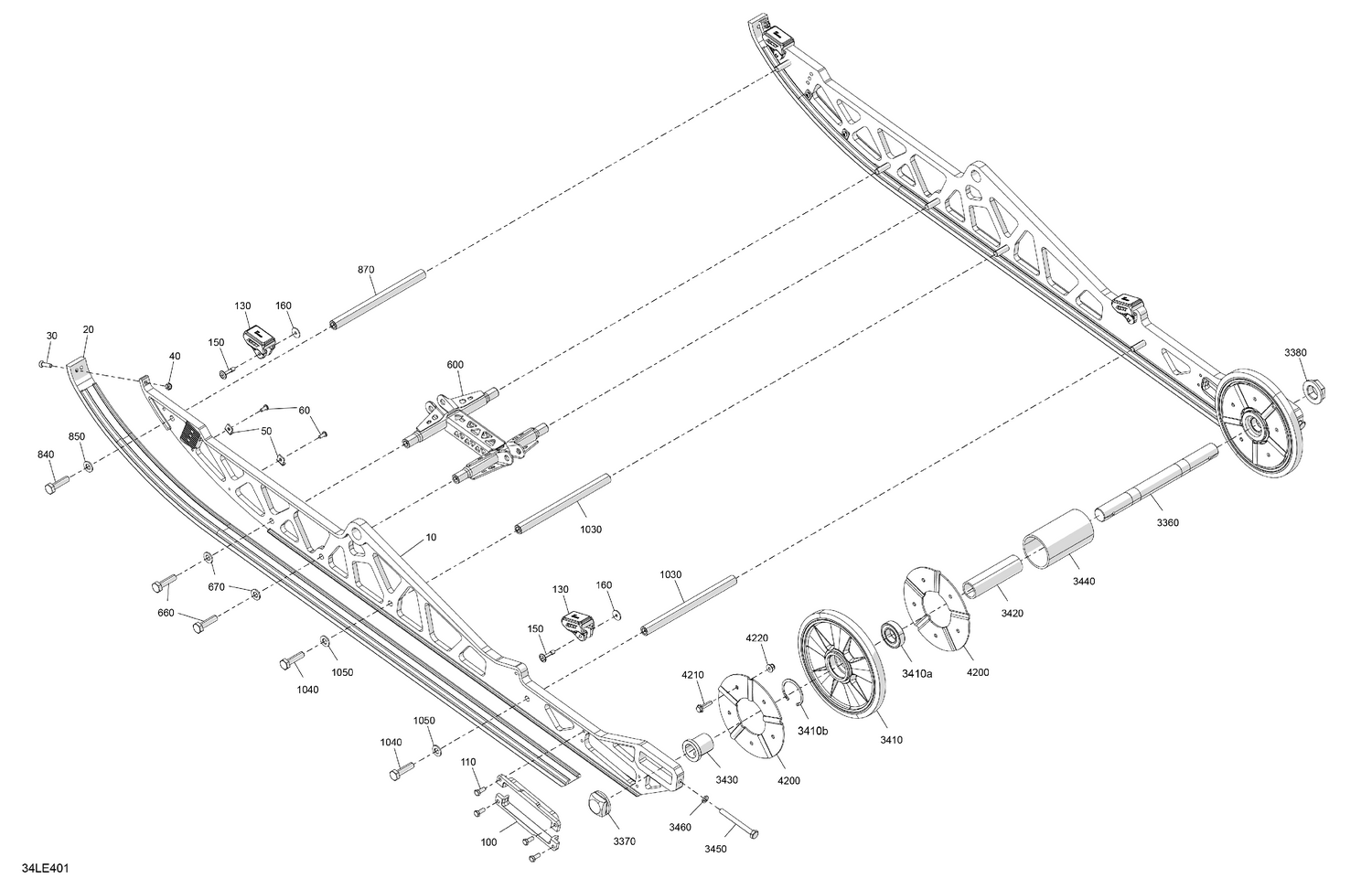

05- Suspension - Rear - Lower Section
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503197056 | Runner |
| 20 | 503197701 | Slider Shoe |
| 30 | 205362556 | Screw-Socket Hd.Ctsk.M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 50 | 503197575 | Bent Plate |
| 60 | 250001241 | Screw Torx M5 X 12 |
| 100 | 503197326 | Rail Guide |
| 110 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 130 | 503197353 | Rubber Stopper |
| 150 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 160 | 503191273 | Washer |
| 600 | 503197059 | Rear Beam |
| 660 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 670 | 234001410 | Flat Washer 10 mm |
| 840 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 850 | 234001410 | Flat Washer 10 mm |
| 870 | 503191260 | Axle Strap |
| 1030 | 503191260 | Axle Strap |
| 1040 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 1050 | 234001410 | Flat Washer 10 mm |
| 3360 | 503197307 | Rear Axle |
| 3370 | 503193695 | Nut |
| 3380 | 503193696 | Nut |
| 3410a | 503193548 | Ball Bearing |
| 3410b | 415129780 | Retaining Ring |
| 3420 | 503197308 | Spacer |
| 3430 | 503195512 | Spacer |
| 3440 | 503197309 | Spacer |
| 3450 | 250000983 | Hex. Cap Screw With Nylon Patch |
| 3460 | 250200111 | Washer |
| 4200 | 503197549 | Iddler Wheel Support Plate |
| 4210 | 207662556 | Hex. Flange Screw M6 X 25 |
