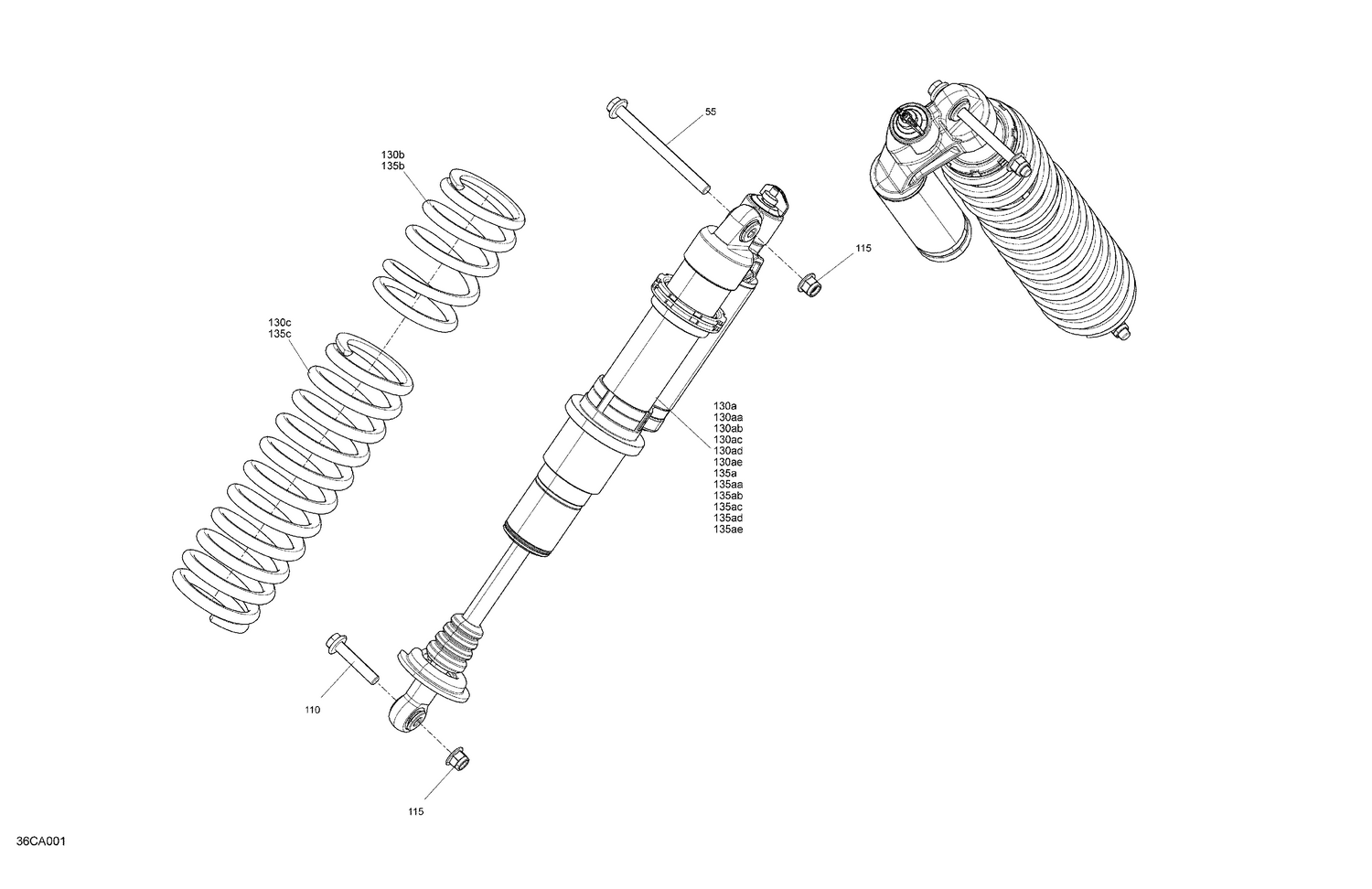

05- Suspension - Front Shocks - DS
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250000861 | Flange Screw M12 X 145 |
| 110 | 250000857 | Flange Screw M12 X 60 |
| 115 | 233221466 | Elastic Flange Nut M12 |
| 130a | 706203243 | LH Front Shock |
| 130aa | 715900337 | Spherical Bearing |
| 130ab | 706004078 | Ball Joint This part replaces 715900482. |
| 130ac | 715900338 | O-Ring Bushing |
| 130ad | 715900480 | Circlip |
| 130ae | 715900481 | Reducer |
| 130b | 706203322 | Gulfstream Blue Front Spring |
| 130c | 706203323 | Gulfstream Blue Front Spring |
| 135a | 706203244 | RH Front Shock |
| 135aa | 715900337 | Spherical Bearing |
| 135ab | 706004078 | Ball Joint This part replaces 715900482. |
| 135ac | 715900338 | O-Ring Bushing |
| 135ad | 715900480 | Circlip |
| 135ae | 715900481 | Reducer |
| 135b | 706203322 | Gulfstream Blue Front Spring |
