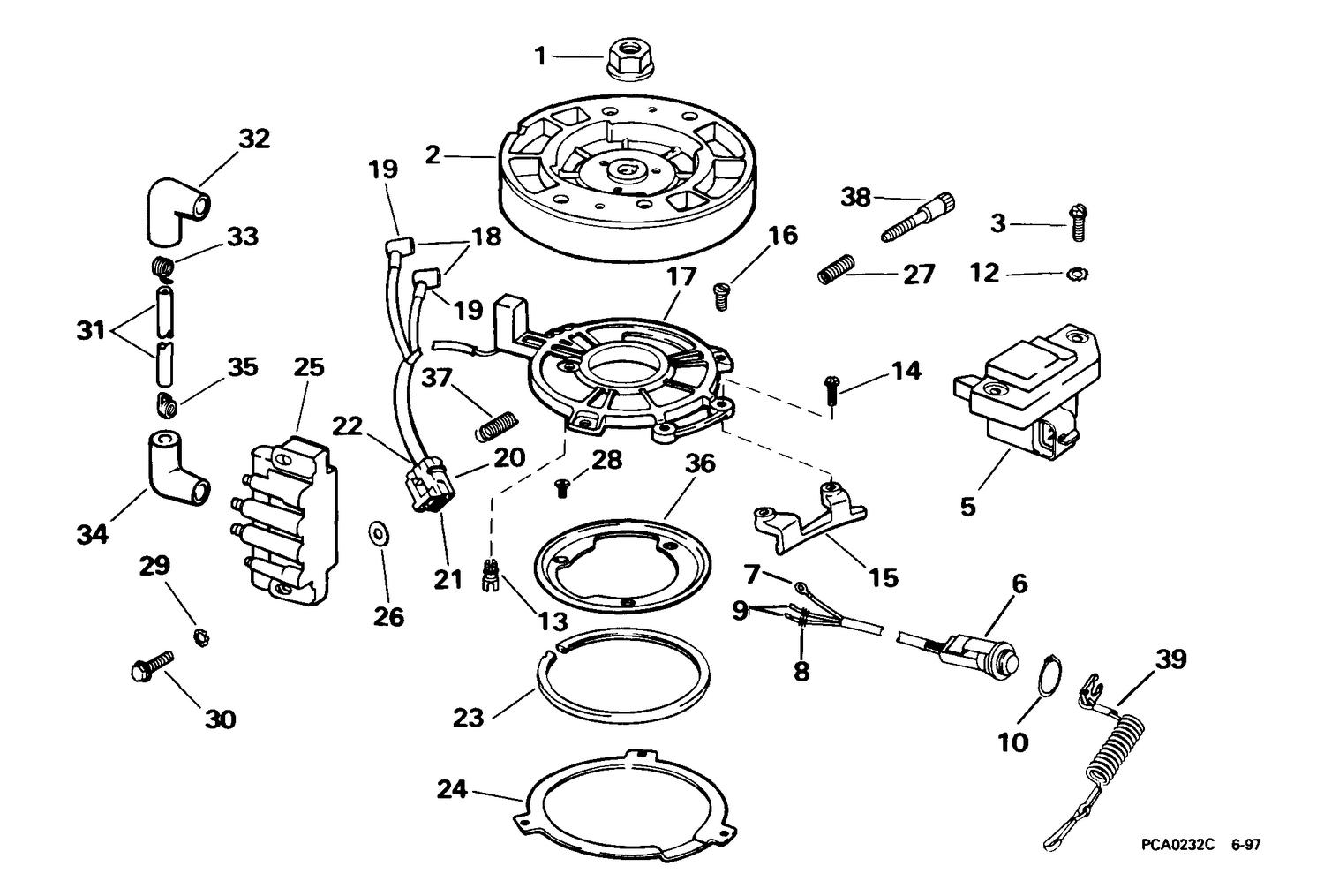

| Ref | Part Number | Description |
|---|
| 2 |
0583840 |
FLYWHEEL & HUB ASSEMBLY |
| 5 |
0584243 |
IGNITION MODULE |
| 6 |
0439154 |
STOP SWITCH ASSY. |
| 10 |
0344266 |
RETAINING RING, Stop switch to cover |
| 10a |
510006721 |
Seat Base |
| 10b |
510007017 |
Front Foam Seat |
| 10c |
510007669 |
Driver Seat Cover |
| 13 |
0341304 |
RETAINER, Cable to base |
| 14 |
0124880 |
SCREW, Bracket, timing pointer |
| 15 |
0344968 |
THROTTLE CAM ASSY. |
| 15b |
293450268 |
Insert M5 X 0.8 |
| 17 |
0584194 |
TIMER BASE & SENSOR ASSEMBLY |
| 23 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 24 |
0336392 |
RETAINER, Support plate to timer base plate |
| 25 |
0583740 |
COIL Assy |
| 26 |
0329176 |
FIBER WASHER, Ignition coil |
| 27 |
0336280 |
SPRING, Screw |
| 28 |
0332070 |
SCREW, Retaining plate |
| 30 |
0328726 |
SCREW (Use existing coil screw) |
| 30 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 31 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 36 |
0335890 |
SUPPORT PLATE |
| 37 |
0340005 |
SPRING, Timer base to cyl. |
| 38 |
0336279 |
SCREW, Idle adjustment |
| 80b |
293830188 |
Seal, 1PC = 3M |
| 80c |
269502449 |
Latch |
| 80d |
511001274 |
Box Cover |
| 80f |
510006789 |
Access Cover |
| 80h |
250000724 |
Torx Screw M5 X 20 |
| 80k |
293750092 |
Retaining Cable |
