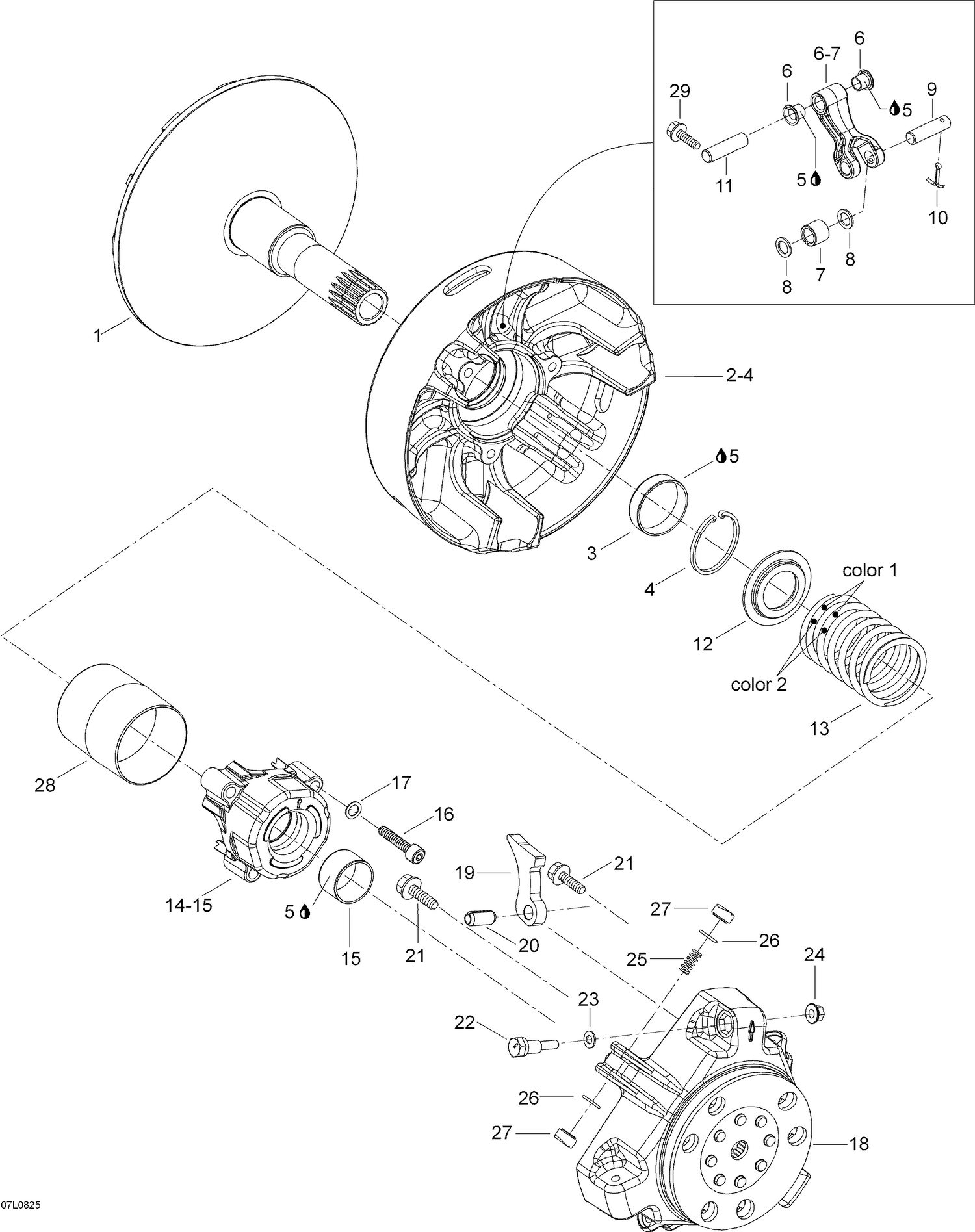

05- Drive Pulley
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y This part replaces 417222294. |
| 3 | 417222758 | Bushing Outer Half This part replaces 417006900. |
| 4 | 293370037 | Circlip |
| 5 | 413703100 | Loctite 609 |
| 6 | Not | Available As Spare Part - Flange bushing |
| 7 | 417222947 | Roller This part replaces 417003900. |
| 8 | 417004302 | Thrust washer |
| 9 | 417004308 | Pin |
| 10 | 250400060 | Cotter Pin This part replaces 732958001. |
| 11 | 417223164 | Lever Axle This part replaces 417009202. |
| 12 | 417222312 | Spring seat |
| 13 | 415015400 | Spring, Purble/green |
| 15 | 417009204 | Spring cover bushing |
| 16 | 205084044 | Socket head screw M6 x 40 |
| 17 | 250200009 | Washer |
| 18 | 417222213 | Gouvernor cup ass'y |
| 19 | 417222596 | RAMP 410 - Call your local BRP dealership |
| 20 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 21 | 250000418 | Flanged Hex. Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 22 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership |
| 23 | 417005600 | Washer |
| 24 | 233061414 | Locking nut M6 |
| 25 | 417005700 | Spring |
| 26 | 732401030 | O-Ring |
| 27 | 417223021 | Slider Shoe This part replaces 417005800. |
| 28 | 417009205 | Protector |
